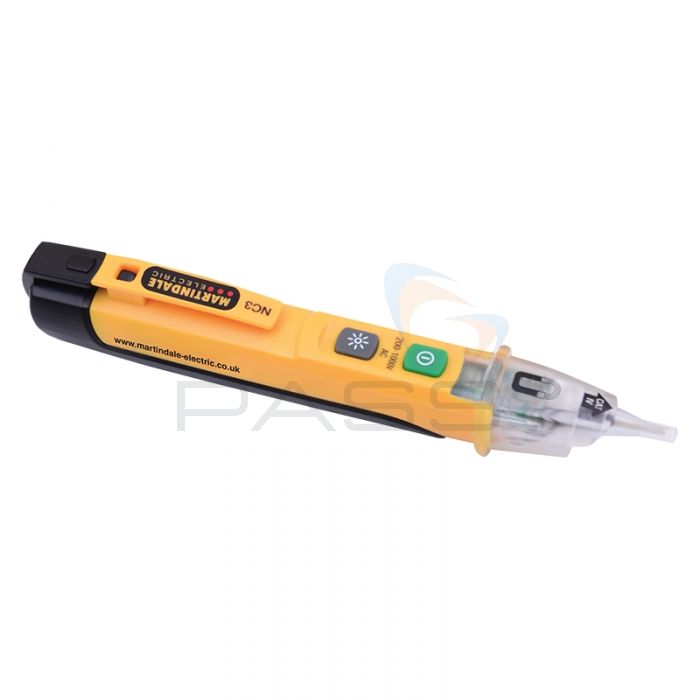

Martindale NC3 Non-contact Voltage and Magnetic Field Tester
- Detect AC voltages and magnetic fields
- Red LED and buzzer indicate the presence of a voltage between 200V and 1000V AC
- Yellow LED indicates the presence of a magnetic field
SKU
MARNC3
MPN
NC3
The Martindale NC3 Non-contact Voltage and Magnetic Field Tester replaces the Martindale VT3 Non-contact Voltage & Magnetic Indicator.
The Martindale NC3 Non-contact Voltage and Magnetic Field Tester can be used to detect AC voltages and magnetic fields. When a magnetic field is detected the clear tip of the Martindale NC3 Non-contact Voltage and Magnetic Field Tester will be illuminated by a yellow LED; detection of AC voltage is indicated by a red LED and a buzzer.
The Martindale NC3 Non-contact Voltage and Magnetic Field Tester can detect voltages between 200V and 1000V. It can also be used to test relays and solenoid valves without dismantling the equipment; as such, the Martindale NC3 Non-contact Voltage and Magnetic Field Tester can be used to troubleshoot and service control equipment in process industries, energy, transportation and pneumatic and hydraulic control systems.
Also expanding the Martindale NC3 Non-contact Voltage and Magnetic Field Tester’s scope-for-use is its extended probe which facilitates easy access to difficult-to-reach places and its LED torch which enables inspections in areas with low light.
Other practical features present on the Martindale NC3 Non-contact Voltage and Magnetic Field Tester are an Auto Power Off function, recessed ‘On’ button and a low battery indicator. All these features are designed to prolong the Martindale NC3 Non-contact Voltage and Magnetic Field Tester’s battery life thereby preserving its longevity.
The Martindale NC3 Non-contact Voltage and Magnetic Field Tester is a dual capability, simple-to-use and ergonomic voltage and magnetic field indicator.
Martindale NC3 Non-contact Voltage and Magnetic Field Tester Key Features
- Detect AC voltages and magnetic fields
- The clear tip is illuminated by a yellow LED when a magnetic field is detected
- The clear tip is illuminated by a red LED when a voltage is detected
- Buzzer also indicates the presence of voltage
- Detects AC voltages between 200V and 1000V
- Test relays and solenoid valves without dismantling the equipment
- Troubleshoot and service control equipment in process industries, energy, transportation and pneumatic and hydraulic systems
- Extended probe for accessing difficult-to-reach places
- Integrated LED torch
- Auto Power Off
- Recessed ‘On’ button
- Low battery indicator
- A dual capability, simple-to-use and ergonomic voltage and magnetic field indicator
What’s Included?
- Martindale NC3 Non-contact Voltage and Magnetic Field Tester
£20.59
£24.71 inc vat
Stock Due:
Typically 1-6 Days
Technical Information
Specification
Martindale NC-Series Non-contact Voltage & Solenoid Testers Comparison Chart
| NC1 | NC2 | NC3 | NC4 | |
|---|---|---|---|---|
| AC Voltage Range | - | 200-1000V | 200-1000V |
12-1000V 50-1000V |
| Frequency Range | - | 40-400Hz | 40-400Hz | 40-400Hz |
| Magnetic Field Detection | >10mT | - | >10mT | - |
| LED Indication | Yellow LED | Red LED | Yellow/ Red LED | Red LED |
| Audible Indication | Yes | Yes | Yes | Yes |
| Power on Pulse LED | Yes | Yes | Yes | Yes |
| Low Battery Indication | Yes | Yes | Yes | Yes |
| Auto Power Off | Yes | - | Yes | Yes |
| LED Torch | Yes | Yes | Yes | Yes |
Martindale NC-Series Non-contact Voltage & Solenoid Testers Technical Specifications
| NC1 | NC2 | NC3 | NC4 | |
|---|---|---|---|---|
| Electrical | ||||
| Maximum voltage | - | 1000V AC rms | ||
| Voltage sensitivity range | - | 200 to 1000V AC rms | 200 to 1000V AC rms |
12 to 1000V AC rms 50 to 1000V AC rms (default range) |
| Frequency range | - | 40 to 400Hz | ||
| Magnetic | ||||
| Magnetic field sensitivity | >10mT | - | >10mT | - |
| Environmental | ||||
| Temperature & Humidity (Operating & Storage) | 0°C to 40°C ≤ 80% R.H. | |||
| Altitude | up to 2000m | |||
| Pollution Degree | 2 | |||
| General | ||||
| Power | 2 x 1.5V AAA alkaline batteries (IEC LR03, NEDA 24A) | |||
| Dimensions | 158(L) x 20(W) x 27(D) | |||
| Weight | 55g | |||
| Safety | ||||
| Conforms to | BS EN 61010-1:2010 CAT IV 1000V Class II, Double insulation | |||
| IP Rating | IP40 to BS EN 60529 | |||
| EMC | ||||
| Conforms to | BS EN 31326-1 | |||
Document Downloads
Martindale NC Series Non-Contact Voltage & Solenoid Testers
Martindale NC-Series Non-contact Voltage & Solenoid Testers - Datasheet
Martindale NC3 Non-contact Voltage and Magnetic Field Tester - Instruction Manual
