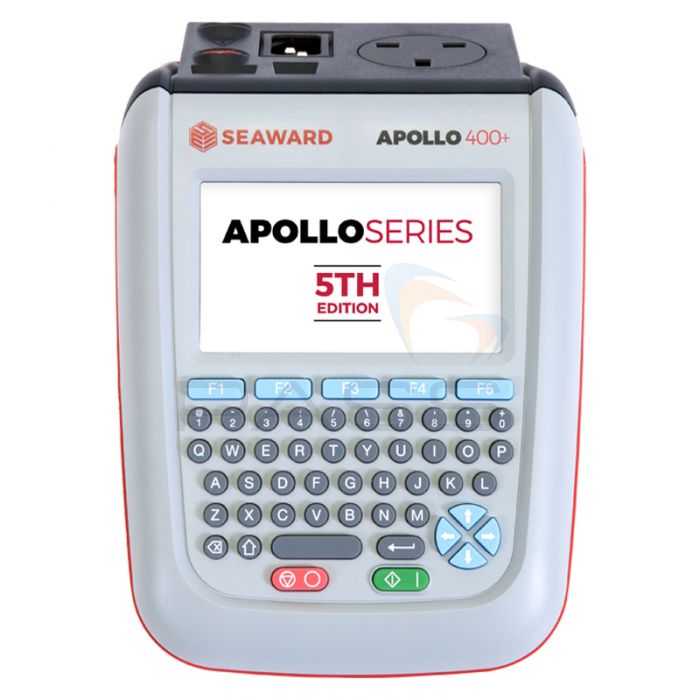

Seaward Apollo 400+ PAT Tester - 5th Edition Compliant
The 400+ provides a wide range of electrical safety tests suitable for any workplace testing requirements and ensures compliance with the IET 5th Edition Code of Practice as well as point-to-point testing of fixed appliances. (Requires additional accessory). Seawards Apollo 400+ has the ability to store up to 2000 records in its internal memory and is ideal for any carrying out mid-volume PAT Testing.
Testing Capabilities
- Low current earth continuity test
- Point-to-point testing (earth continuity and insulation resistance)*
- Insulation resistance test
- IEC lead test
- Protective conductor current test
- Touch current test
- Load power/current test
- Alternative leakage current test
- RCD test
- Power socket test
- Pass/Fail limit of 5mA for all protective & touch leakage tests in line with 5th edition regulations
- New Test sequence for Class 2 FE equipment
*For point-to-point testing, optional Accessory is required.
Hardware
The Apollo 400+ features an interchangeable rechargeable battery, meaning reduced downtime if you have a large number of appliances to test.The tester is supplied with an additional wiring harness and removable battery.
Firmware
The Apollo 400+ has an improved interface and has been designed to work with the user to make testing easier and simpler than ever.
Firmware features:
- New user permissions for Bluetooth
- Delete unwanted results
- Improved data view – Allows the user to sort data and can filter by a number of methods including PASS/Fail status
- A more advanced search function
- Automatically print test results option added to the ‘After test’ option
- ‘Worst’ or ‘Last’ has been added as an option to the leakage test
- Delete items from the predictive drop-down lists
- USB on-the-go technology means you can download directly to an Android device
- Name downloaded files with unique identifiers to find them easier
- Addition of a socket outlet test which measures main voltage and outlet wiring polarity
- The asset ID is now displayed on all test screens allowing you to keep track of what you are currently testing
- Review step – Check test details before making final comments
The accessories that come supplied with the tester have also been improved; the test leads now feature a stronger PVC insulation and sturdier probes for more demanding usage.
Software
The Apollo 400+ is compatible with the new PAT guard 3.4 which now includes Time Manager (Software sold separately).
Key Features
- Onboard storage for up to 2,000 appliance records
- Safety tests which ensure compliance with the IET 5th Edition Code of Practice
- Interchangeable rechargeable battery
- Create up to 25 user configurable electrical test and visual inspection sequences
- Point to point measurement (Rpe & IR) - needs an optional accessory
- Bluetooth, Scanner and Printer compatible
- Remote data transfer from field to the office
- High definition colour display
- Suitable for mid-volume PAT Testing
- Improved user interface for intuitive functionality and ease of use
- Full QWERTY Keyboard
- Easy to use - Plug & Play test sequences
Videos
Overview
Whats Included?
- Apollo 400+
- Red Test Lead 1.2m with Alligator Clip
- IEC Extension Lead, 0.5m
- Black Mains Lead
- USB Download Lead
- UKAS Calibration Certificate
- Quick Start Guide
Seaward Apollo Comparison
Which Seaward Apollo PAT Tester is right for you? See the differences between testing capabilities below.
General Features | Seaward Apollo 400+ | Seaward Apollo 500+ | Seaward Apollo 600+ |
---|---|---|---|
5th Edition Compliant | ✔ | ✔ | ✔ |
BSEN 50699 Compliant | ✔ | ✔ | ✔ |
Battery & mains powered | ✔ | ✔ | ✔ |
Colour Screen & QWERTY keypad | ✔ | ✔ | ✔ |
Large internal memory | 2000 records | 10,000 records | 50,000 records + 2000 images |
Bluetooth Scanner & printer compatible | ✔ | ✔ | ✔ |
Password controlled user accounts | - | ✔ | ✔ |
Set up multiple users with varying levels of privileges | - | ✔ | ✔ |
Clone facility to set up multiple testers | - | ✔ | ✔ |
Checkbox supplied as standard | - | ✔ | ✔ |
Test Inspection Features | Seaward Apollo 400+ | Seaward Apollo 500+ | Seaward Apollo 600+ |
Enter asset description after test using keypad or barcode scanner | ✔ | ✔ | ✔ |
Comprehensive electrical safety test features | ✔ | ✔ | ✔ |
Point to point measurement (Rpe & IR) | (Optional Accessory Required) | ✔ | ✔ |
User configurable electrical test/visual inspection sequences | 25 | 100 | 100 |
User set sites & locations | 50 | 50 | 100 |
Auto-increment asset ID | - | ✔ | ✔ |
PAT setup option to allow for custom menus | - | ✔ | ✔ |
Risk based retest period calculator | - | ✔ | ✔ |
User definable comments lines against test records | - | 4 | 4 |
Configurable checklists for any workplace test or inspection (user tests) | - | ✔ | ✔ |
On-board camera | - | - | ✔ |
Universal risk assessment | - | - | ✔ |
Health & safety certificates | - | - | ✔ |
Data Transfer Features | Seaward Apollo 400+ | Seaward Apollo 500+ | Seaward Apollo 600+ |
1D & 2D scanner connectivity | Reads 1D data only | ✔ | ✔ |
Bluetooth connectivity | ✔ | ✔ | ✔ |
Remote data transfer via mobile device | (Android Only) | (Android Only) | (Android & iOS) |
Download to PC via USB cable | ✔ | ✔ | ✔ |
Filter results to be downloaded | ✔ | ✔ | ✔ |
Select various label formats to print | 6 | 6 | 6 |
Print pass & fail labels with 1D barcode | ✔ | ✔ | ✔ |
Print pass & fail labels with 2D barcode | - | ✔ | ✔ |
Read 2D barcode labels with 2D scanner | - | ✔ | ✔ |
Add your company logo to labels (large 1D labels only) | - | ✔ | ✔ |
Upload previous results to tester for retest | - | ✔ | ✔ |
RFID reader connectivity | - | - | ✔ |
Data transfer via USB flash drive | - | - | ✔ |
- PASS Training Online Course with Exam, Pass & Fail Labels - PTPROMO7, typically £93.27
- PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £24.99
Apollo 400+ Specifications
Earth Continuity | |
---|---|
Test Current | ±200mA DC |
Display Range | 0.01 to 19.99Ω |
Pass Value | User-defined |
Insulation Resistance | |
Test Voltage | 500V/250V DC @ 1mA nominal |
Display Range | 0.01MΩ to 19.99MΩ |
Pass Value | User-defined |
IEC Lead Test | |
Test Voltage | 5V AC nominal |
Test | Live/neutral checks for o/c, s/c and crossed |
Protective Conductor Current/Load | |
Test Voltage | Supploy voltage, maximum load current 16A |
Display Ranges | 0.01mA to 19.99mA |
Pass Value | User-defined |
Touch Current | |
Test Voltage | Supply voltage, maximum load current 16A |
Display Ranges | 0.00 to 5mA |
Pass Value | User-defined |
Load Power/Current | |
Test Voltage | Supply voltage, maximum load current 16A |
Test Duration | Programmable up to a maximum of 255s depending on load. i.e max duration is reduced for high loads |
Display Range | 0.00kVA to 4.00kVA 0.00A to 16.00A |
Alternative Leakage Current | |
Test Voltage | >25V AC < 50V AC |
Display Range | 0.00mA to 19.99mA |
Pass Value | User-defined |
RCD Test | |
Test Voltage | 230V +10%, -15% |
Test Current | 30mA / 150mA rms sinusoidal |
Display Range | 0ms to 2000ms (30mA), 0ms to 40ms (150mA) |
Test Method | Internal isolation to avoid tripping distribution board RCD |
Power Socket Test | |
Voltage Range | 207 to 253V AC |
Indicates Configuration of Voltage Potential | Line potential phase to earth Line potential phase to neutral Line potential neutral to earth |
General Specifications | |
Memory Size | 2000 records |
Weight | 1.5kg |
Dimensions | 230 x 150 x 100mm |
Power Source | Mains or rechargeable battery pack |
Comparison Chart
General Features | 600+ | 500+ | 400+ |
Battery & mains powered | • | • | • |
Colour screen & QWERTY keypad | • | • | • |
Large internal memory | up to 50,000 records and 2,000 photos | up to 10,000 records | up to 2,000 records |
Bluetooth scanner & printer compatible | • | • | • |
Password controlled user accounts | • | • | |
Set up multiple user accounts with varying levels of privileges | • | • | |
Clone facility to set up multiple testers | • | • | |
Checkbox supplied as standard | • | • | |
Test Inspection Features | 600+ | 500+ | 400+ |
Auto-increment asset ID | • | • | |
PAT Setup option to allow for custom menus | • | • | |
Enter asset description after test using the keypad or barcode scanner | • | • | • |
Comprehensive electrical safety test features | • | • | • |
Point to point measurement (Rpe & IR) | • | • | Optional accessory required |
User configurable electrical test/visual inspection sequences | 100 | 100 | 25 |
User set sites & locations | 100 | 100 | 50 |
Risk-based retest period calculator | • | • | |
User definable comments lines against test records | 4 | 4 | |
Configurable checklists for any workplace test or inspection (user tests) | • | • | |
Onboard camera | • | ||
Universal risk assessment | • | ||
Health & safety certificates | • | ||
Data Transfer | 600+ | 500+ | 400+ |
1D and 2D Scanner connectivity | • | • | Reads 1D Data Only |
Read QR code (2D) labels with 2D scanner | • | • | |
RFID reader connectivity | • | • | |
Print Pass & Fail labels with 1D barcode | • | • | • |
Print Pass & Fail labels with QR code (2D) | • | • | |
Add your company logo to labels (on large 1D labels only) | • | • | |
Select from various label formats to print | 6 | 6 | 6 |
Download to PC via USB cable | • | • | • |
Data Transfer via USB flash drive | • | ||
Filter results to be downloaded | • | • | • |
Upload previous results to the tester for a retest | • | • |
