PASS AM57 10cm Vane Anemometer (Air, Humidity, Dew Point, Wet Bulb, CO2)
- Air Velocity, Air Volume, Air Temperature
- Humidity, Dew Point, Wet Bulb, CO2
- Multi-point readings and timed averages
- Optional kit available
SKU
PASS57-KIT
PASS 10cm Vane Anemometer
The PASS AM57 Vane Anemometer has an easy-to-carry handheld design, a large, backlit LCD screen, and a low battery indicator. It can measure air velocity, air volume, air temperature, relative humidity, wet bulb temperature, dew point, and carbon dioxide. Airflow cone compatibility allows for quick volume measurement making the process effortless.
Measurements & Tests
- Air velocity
- Air volume
- Temperature
- Relative Humidity
- Wet Bulb Temperature
- Dew Point
- Carbon Dioxide
This fast response and accurate anemometer can measure readings using imperial or metric units. It can also determine multi-point readings and timed averages.
Model Measurement Functions
Two models are available in the PASS range of 10cm Vane Anemometers that vary regarding their measurement capabilities.
| PASSAM53 | PASSAM57 | |
|---|---|---|
| Air Velocity | ✔ | ✔ |
| Air Volume | ✔ | ✔ |
| Air Temperature | ✔ | ✔ |
| Humidity | - | ✔ |
| Dew Point | - | ✔ |
| Wet Bulb | - | ✔ |
| CO2 | - | ✔ |
Kit Options
The PASS 10cm Vane Anemometers are available independently or as part of a kit that includes round and square airflow cones.
| PASSAM53 | PASSAM53-KIT | PASSAM57 | PASSAM57-KIT | |
|---|---|---|---|---|
| PASSAM53 Vane Anemometer | ✔ | ✔ | - | - |
| PASSAM57 Vane Anemometer | - | - | ✔ | ✔ |
| 4x AAA Batteries | ✔ | ✔ | ✔ | ✔ |
| Operation Manual | ✔ | ✔ | ✔ | ✔ |
| Hard Carry Case | ✔ | ✔ | ✔ | ✔ |
| Round Airflow Cone (Diameter: 210mm) | - | ✔ | - | ✔ |
| Square Airflow Cone (346x346mm) | - | ✔ | - | ✔ |
| Airflow Extension Stick Set | - | ✔ | - | ✔ |
Key Features
- Airflow meter designed for HVAC/R applications
- Air velocity
- Air volume
- Temperature
- Relative humidity
- Wet bulb temperature
- Dew point
- Carbon dioxide
- Multi-point readings
- Timed averages
- Multiple models available with different measurement functions
- Compatible with airflow cones
- Large, backlit LCD screen
- Metric or imperial units
- Low battery indicator
- Handheld design
- Easy to carry
- Kits with airflow cones available

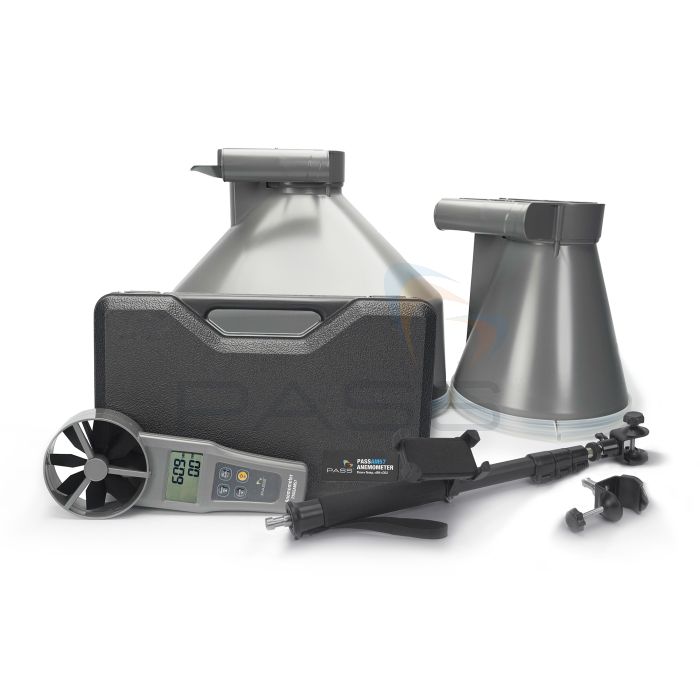

What’s Included?
| PASSAM53 | PASSAM53-KIT | PASSAM57 | PASSAM57-KIT | |
|---|---|---|---|---|
| PASSAM53 Vane Anemometer | ✔ | ✔ | - | - |
| PASSAM57 Vane Anemometer | - | - | ✔ | ✔ |
| 4x AAA Batteries | ✔ | ✔ | ✔ | ✔ |
| Operation Manual | ✔ | ✔ | ✔ | ✔ |
| Hard Carry Case | ✔ | ✔ | ✔ | ✔ |
| Round Airflow Cone (Diameter: 210mm) | - | ✔ | - | ✔ |
| Square Airflow Cone (346x346mm) | - | ✔ | - | ✔ |
| Airflow Extension Stick Set | - | ✔ | - | ✔ |
£225.00
£270.00 inc vat
2 Options in Stock:
Available Next Working Day*
Technical Information
Specification
PASS 10cm Vane Anemometer Technical Specifications
| PASSAM53 | PASSAM57 | ||
|---|---|---|---|
| Measuring Range | |||
| Air Velocity | 0.20~30.00m/s | ||
| Air Volume | 0 to 99999 m3/m | ||
| Temperature | -20.0~60.0°C (-5~140°F) | ||
| Relative Humidity | N/A | 0.1%~99.9%RH | |
| Dew Point Temp | N/A | -5.0~59.9°C | |
| Wet Bulb Temp | N/A | -20.0~59.9°C | |
| CO2 | N/A | 0~9999 ppm* |
|
| Resolution | 0.1m/s, 0.1(0~9999.9) or 1(10000~99999), 0.1°C/°F, 0.1%RH | ||
| Accuracy | |||
| Air Velocity | +/-(1.5% of reading +0.3m/s) for under 20m/s, +/-(3% of reading +0.3m/s) for above 20m/s |
||
| Temperature | ±-6°C | ||
| Relative Humidity | N/A | ±5%RH | |
| CO2 | N/A | +30ppm +5% of rdg (0-5000ppm) |
|
| CO2 Warm-up time | N/A | 30s | |
| Vane/Meter Size | Diameter:100, 269(L)x106(W)x51(H)mm | ||
| Operating Condition | 0 to 50 °C, <80%RH | ||
| Storage Condition | -10~50°C, <90%RH (avoid condensation) |
||
| Power Supply | AAA Batteries | ||
| Std. Accessories | Meter, Manual, Batteries, Case | ||
| Optional | Airflow cone set with case | ||
