Megger 1012-523 DET4TCR2 + ETK50C (Rechargeable)
Description

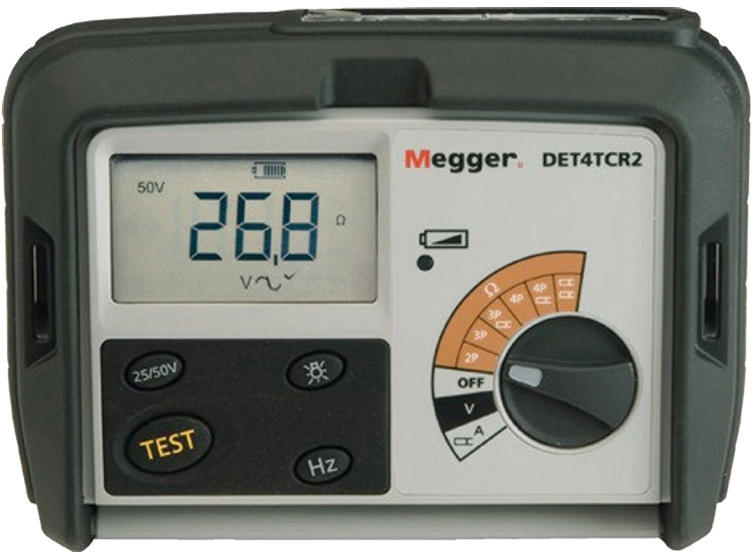

The Megger DET4TCR2 is designed for extended temperature range use with an IP54-rated enclosure making it a genuine outdoor instrument. The instrument provides all the functions required for ground system testing: variable frequency 2 pole, 3 pole, 4 pole, Attached Rod Technique (ART), stakeless, leakage current, and ground noise voltage measurement.
The instrument is easy to use with a large rotary selector switch and one-press test button, both of which permit operation with gloved hands. Unlike some instruments, the design negates the need for a shorting link when making two pole measurements. There are no hidden functions with the instrument: clearly labelled auxiliary controls are used to select the test frequency (94 Hz, 105 Hz, 111 Hz, and 128 Hz), output voltage (50 V or 25 V where local standards apply), and to switch the backlight on or off.
The clear, easy-to-read display provides excellent contrast and viewing angle making the instrument ideally suited to outdoor use. The display is backlit, extending the operational environment of the instrument to cable cellars and other dark locations.
The instrument offers a wide measurement range of 0.01 Ω a to 200 kΩ, ground noise voltage measurement from 1 V to 100 V, and ground current from 1 mA to 20 A. Accurate results can be obtained in electrically noisy environments since the instrument is capable of rejecting noise voltages of 40 V peak to peak and the user can select different test frequencies to minimise the effect of interference.
The DET4TCR2 is powered by rechargeable AA cells. The battery charger is built in and the instrument is supplied with an AC/DC adaptor, the battery status is displayed using a bar graph.
The Megger DET4TCR2 complies with stringent safety standards and is rated to 100 V CAT IV. They also have selectable 25 V or 50 V output for compliance with IEC 61557-5.

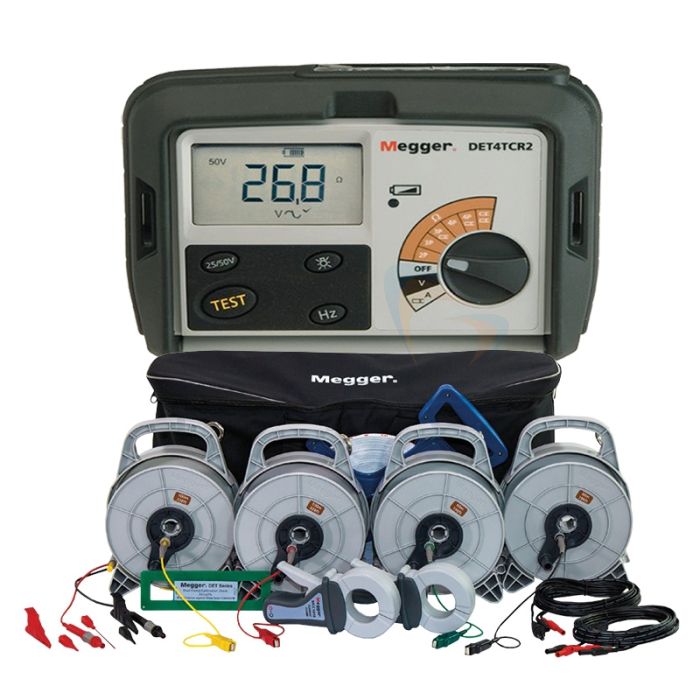

The Megger 1012-523 delivers the DET4TCR2 and the ETK50C.
Megger DET4TCR2 Key Features
- 2, 3, and, 4 wire testing without the use of shorting links
- C and P stake automatic checking
- Automatic noise evaluation with noise rejection at 40V peak to peak
- No disconnect testing (ART) with the use of MCC CLAMP
- Stakeless testing with the use of MCC CLAMP and MVC CLAMP
- Resistance range of 0.01 to 200kΩ
- Easy to use
- Protective carry case built around the tester
- IP54 ingress protection against dust and water
- Runs on 8 x rechargeable batteries
What's Included?

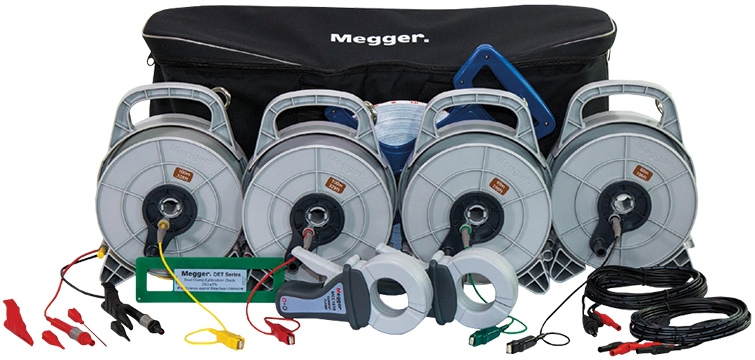

- Megger DET4TCR2 Earth Tester
- 50m Earth Test Cables
- Spikes
- Clamps
- Hard Carry Case
- Stake and Wire Kit (15m, 10m, 10m, 3m)
- Right-angle Terminal Adaptors (to connect bare wires to terminals)
- Calibration Certificate
- Batteries
Tech Specs
Megger DET4TCR2 Technical Specifications
| Ingress Protection | IP54 |
| C Stake, P Stake, and Noise Checks | Automatic |
| Noise Rejection | 40V peak to peak |
| 2 Wire, 3 Wire, and 4 Wire tests | Yes, no shorting links are required |
| No Disconnect Testing (ART) | Yes, with MCC CLAMP |
| Stakeless Measurement | Yes, with MCC CLAMP and MVC CLAMP |
| Instrument Output | Voltage: ±25 V or ±50 V at 94 Hz, 105 Hz, 111 Hz, and 128 Hz Current: 4.5 mA or 0.45 mA or 0.045 mA |
| Ground Current Range with Clamp | 0.5 mA to 19.9 A |
| Ground Current Accuracy | 5% ±3 digits |
| Ground Voltage Range | 0 to 100V AC |
| Ground Voltage Accuracy | 2% ±2 V |
| Resistance Ranges | 2, 3, 4 pole: 0.01 Ω to 200 kΩ ART: 0.01 Ω to 200 kΩ Stakeless: 0.01 Ω to 200 Ω |
| Resistance Accuracy | 2P measurements: 2% ±3 digits 3P measurements: 2% ±3 digits 4P measurements: 2% ±3 digits ART measurements: 5% ±3 digits Stakeless measurements: 7% ±3 digits |
| Maximum Probe Resistance | Rp limit: 200 kΩ (50 V output voltage) Rc limit: 200 kΩ (50 V output voltage) Limits reduced to 100 kΩ for 25 V output voltage Limits reduced to 5 kΩ for 0.01 Ω resolution |
| Display | 3½ digit high contrast liquid crystal, backlit |
| Battery Type | 8 off AA (LR6) NiMH rechargeable cells |
| Operating Temperature Range | -15 °C to +55 °C / 5 °F to 131 °F |
| Storage Temperature Range | -40 °C to +70 °C / -40 °F to 158 °F |
| Safety | Complies with the requirements of IEC 61010-1 100V CAT IV between terminal pairs* |
| EMC | Following IEC61326-1 |
| Standards Compliance | Complies with the requirements of KEMA K85B Complies with the following parts of EN61557, “Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. Equipment for testing, measuring or monitoring of protective measures”. Part 1 - General requirements, Part 5 - Resistance to earth |
| Dimensions | 203 mm x 148 mm x 78 mm (8 in x 5.8 in x 3 in) |
| Weight | 1kg (2.2lb) |
*The CAT IV 100 V rating is dependant on the use of a lead set of at least this rating, for example, the optional two-wire lead set part number 1001-858.
