Megger DET4TCR2 Rechargeable Earth Tester
- ART (Attached Rod Technique) capability
- Multiple, user selectable test frequencies
- Includes leads, stakes, calibration certificate and rugged carry case
SKU
1000-346
MPN
1000-346
This instrument is a rechargeable version of Megger's DET4TC2 Earth tester and contains all of the features found on the standard battery device such as 2, 3 and 4 point testing and attached rod technique via the use of an optional clamp.
The DET4TCR2's interface has been designed to be as simple to use as possible. All you have to do is connect up the necessary test leads, use the rotary dial to select which test procedure you want, adjust the frequency and the voltage using labelled buttons then press the large test button. You can also toggle the backlight of the LCD display on off for use in darkened conditions.
Other included features of the DET4TCR2 include the ability to automatically evaluate the connection status of C stake and P stakes. When this test is performed it will display the connection/condition of each connected stake on the LCD display for easy referencing. The tester also features automatic noise checking, with rejection from 40V peak to peak.
The Megger DET4TCR2 also can test resistance with range of 0.01 to 200KΩ, runs on 8 x rechargeable batteries and is in accordance with IEC61326-1.
Megger DET4TCR2 Earth Tester Key Features
- Automatic C and P stake checks
- Automatic noise check with rejection at 40V peak to peak
- 2 wire, 3 wire and 4 wire testing with no shorting links required
- Stakeless measurement possible via optional ICLAMP or VCLAMP
- No disconnect testing (ART) through use of optional ICLAMP
- Ground current measurement range of 0.5mA to 19.9A
- Ground voltage range of 0 to 100V AC
- IP54 ingress protection

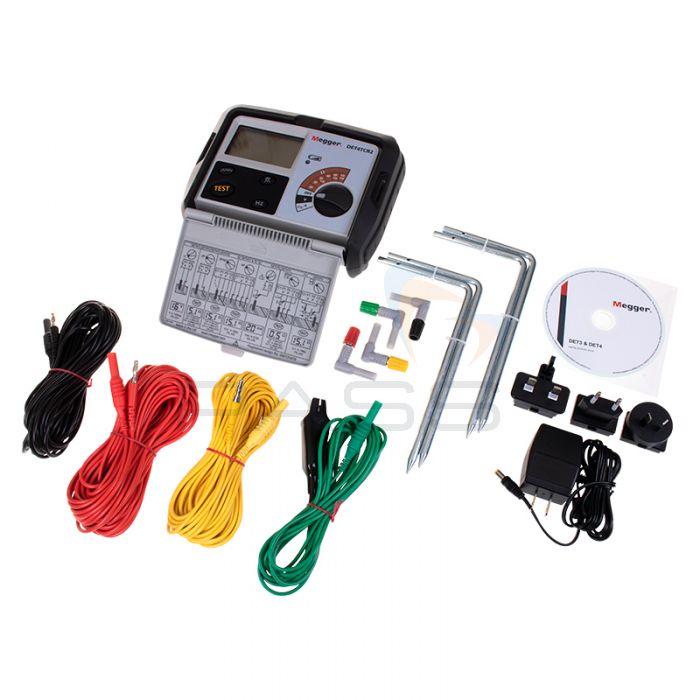

Full List of Products Included
- Megger DET4TCR2 Earth Tester
- Hard Carry Case
- Stake and Wire Kit (15m, 10, 10m, 3m)
- External AC/DC Charger
- Calibrate Certificate
- Rechargeable Batteries
Accessories
There are a number of accessories available for the Megger DET4TCR2 Rechargeable Earth Tester. For further information regarding the products below, please contact our sales team.
| Our SKU | Megger's Part Number | Product |
| ICLAMP | 1001-012 | ICLAMP 1000A AC Current Clamp |
| VCLAMP | 1001-013 | VCLAMP Voltage Clamp |
| 1010-518 | 1010-518 | MVC1010 Voltage Clamp |
| 1010-516 | 1010-516 | MCC1010 Current Clamp |
| MEGETA23 | 6220-804 | 2 Earth Spikes (200 mm, 8 mm dia.) |
| MEGETA24 | 6220-803 | RA Terminal Adaptor Set |
| 1007-003 | 1007-003 | Blow Moulded Case Catch - Pack of 10 |
| 6220-807 | 6220-807 | I Clamp Lead |
| 6220-808 | 6220-808 | V Clamp Lead |
| 6220-839 | 6220-839 | Ground Spike Assembly |
| 1000-526 | 1000-526 | 4-Terminal Lead Set - DET4TX |
| 1000-523 | 1000-523 | Spare Earth Spikes (x2) DET3TX & DET4TX |
| 1000-527 | 1000-527 | Blow Moulded Case [Small] DET3 & 4 |
| 1000-528 | 1000-528 | Blow Moulded Case [Large] DET3 & 4 |
| 1000-530 | 1000-530 | Battery AA NiMH 1.2V (x8) |
| 1000-531 | 1000-531 | Mains Charger - DET3TX & DET4TX |
| 6320-245 | 6320-245 | Professional Earth Test Kit, comprising - 4 auger spikes, 4 cable reels (2x50m and 2x30m), electrode test cable 4m, tape measure and carry case |
| 1000-524 | 1000-254 | Auger Earth Spike DET3TX & DET4TX |
| 1000-349 | 1000-349 | Cable Reel Accessory (50m Red) |
| 1000-350 | 1000-350 | Cable Reel Accessory (50m Black) |
| 1000-361 | 1000-361 | Cable Reel Accessory (30m Yellow) |
| 1000-362 | 1000-362 | Cable Reel Accessory (30m Green) |
| 1010-176 | 1010-176 | 30m Earth Test Cables & Spikes Kit |
| 1010-177 | 1010-177 | 50m Earth Test Cables & Spikes Kit |
| 1010-178 | 1010-178 | 100m Earth Test Cables & Spikes Kit |
| 1010-179 | 1010-179 | 50m Earth Test Cables, Spikes & Clamps Kit |
| 1010-180 | 1010-180 | 100m Earth Test Cables, Spikes & Clamps Kit |
| MEGETA16 | 6310-755 | ETKIT Earth Test Kit - 4 Terminal |
| MEGETA17 | 6210-160 | ETKIT3 Earth Test Kit - 3 Terminal |
| MEGETA18 | 6210-161 | ETKIT4 Earth Test Field Kit - 4 Terminal |
| MEGETA19 | 6121-119 | Lead Earth Test 50m Reel |
| AVTM25-TA | AVTM25-TA | Getting Down to Earth Booklet |
| 1000-434 | 1000-434 | Dual Calibration Checker (two-clamp measurements) |
| 1000-435 | 1000-435 | Calibration Check 25 Ohms |
| 6280-375 | 6280-375 | 12V Vehicle charger for DET4TCR2 |
| Please note that the accessories listed above and the attached datasheets are subject to change. Both were correct at the time of publication. | ||
£1,106.00
£1,327.20 inc vat
2 in Stock:
Available Next Working Day*
Technical Information
Specification
Megger DET4TCR2 Technical Specifications
| Ingress Protection | IP54 |
| C Stake, P Stake and Noise Checks | Automatic |
| Noise Rejection | 40V peak to peak |
| 2 wire, 3 wire and 4 wire tests | Yes with no shorting links required |
| No disconnect testing (ART) | Yes, with ICLAMP |
| Stakeless Measurements | Yes, with ICLAMP and VCLAMP |
| Instrument Output | Voltage: ±25 V or ±50 V at 94 Hz, 105 Hz, 111 Hz and 128 Hz Current: 4.5 mA or 0.45 mA or 0.045 mA |
| Ground Current Range with Clamp | 0.5 mA to 19.9 A |
| Ground Current Accuracy | 5% ±3 digits |
| Ground Voltage Range | 0 to 100V AC |
| Ground Voltage Accuracy | 2% ±2 V |
| Resistance Range | 0.01 Ω to 200 kΩ |
| Resistance Accuracy | 2P measurements: 2% ±3 digits 3P measurements: 2% ±3 digits 4P measurements: 2% ±3 digits ART measurements: 5% ±3 digits Stakeless measurements: 7% ±3 digits |
| Maximum Probe Resistance | Rp limit: 200 kΩ (50 V output voltage) Rc limit: 200 kΩ (50 V output voltage) Limits reduced to 100 kΩ for 25 V output voltage Limits reduced to 5 kΩ for 0.01 Ω resolution |
| Display | 31⁄2 digit high contrast liquid crystal, backlit |
| Battery Type | DET4TC2: 8 off AA (LR6) cells DET4TCR2: 8 off AA (LR6) NiMH rechargeable cells |
| Operating Temperature Range | -15 °C to +55 °C / 5 °F to 131 °F |
| Storage Temperature Range | -40 °C to +70 °C / -40 °F to 158 °F |
| Safety | Complies with the requirements of IEC 61010-1 100V CAT IV between terminal pairs |
| EMC | In accordance with IEC61326-1 |
| Standards Compliance | Complies with the requirements of KEMA K85B Complies with the following parts of EN61557, “Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. - Equipment for testing, measuring or monitoring of protective measures”. Part 1 - General requirements Part 5 - Resistance to earth |
| Dimensions | 203 mm x 148 mm x 78 mm (8 in x 5.8 in x 3 in) |
| Weight | 1kg (2.2lb) |
