Dilog SL600 Solar Thermal Testing Kit

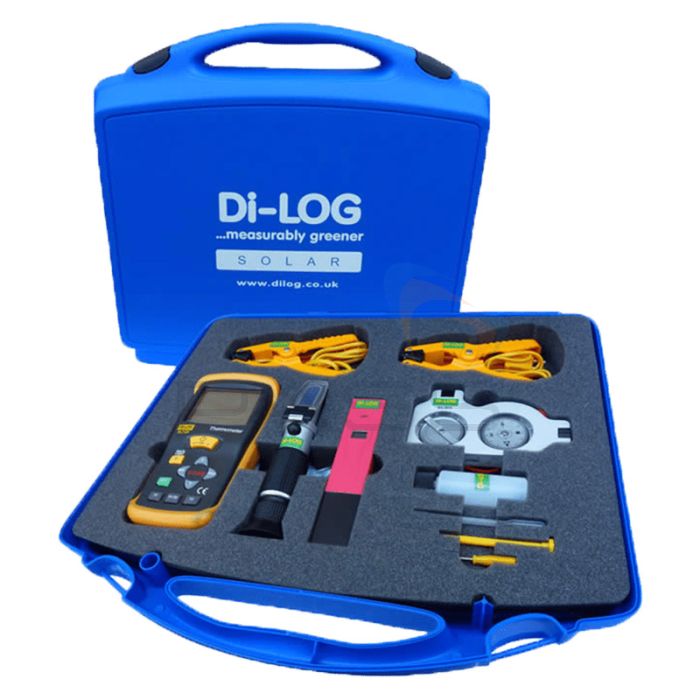

The New SL600 kit includes the Di-log DL7101 Digital Thermometer, 2 x K-type temperature pipe clamps, a digital PH Meter, the SL801 Refractometer for measuring anti-freeze, & the SL911 Compass Inclinometer, packaged in a secure carry case.

The SL600 offers you a fantastic all-around Solar Thermal test kit to assist with the installation and servicing of thermal hot water systems.

Features

• DL7101 - Temperature measurement to 1000°C or 2000°F
• Pipe Clamps -40 to 100°C or -40 to 212°F
• PH measurement 0.0 to 14.0 pH
• SL911 Compass Inclinometer 360° Compass & 90° Inclinometer
• SL801 Refractometer Ethylene Glycol 1.15 to 1.30
• PH Buffer Powder for re-calibration

What's Included?

DL7101 - Digital Thermometer

Dual input contact thermometer offering fast and accurate temperature indication. K-type single or dual input with differential temperature. For more information please click here.



• Displays maximum reading and data hold
• Large backlit LCD
• T1-T2 mode for differential temperature
• Accuracy to 0.5 % on °C and °F settings

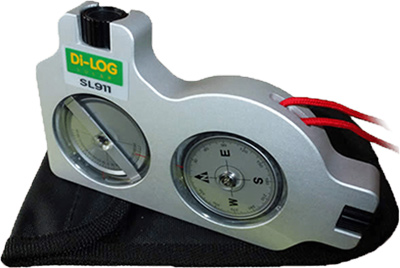

SL911 - Compass Inclinometer

The SL911 allows the solar installer to be much more exact with a line of sight for roof slopes and heights without the use of a ladder.

This combinational tool has a precision compass and clinometer built into one unit that is excellent for Solar PV, Solar Thermal, and surveyors. The casing is a solid one-piece unit equipped with a measurement card & special bearings, which are hermetically sealed in a dampening liquid. This helps to prevent shock and allows a quick and accurate measurement.

• Accurate 360° Compass with back Bearing measurement
• 90° Clinometer for roof angle
• Percentage increase and decrease to measure building height
• Compass azimuth with reverse scale to prevent error
• Adjustable eyepieces

SL801 - Refractometer

The SL801 allows you to measure the Glyco Ethelene content of the solar liquid, thus preventing the system from freezing.

• Correcting screw for adjustment of null
• Adjustable eyepiece
• Supplied with a small suction tube
• Small screwdriver to adjust null

pH Meter - Digital pH Meter

The small hand-held PH meter enables you to measure the PH level of the fluid in the Solar Thermal system.

• Correcting screw for adjustment of pH calibration
• Range from 0.0 to 14.0pH
• Small screwdriver to adjust null

Two K-type temperature pipe clamps are also included and all items are stored in a secure carry case.
