DiLog DL7101 Digital Thermometer

SKU
DL7101
Rating:
0%
(0)
Reward Points
:
85
£102.00 £85.00
Only 1 in Stock
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
DiLog DL7101 Digital Thermometer kit

The DiLog DL7101 Digital Thermometer can quickly perform both single temperature measurements and differential temperature measurements, with an accuracy of ± 1°C/±2°F.

This digital thermometer is capable of taking measurements in both degrees Fahrenheit (-58 to 2000°F) and Celsius (-50 to 1300°C) and will indicate to the user when the reading exceeds the temperature range selected.

This product offers many features allowing the user to take multiple temperature measurements. The Max Temperature mode will continually update the maximum temperature read by the thermometer, whilst the Hold mode will continue to display the digital thermometer’s current reading for ease of documentation and/or consultation.

The DiLog DL7101 Digital Thermometer comes with a 9V battery and two K- Type probes. These probes can be used to take individual readings via holding down the corresponding T1 or T2 button, alternatively they can be implemented to take differential temperature measurements. In an instance when the user wishes to take a differential measurement the DiLog DL7101 Digital Thermometer will determine this reading by subtracting the T2 temperature from the T1 temperature.

Ease-of-use, accuracy and efficiency are at the forefront of this hand held digital thermometer’s design. Its large LCD backlit display and lightweight design make this digital thermometer ideal for use in a variety of environments, whilst its auto power off function works towards protecting the user and ensuring the product’s longevity.

DiLog DL7101 Digital Thermometer Key Features

  • A hand held digital thermometer that can quickly perform single and differential temperature measurements
  • Accuracy of ± 1°C/±2°F
  • Can take measurements in °F and °C
  • Temperature ranges of  -58 to 2000°F and -50 to 1300°C
  • Indicates to the user when a reading exceeds the temperature range selected
  • Max temperature mode
  • Hold mode
  • Auto power off function
  • Large LCD backlit display
  • Lightweight
  • Both K-Type probes can be used to take individual temperature measurements
  • When taking differential measurements the DiLog DL7101 Digital Thermometer will calculate and display this reading

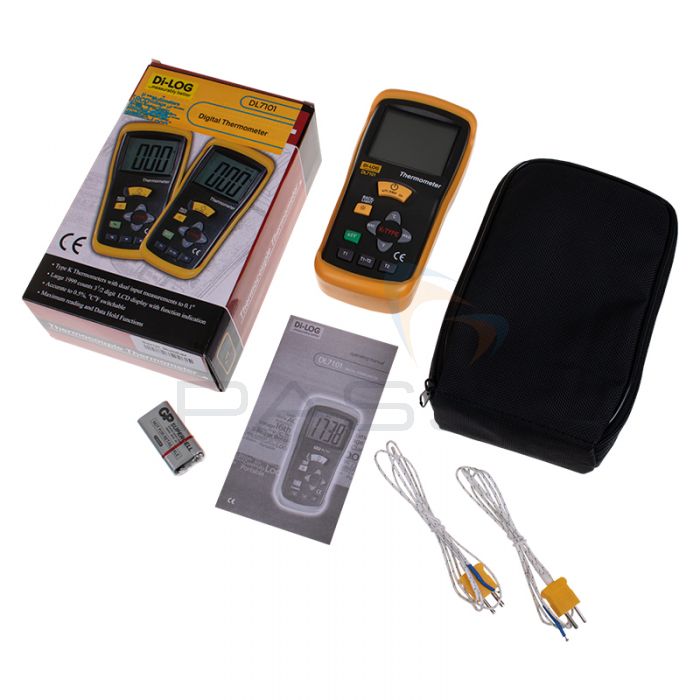

What’s Included?

  • DiLog DL7101 Digital Thermometer
  • 2 X K-Type Probes
  • Standard 9V Battery
  • 2 Year Warranty from DiLog

DiLog DL7101 Digital Thermometer

Technical Specifications

Measurement  Range Accuracy
Temperature °C -50 to 1000°C 0.5 % rdg ± 1°C
Temperature °F -58 to 2000°F ± 0.5 % ± 2°F
Input Selection 60 V DC or 24 V AC rms
Power Supply 1 x 9V battery
Dimensions 162 x 76 x 43 mm
Weight 403g
Reading Rate 2.5 times per second
Input Connection Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm, centre to centre). ‘K’ type.
Ambient Operating Range 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 0% to 80% (0°C to 35°C) (32°F to 95 °F) 0% to 70% (35°C to 50°C) (95°F to 122°F)
Display 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
DiLog DL7101 Digital Thermometer - User Manual Manuals & Guides DiLog DL7101 Digital Thermometer - Specsheet Technical Specifications
