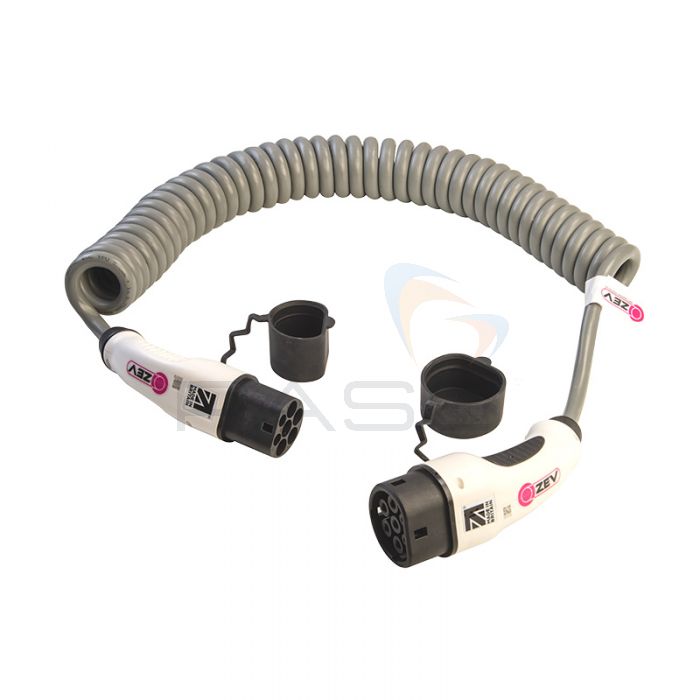

ZEV Type2-Type1, 32A, Single Phase EV Charging Cable, Coiled, Discreet Grey, 5m or 10m
- Electric Vehicle Charging Cables
- Available in 5m or 10m cable length
- Manufactured within ISO9001/2015 Quality Standards
SKU
T2-T1-32-1P-C-DG
The ZEV Type2-Type1, 32A, Single Phase EV Charging Cables are designed to sit above the ground. The cables are coiled, sheathed in dirt-resistant polyurethane, and come in a discreet grey colour. The three power cores are safely insulated to continuously protect current flow. Suitable for electric vehicles with a Type1 charging inlet for connecting with UK and European Type2 AC charging points. Available in 5m or 10m cable lengths.
Product Ranges
- T2-T1-32-1P-C-DG-5M Type2-Type1, 32A, Single Phase, Coiled, Discreet Grey, 5m
- T2-T1-32-1P-C-DG-10M Type2-Type1, 32A, Single Phase, Coiled, Discreet Grey, 10m
Product Features
- Highly flexible
- Lightweight design
- Dirt and heat resistant
- Compliant with all battery, electric and plug-in, hybrid vehicles
- Tethered cables compliant with electric vehicles with a Type2 inlet
- Complete cables compliant with a home, workplace, and public charge points with Type2 sockets
Product Specification
- Conductor Material: Plain Copper
- Conductor Class: According to BS EN 60228
- Conductor Size mm2: 3 × 6.00mm2 & 1 × 0.75mm2
- Number of Cores: 4
- Core Insulation: TPR
- Outer Sheath: Polyurethane EVM-1P
- Sheath Colour: Grey
- Cable Diameter mm: 14.00
- Bend Radius mm: 25.00
- Temperature Range: -40° - +90°
- Rated Voltage & AMPS: 450/750V 32
- AC Charging Rate: Up to 7.2kW
