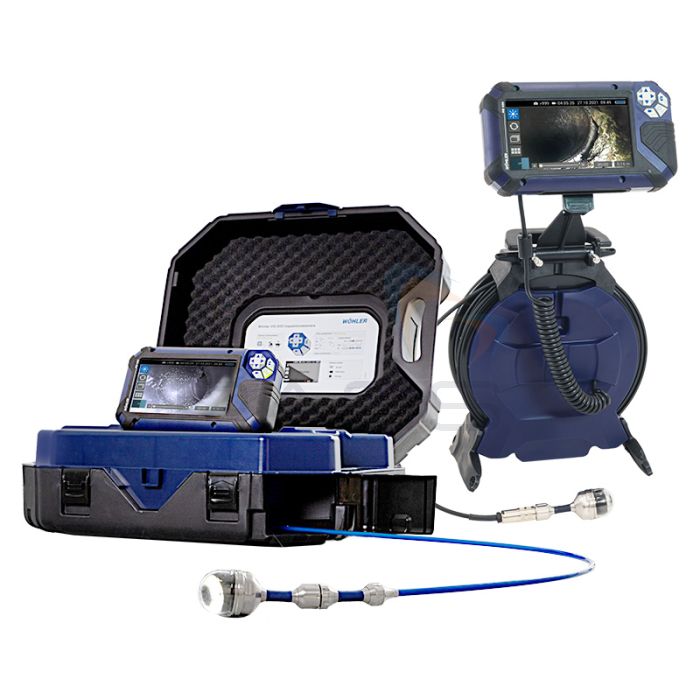

Wöhler WO12141 VIS 500 Inspection Camera INT with Cable Reel 20m, Ø40 mm

To get a clear view, rely on an inspection camera from the specialist: The Wöhler VIS 500 inspection camera offers the tried and tested case system with brand new technology - and this allows you to proceed even more purposefully during your operations. Thanks to the exchangeable camera heads, you are perfectly equipped for all operations.

You simply control the pan and tilt the camera head via a keypad, so that you have everything in view even in dark pipes. The monitor then provides you with sharp and true-colour images on which you can see every detail exactly. This means you no longer spend your time in assumptions or misjudgments. Instead, you plan your operation based on your video inspection. You can choose to store images and videos in the camera's large internal memory or on a USB stick.

We know your everyday life and have thought of everything: You don't have to be squeamish with the Wöhler VIS 500. If the camera is dirty, take the rod and pole out of the case in one easy step. Then spray the case and reel with water. It couldn't be easier.

Sharp picture, clear menu structure, and a firm grip in the hand. The colour camera head can be swiveled from left to right by 180° and rotated by 360°. The glare shield can be stored in the case lid and plugged directly into the monitor when needed. The monitor then provides you with high-resolution and true-colour images on which you can see every detail exactly.

With the Wöhler VIS 500 inspection camera, you are perfectly equipped for the future The camera's WLAN interface makes it possible to view images and videos in the large camera display and simultaneously in the smartphone or tablet display. This way, several people can follow the inspection live at the same time, even if they have positioned themselves quite differently.

The image files are transferred from the camera to the app via WLAN and after the inspection, you can create an illustrated report in just a few minutes, which you can send directly from your smartphone to your office address, the customer, or the insurance company with one click.

Key Features

• Modular system, one monitor, many applications through upgrade sets
• Intuitive handling with the uniform operating concept of the Wöhler VIS series
• Position and angle indication of the camera head in the display
• All-round view, waterproof rotatable and pan and tilt camera head Ø 40 mm
• Bright illumination with camera LEDs and optional additional lighting
• Sound and voice recording via headset
• Storage of photos and videos, documentation on-site for you and your customers
• Pictures, high-resolution images
• Home function for aligning the camera head in a straight position - display parallel to the pipe
• Easy cleaning, a double-shell case with a separate compartment for the camera rod for cleaning with water
• Localisation, the integrated transmitter in the camera head enables exact localisation of the camera head
• Wöhler video inspection app - operation, image view, and report
• Mains-independent operation, due to lithium-ion battery with up to 6 hours working time
• Storage - direct storage of photos and videos on the integrated memory (4 GB) or a USB stick

What's Included?

• 1 x Wöhler VIS 500 Monitor solo EN
• 1 x Wöhler Camera Head Ø40 mm detachable, pan and tilt
• 1 x Aluminium Case XXL 48 x 27 x 48 cm
• 1 x Cable reel with 20 m camera cable with digital meter counter
• 1 x Plastic dome for VIS 3xx camera head
