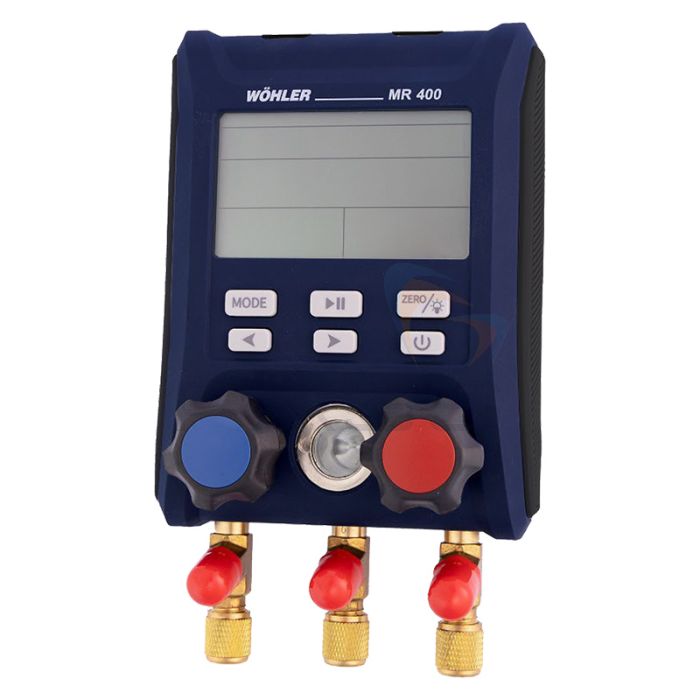

The Wöhler MR 400 Refrigerant Manifold can be used for all common refrigerants and offers effortless handling thanks to practical accessories such as lockable connection hoses with ball valves.
The versatile application possibilities include maintenance work on refrigeration systems and heat pumps, determining the operating states of refrigerants in refrigerant circuits, displaying high and low pressure, measuring superheating and subcooling as well as vacuum measurements. The digital display allows you to keep an eye on all measured values.
Thanks to the high-quality carrying case, you always have your equipment at hand. Trust the precision of the Wöhler MR 400 Refrigerant Manifold to optimise your work processes and take accurate measurements.
Key Features
- Robust housing
- Digital display, giving an easy reading of the weight
- Non-slip rubberised surface for safe working
- Can be used with all common refrigerants
- Easy handling due to practical accessories, for example, lockable connection hoses (ball valves)
- Easy to transport
- High-quality case
- Wide range of applications due to the various measurement options
What's Included?
- Wöhler MR 400 Refrigerant Manifold
- 3 x refrigerant hoses, each with Schrader valve ¼‘‘ SAE, closable with ball valve
- 2 x temperature clamps
- 3 x AA batteries 1.5 V
- Case
Manuals & Guides
Pressure - Selectable Units | kPa, MPa, bar, Psi, kg/cm2 Default setting: bar |
---|---|
Pressure - Measuring Range | -1 up to 55 bar |
Pressure - Accuracy | ± 0.5 % of the full-scale value |
Pressure - Resolution | 0.03 bar |
Temperature - Selectable Units | °C , °F |
Temperature - Measuring Range | -40 °C to 150°C |
Temperature - Accuracy | ± 0.5°C |
Temperature - Resolution | 0.1°C |
Refrigerant | 88 refrigerants selectable in the unit R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134A R14 R141b R142b R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401b R401C R402A R402b R403b R404A R406A R407A R407b R407C R407d R407F R408A R409A R410A R410b R412A R413A R414A R414b R416A R417A R417C R420A R421A R421b R422A R422b R422C R422d R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452b R453A R454A R454b R455A R458A R500 R502 R503 R507A R508A R508b R514A R600 R600A R601A R718 R744 |
Connections - Pressure | Schrader ¼ '' SAE |
Connections - Temperature | 6-pole temperature plug |
Power Supply | 3 AA batteries 1.5 V |
Battery Life | Approx. 200 h without backlight |
Dimensions | 8 x 113 x 68 mm |
Weight | Approx. 1 kg |
Operating Temperature | -10 to 50 °C |
Storage Temperature | -20 to 60 °C |
Reviews
SKU | WO11367 |
---|---|
Manufacturer Part Code | 11367 |
