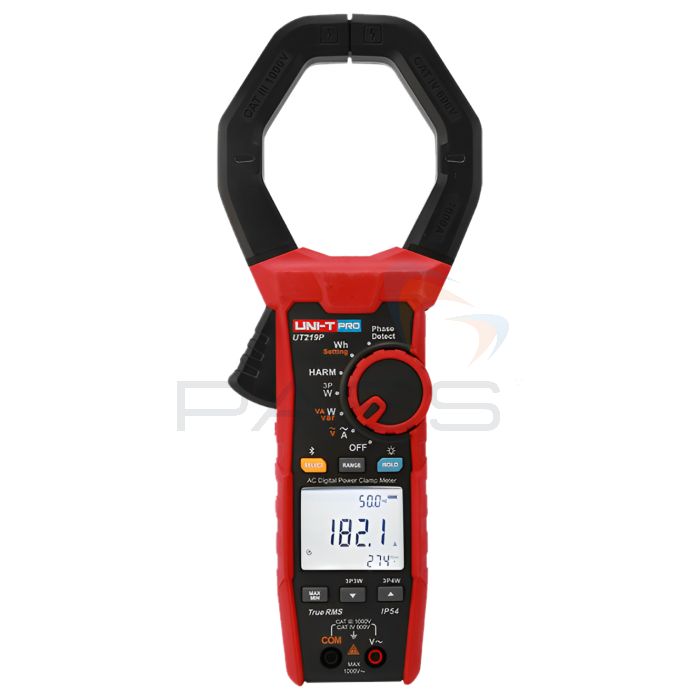

UNI-T UT219P Digital Power Clamp Meter
- Single-phase power measurement
- True RMS measurement
- Bluetooth 5.0
- IP54
SKU
UT219P
MPN
UT219P
The UNI-T UT219P is a clamp meter that combines the capabilities of a digital ammeter and a power meter. It supports harmonics measurements, three-phase voltage imbalance, AC voltage and current, power, power factor, and more.
It is suitable for solar power installations, motor production, and monitoring power and harmonics in electrical systems and distribution panels.
Introducing UNI-T UT219P AC Digital Power Clamp Meter
Key Features
- Certificates: CE, ETL, REACH, FCC
- 1000A AC measurement
- 1000V AC voltage measurement
- AC and DC PEAK measurement
- Three-phase power measurement (up to 3000kW)
- Harmonic/THD/Power Factor/Phase Sequence Measurement
- Single-phase power measurement
- Large pliers head (up to 75mm diameter)
- True RMS measurement
- Bluetooth 5.0
- CAT III 1000V/CAT IV 600V
- IP54
What's Included?
- Clamp meter
- User manual
- Test leads (red, black)
- Alligator clips (red, black)
- 1.5V AAA battery (3)
- Tool box
- Brown box
- Test probes (red, black)
Technical Information
Specification
| Range | Accuracy | |
|---|---|---|
| AC (A) | 1000A | ±(1.5%+3) |
| AC Voltage (V) | 1000V | ±(0.7%+3) |
| Power (single phase) | 1000KW | ±(1.7%+5) |
| Power (3-phase & 3-wires) | 1732KW | |
| Power (3-phase & 4-wires) | 3000KW | |
| Power Frequency (Hz) | 15Hz~1000Hz | ±(0.3%+3) |
| Phase Angle (-180°~ 179.9°) | 15Hz~40Hz | ±5° |
| 40Hz~70Hz | ±3° | |
| 70Hz~1000Hz | ±5° | |
| Power Factor | -1 ~ 1, based on the accuracy of the phase angle | |
| Features | ||
| Jaw Opening | 75mm | |
| Phase Detection | √(80V~1000V) | |
| Positive and Negative | ||
| AC/DC PEAK Measurement | √ | |
| Harmonic Measurement | 32 times | |
| Display Mode | LCD screen | |
| 4 kinds of results at the same time | ||
| Display Count | 9999 | |
| Bluetooth App | √ | |
| True RMS | √ | |
| Overload Indication | √ | |
| High Voltage Indication | √ | |
| High Voltage Overload Warning | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Auto Power Off | Around 15 minutes | |
| Max/Min | √ | |
| Overvoltage Category | CAT III 1000V/CAT IV 600V | |
| Certificate | CE, UKCA, cETLus | |
Document Downloads
UNI-T UT219P AC Digital Power Clamp Meter Datasheet
UNI-T UT219P AC Digital Power Clamp Meter User Manual
