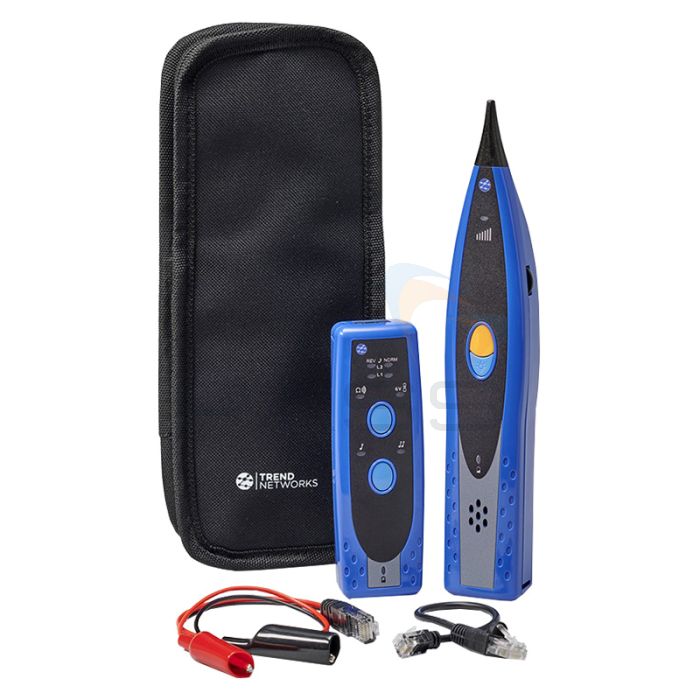

TREND Networks R180000 Tone and Probe Kit for Data Cable Tracing
Description
Depend on the TREND Networks R180000 Tone & Probe to easily trace all types of copper cables. Industry-leading power output provides cable tracing you can depend on, even over long distances. Find cabling fast using the visual signal indicator and powerful speaker combination.
The tone generator is equipped with comprehensive line testing features for troubleshooting and service verification. The tone and probe set creates the perfect team to accurately identify data cable pairing using its multiple-tone pattern feature.
Key Features
- Locate cables fast
- Cable tracing for Data, Telephone, and COAX
- Identify a specific pair of wires in a multi-pair cable
- Troubleshooting cabling faults to identify breaks and poor cables
- Telephone Line Testing
- Trace longer cables
- Solve issues faster
- Verify cabling
- Easy to use
- Locate weak signals
- Easier cable tracing
- Find cables in noisy environments
- Operates in dark areas
Downloads
Brochures & Catalogues
Tech Specs
| Tone Generator Specifications | |
|---|---|
| Port | RJ45 socket (pin 4&5 Line 1, Pin 3&6 Line 2) |
| Functions | Tone, Continuity, battery supply, line status (polarity, DC & Ringing Voltage) |
| Tone Frequency | Alternating f1= 982.5 Hz, f2 =1312.5 Hz |
| Output Power | ≥ +10dBm @ 600 Ω |
| Output Voltage on Continuity Mode | 6-8 V DC |
| Talk Battery Power Supply | 6.0 V DC |
| Battery | 9 V alkaline |
| Auto Power Off | 3 hours |
| Operation Time | 70 hours typical |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Probe Specifications | |
|---|---|
| Battery | 9V alkaline |
| Operation Time | 50 hours typical |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5 % to 95 % non-condensing |
| Weight | 123g |
| Dimensions | 128(L) x 43(W) x 30(H) |
| Safety | IEC 61010-1, Category none, 30 V rms max |
Reviews
Additional Information
| SKU | R180000 |
|---|---|
| Manufacturer Part Code | R180000 |
