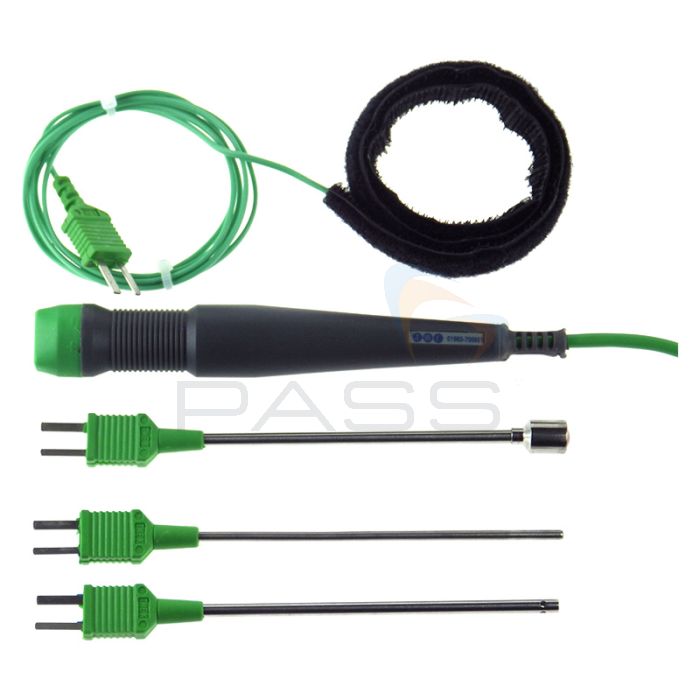

TM Electronics PKHVK K Type Heat and Vent Probe Kit

Probe Handle (KH01)

K Type Handle is suitable for Plug Mounted Probes. When used in conjunction with the TME range of K Type Plug Mounted Probes, the socket at the end of the handle means that a variety of temperature measurements may be performed by simply swapping attachments.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Ambient Temperature Specification -50 to 50°C
• Handle Length - 135mm
• Cable Length - 2 metres
• Plug Type - Moulded 2-pin
• Waterproof

Plug-mounted ribbon surface probe (KHS01)

K Type Band Surface Plug Mounted Probe for fast response surface temperature measurement, ideal for one-handed temperature measurement.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 250°C
• Length - 110mm
• Diameter - 10mm at tip
• Manufactured with a sprung draught shield which serves to protect the tip when not in use
• Also includes a thin metal disc giving a low thermal mass, providing a fast response
• Plug Type - Moulded 2-pin

Note: This probe only requires light pressure to give a true reading and is suitable for smooth, clean surfaces. If used on an uneven surface, there is a risk that the band will be weakened and deformed.

Plug-mounted general-purpose probe (KHM01)

K Type Plug Mounted General Purpose (Binder) Probe. This probe is ideal for the temperature measurement of liquids.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Stem Length - 100mm
• Stem diameter - 3mm
• Plug Type - Moulded 2-pin

Plug-mounted air probe (KHA02)

K Type Plug Mounted Still Air Probe. This probe is ideal for the temperature testing of heating and ventilation work.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Stem Length - 110mm
• Stem diameter - 4mm
• Plug Type - Moulded 2-pin

Velcro probe (KVEL01)

K Type Velcro Probe. Designed to measure the temperature of pipes, and at 400mm long, the use of this probe is not restricted by the varying diameter of pipes in a building.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Probe Length - 400mm
• Probe Width - 20mm
• Cable Length - 1 meter of straight PTFE
• Plug Type - Moulded 2-pin
