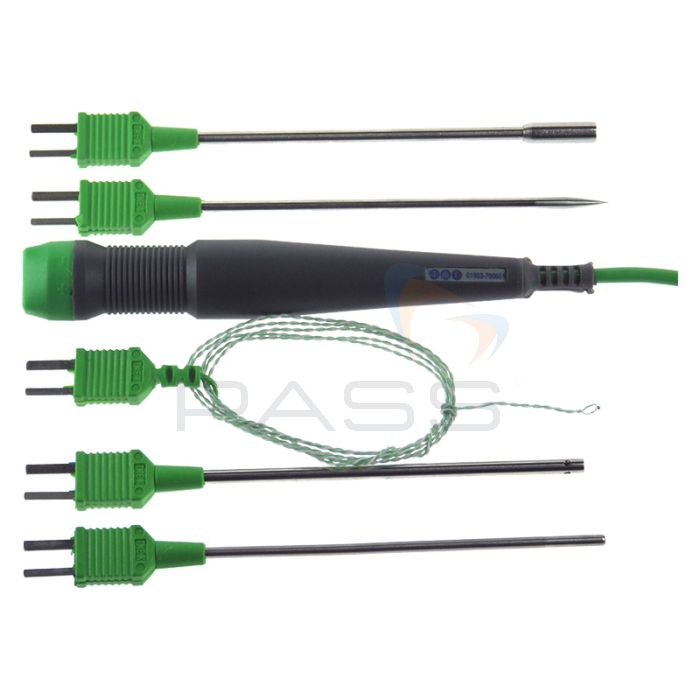

TM Electronics PKGPK K Type General Purpose Probe Kit

Probe Handle (KH01)

K Type Handle is suitable for Plug Mounted Probes. When used in conjunction with the TME range of K Type Plug Mounted Probes, the socket at the end of the handle means that a variety of temperature measurements may be performed by simply swapping attachments.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Ambient Temperature Specification -50 to 50°C
• Handle Length - 135mm
• Cable Length - 2 metres
• Plug Type - Moulded 2-pin
• Waterproof

Plug-mounted surface probe (KHS02)

K Type Sprung Shield Plug Mounted Probe for surface temperature measurement at high temperature. Ideal for one-handed temperature measurement.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Length - 110mm
• Diameter - 6mm at tip
• Manufactured with a sprung draught shield which serves to protect the tip when not in use
• Also includes a thin metal disc giving a low thermal mass, providing a fast response
• Plug Type - Moulded 2-pin

Plug-mounted general-purpose probe (KHM01)

K Type Plug Mounted General Purpose (Binder) Probe. This probe is ideal for the temperature measurement of liquids.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Stem Length - 100mm
• Stem diameter - 3mm
• Plug Type - Moulded 2-pin

Plug-mounted air probe (KHA02)

K Type Plug Mounted Still Air Probe. This probe is ideal for the temperature testing of heating and ventilation work.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 750°C
• Stem Length - 110mm
• Stem diameter - 4mm
• Plug Type - Moulded 2-pin

Plug-mounted needle probe (KHP05)

Plug Mounted Needle Probe. Waterproof Pencil Tip Penetration Probe, ideal for one-handed temperature measurement of semi-solids, liquids, and dry materials.

Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 250°C
• Length - 110mm
• Diameter - 3.3mm
• Plug Type - Moulded 2-pin

Fine wire Thermocouple (KA01)

Fine Wire Probe - Used for applications such as air, liquid, or surface temperatures.


Features

• Thermocouple Type - K
• Accuracy - Class I (±1.5°C ±0.25%)
• Measurement Range -100 to 250°C
• Length - 1m
• Diameter - 0.3mm
• Plug Type - Moulded 2-pin

Note: The plug-mounted surface probe (KHS02) only requires light pressure to give a true reading and is suitable for smooth, clean surfaces. If used on an uneven surface, there is a risk that the band will be weakened and deformed.
