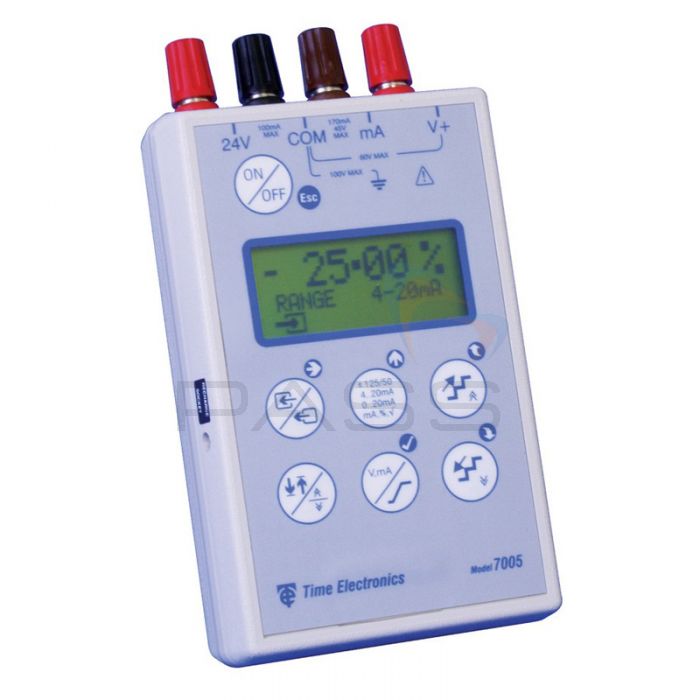

Time Electronics 7005 Voltage, Current & Loop Calibrator

Time Electronics Voltage Current Loop Calibrator 0 01 Percent Accuracy

Ranges are fully programmable
Easy and simple to use – even for first timers
Min/Max Recording

SKU

7005

MPN

7005

View All Voltage, Current & Loop Calibrators

Description Technical Info Reviews

Made for calibrating and simulating voltage and current loops, the Time 7005 includes the ability to source and measure voltage and current and is a portable unit designed for use both in the lab and out in the field.

The 7005 has three operating modes: a loop current/voltage source for simulating a transmitter and loop supply, a sink of loop current for simulating a transmitter and a measurement mode which calculates loop current/voltage for simulating loop indicators.

This calibration device also includes both manual and autostepping calibration output points, with 0, 25, 50, 75 and 100% of span available on the automatic mode. In addition this calibrator can also perform continuous up and down ramping with user programmable ramp and dwell time (top and bottom).

The Time 7005 calibrator runs on rechargeable batteries and will last on average for around 9 hours on a single charge.

Time 7005 Voltage, Current and Loop Calibrator Key Features

Precise, handheld calibration device
Three operating modes: loop current/voltage source, sink loop current and measure loop current/voltage
High accuracy
Programmable ranges
Auto and manual step
Auto ramp
Rechargeable batteries last on average for 9 hours
Auto shut down when left idle to conserve battery life

Full List of Products Included

Time 7005 Voltage, Current & Loop Calibrator
Battery Charger
Carry Case
User Manual

£779.00

£934.80 inc vat

Free Delivery*

Only 1 in Stock: Available Next Working Day*

779 Reward Points 60 Days Return

Technical Information

Specification

Time Electronics 7005 Technical Specifications

Voltage Source
Range	Resolution	Accuracy	Output Current	Output Resistance
0 to 21V	1mV	±0.01% of setting ±4mV	50mA	< 1Ω
Voltage Measure 0 to ±25V, Autoranging)
Range	Resolution	Accuracy		Measure Load
0 to 5V	0.1mV	±0.01% of reading ±0.4mV		10MΩ
5 to 25V	1mV	±0.01% of reading ±2mV		10MΩ
Current Source
Range	Resolution	Accuracy	Output Voltage	Loop Resistance
0 to 50mA	1μA	±0.01% of setting ±2μA	22V max	1100Ω @ 20mA max
Current Measure (0 to ±125mA, Auto-Ranging)
Range	Resolution	Accuracy		Measure Load
0 to 25mA	1μA	±0.01% of reading ±2μA		24.5Ω
25 to 125mA	10μA	±0.01% of reading ±20μA		24.5Ω
Current Sink
Range	Resolution	Accuracy	Min External Drive	Max External Drive
0 to 50mA	1μA	±0.01% of setting ±2μA	4V	40V
