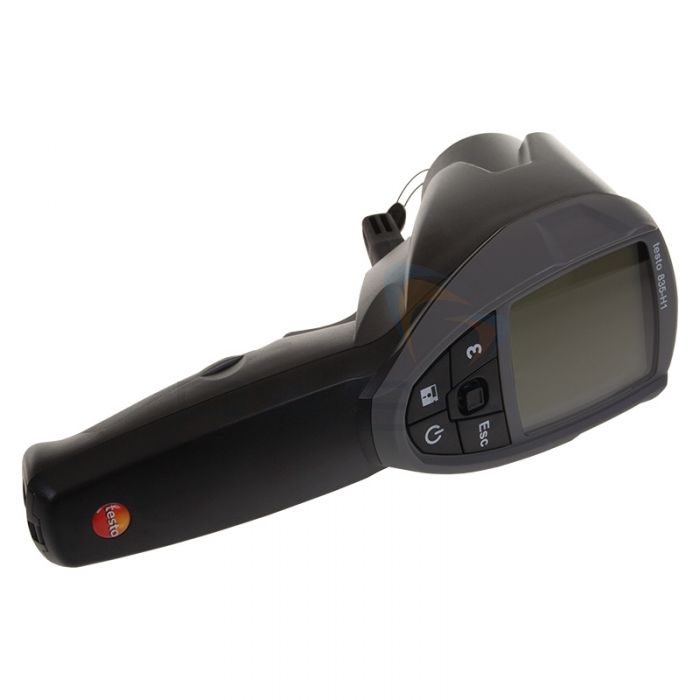

This thermometer is used both for analysing temperature at a distance and can also be used to analyse the amount of moisture present in construction and building materials.
When using the device as a thermometer measurements are gained by pointing the 835-H1 at the target application. It will then shine a four-point laser pointer exactly where the device is pointing, allowing you to pinpoint exactly where you want measurement to be taken, even at a distance. This makes this product ideal for applications where it isn’t possible to get close to test temperature such as blast furnaces or extremely hot piping.
The Testo 835-H1 is able to measure temperature between a range of -30 to 600°C when using the infrared mode. This device also features the ability to attach a type K probe, which allows the device to measure surface temperature from -50 to 600°C. It can measure humidity thanks to the in-built humidity module between 0 to 100%RH with accuracy of ±2%RH.
Testo 835-H1 Infrared Thermometer/Moisture Meter Key Features
- Moisture and temperature measurement
- Simple point and shoot operation
- Precision measurements with laser pointer
- In-built moisture module
- Illuminate display
- Ergonomic pistol design
- High accuracy
- Built-in memory for data storage and PC download
- 50: 1 long distance optics
Full List of Products Included
- Testo 835-T2 Infrared Thermometer
- Batteries
- Calibration Protocol
Technical Specifications
Display |
Dot matrix |
---|---|
Storage temperature |
-30 to +50 °C |
Operating temperature |
-20 to +50 °C |
Weight |
527 g |
Dimensions |
193 x 166 x 63 mm |
Probe - Type K |
|
---|---|
Meas. Range |
-50 to +600 °C |
Accuracy |
±(-0.5 °C +0.5% of mv) |
Resolution |
0.1 °C |
Probe - Infrared |
|
Meas. Range |
-30 to +600 °C |
Accuracy |
±2,5 °C (-30,0 to -20,1 °C ) ±1,5 °C (-20,0 to -0,1 °C ) ±1,0 °C (+0,0 to +99,9 °C ) ±1% of mv (remaining range ) |
Resolution |
0,1 °C |
Probe - humid. sensor, cap. |
|
Meas. Range |
0 to 100 %RH |
Accuracy |
±2 %RH ±0.5 °C |
Resolution |
0.1 °C 0.1 %RH 0.1 °Ctd |
Reviews
SKU | 5608353 |
---|---|
Manufacturer Part Code | 0560 8353 |
