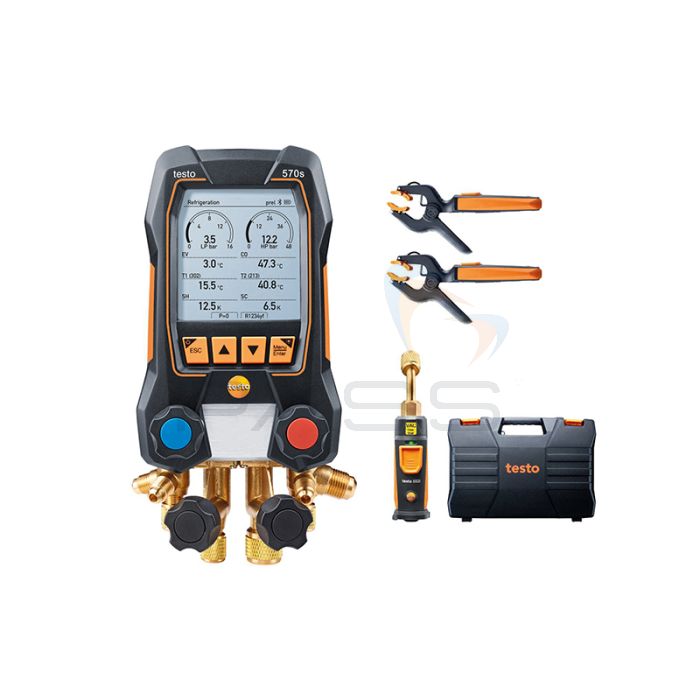

The Testo 570s Smart Vacuum Kit includes:
- Testo 570s Smart Digital Manifold
- 2x Testo 115i Clamp Temperature Probes
- 1x Testo 552i Vacuum Probe
Testo 570s Smart Digital Manifold Overview
The Testo 570s Smart Digital Manifold features a four-way valve lock, Bluetooth, and large data memory. It is suitable for use with A2L and A3 refrigerants and is designed for intelligent long-term measurement on refrigeration systems, air conditioning systems, and heat pumps. Optimised for easy, uncomplicated measurement, temperature, vacuum, and current probes automatically connect to the Testo 570s via Bluetooth while onboard test programs guide you through the measurement process. The Testo 570s Smart Digital Manifold offers a 0.25% fs accuracy. Measurement data and a graphical progress display are indicated on the large screen. Readings may be sent to the Testo Smart App which includes a digital fault analysis function that detects anomalies quickly and reliably. Finally, practical features include a robust, IP54-rated design and a hybrid power system consisting of a rechargeable battery and three replaceable batteries that delivers 360 hours of operating time.
For more information regarding the Testo 570s Smart Digital Manifold, please follow this link.
Testo 115i Clamp Temperature Probe Overview
A wireless, datalogging clamp thermometer, the Testo 115i Clamp Temperature Probe measures the flow and return temperatures of heating systems. It is suitable for use on Ø6-35mm pipelines; has a 100m Bluetooth range; and a temperature measuring scale of -40°C to +150°C. Readings are sent to the Testo Smart App where they can be viewed in a graph or table and may be used to create reports. Bluetooth-enabled, simple-to-use, and versatile, the Testo 115i Clamp Temperature Probe is suitable for installing, servicing, and troubleshooting air conditioning and refrigeration systems.
Please click here for more information regarding the Testo 115i Clamp Temperature Probes.
Testo 552i Wireless Bluetooth Vacuum Smart Probe Overview
Take wireless vacuum measurements with the Testo 552i Wireless Bluetooth Vacuum Smart Probe. Readings are wirelessly transmitted to the Testo Smart App or connected Testo 570s Digital Manifold. Compact, ergonomic, and robust, the Testo 552i Wireless Bluetooth Vacuum Smart Probe can be easily installed at service points due to its integrated 45° angle. Suited to applications involving A2L refrigerants, the Testo 552i Wireless Bluetooth Vacuum Smart Probe is perfect for commissioning, servicing, and maintaining refrigeration systems, air conditioning systems, and heat pumps.
Please follow this link for more information regarding the Testo 552i Wireless Bluetooth Vacuum Smart Probe.
What’s Included?
- Testo 570s Smart Digital Manifold
- 2x Testo 115i Clamp Temperature Probes
- 1x Testo 552i Vacuum Probe
- Case
- Calibration Protocol for the Testo 570s
Get a Free Testo Heavy Duty Organiser with your purchase to securely store and organise your tools. This durable organiser keeps everything easily accessible and well-protected.
Testo 570s Digital Manifold Technical Specifications
General Technical Data | ||
Operating temperature | -20 to +50 °C | |
Storage temperature | -20 to +60 °C | |
Battery type | Built-in rechargeable battery: LI batttery 18650 Replaceable battery: 3 alkaline batteries AA |
|
Battery life | With built-in rechargeable battery:≥220 h without Bluetooth®, without illumination ≥120 h with Bluetooth® and illumination With 3 AA batteries: ≥145 h without Bluetooth®, without illumination ≥75 h with Bluetooth® and illumination |
|
Auto power off | after 10 minutes when not connected via Bluetooth® | |
Dimensions | 229 x 112.5 x 71 mm | |
Weight | 1.3 kg | |
Protection class | IP54 | |
Bluetooth® technology/ range | Bluetooth® 5.0 / 150 m | |
Compatibility |
Requires iOS 11.0 or newer / Android 6.0 or newer |
|
Requires mobile terminal device with Bluetooth® 4.0 |
||
Sensor Types | ||
Pressure | Temperature | |
Measuring range | -1 to 60 bar | -50 to +150 °C |
Accuracy (at 22 °C) | ±0.25 % fs | ±0.5 °C |
Resolution | 0.01 bar | 0.1 °C |
Probe connections | 3 x 7/16" – UNF + 1 x 5/8" – UNF |
2 x plug-in (NTC) |
Overload | 65 bar | - |
Testo 115i Clamp Thermometer Smart Probe Technical Specifications
Sensor type | NTC |
Measuring range | -40 to +150 °C |
Accuracy ±1 digit | ±1.3 °C (-20 to +85 °C) |
Resolution | 0.1 °C |
Compatibility | requires iOS 8.3 or newer / Android 4.3 or newer |
requires mobile terminal device with Bluetooth® 4.0 | |
Storage temperature | -20 to +60 °C |
Operating temperature | -20 to +50 °C |
Battery type | 3 micro batteries AAA |
Battery life | 150 hrs |
Dimensions | 183 x 90 x 30 mm |
Bluetooth® range | up to 100 m |
Testo 552i Wireless Bluetooth Vacuum Smart Probe Technical Specifications
Sensor Type | Pressure |
Measuring range | 0 to 26.66 mbar/0 to 20000 microns |
Accuracy ±1 digit | ±10 microns + 10% of m.v. (100 to 1000 microns) |
Resolution | 1 micron (0 to 1000 microns) |
10 microns (1000 to 2000 microns) | |
100 microns (2000 to 5000 microns) | |
Connection | 7/16" – UNF |
Overload | 6.0 bar/87 psi (relative: 5.0 bar/72 psi) |
General Technical Data | |
Connection | Bluetooth 4.2 |
Bluetooth® range | 150 m |
Storage temperature | -20 °C to +50 °C |
Operating temperature | -10 °C to +50 °C |
Battery type | 3 AAA microcells |
Battery life | 39 h |
Auto power off | After 10 minutes when not connected via Bluetooth |
Protection class | IP54 |
Dimensions | 150 x 32 x 31 mm |
Weight | 142 g |
