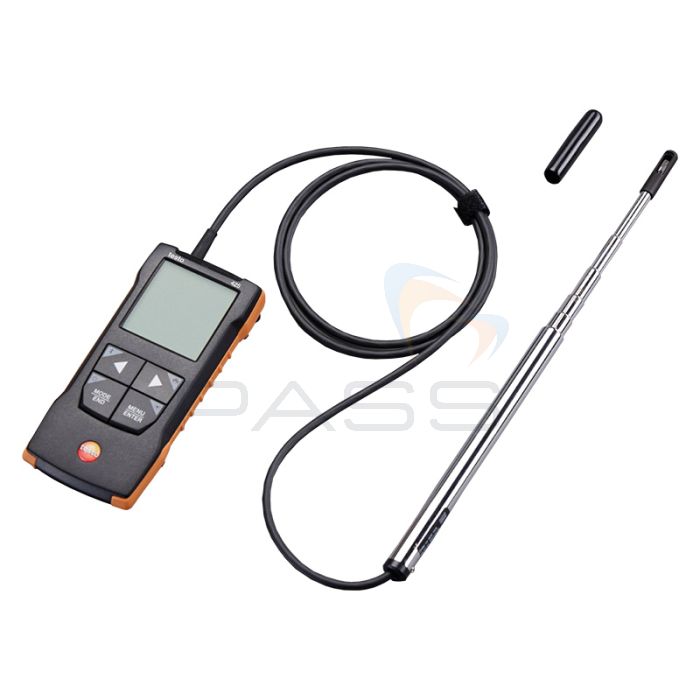

The compact hot wire anemometer Testo 425 with a telescopic probe is ideal for simple, fast, and precise determination of flow velocity and volume flow in ventilation ducts of air conditioning and ventilation systems. The connection to the Testo Smart App enables configuration, display (also as a second screen), and storage as well as documentation of the measurement directly in the App.
Optimally adjusted air conditioning and ventilation systems are decisive factors for modern buildings. Accordingly, it is important to use the appropriate measurement technology to ensure that the flow, temperature, and volume flow in the ventilation duct is correct. The Testo 425 thermal anemometer is your fast, easy, and precise companion. The cable-connected telescopic probe can be extended up to 820 mm, making it easier to work overhead or in large-diameter ducts. All relevant calculations, such as volume flow or time and point averages, are performed automatically by the particularly robust and compact measuring instrument.
Configuration of the measuring instrument, display, and storage of measured values as well as documentation are all particularly convenient with the Testo Smart App. This also turns your smartphone into a second display.
Temperature - NTC | |
---|---|
Measuring Range | -20 to +70 °C |
Accuracy | ±0.5 °C |
Resolution | 0.1 °C |
Velocity - Thermal Anemometer | |
Measuring Range | 0.01 to 30 m/s |
Accuracy | ±(0.03 m/s + 4.0 % of mv) (0.01 to +20 m/s), ±(0.5 m/s + 5.0 % of mv) (20.01 to +30 m/s) |
Resolution | 0.01 m/s |
General Technical Data | |
Weight | 268 g |
Dimensions | 135 x 60 x 28 mm |
Operating Temperature | -20 to +50 °C, Probe: -20 to +70 °C |
Product-/Housing Material | ABS + PC / TPE |
Diameter Probe Shaft | 7.5 mm |
Cable Length | 1.5 m |
Protection Class | IP40, IP20 |
Length Probe | 180 mm |
Battery Type | 3x AA |
Battery Life | 35 h |
Storage Temperature | -20 to +50 °C |
