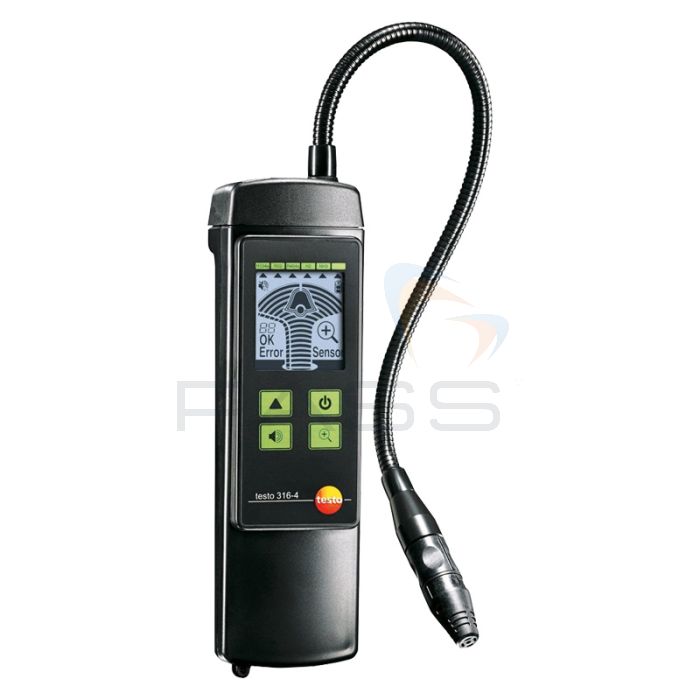

Testo 316-4 Refrigerant Leak Detector (CFC, HFC, HCFC & H2 or NH3, Ammonia)
- Detects CFC, HCFC, HFC and H2 or NH3, Ammonia
- Flexible gooseneck probe with sensitivity of <3g/a
- Audible and visual indicator with trend display
SKU
TESTO-316-4
Ideal for testing for refrigerant leaks in noisy environments, the Testo 316-4 is able to detect CFC, HCFC, HFC and H2 or NH3 and give both audible and visual indication that a leak has been detected.
Includes in the kit with this leak detector are a set of earphones which can be used in combination with the device to hear the audible tone in noisy industrial environments. With the use of the device’s integrated screen which shows contaminants and malfunctions, carrying out leak detection is simple and easy.
The 316-4 also has high sensitivity built in, allowing it to detect even tiny leakages. If a leak is detected, the device’s screen will flash with a red colouring, and the audible tone will sound. There’s also a trend display which shows maximum leakage.
Testo 316-4 Refrigeration Leak Detector Key Features
Testo 316-4 Set 1 (0563 3164)
- Detects CFC, HCFC, HFC and H2
Testo 316-4 Set 2 (0563 3165)
- Detects NH3, Ammonia
Both 316-4 Models
- Flexible gooseneck probe
- Cleanable filter
- Colour-coded screen for leak detection and trend analysis
- High sensitivity of 3g/a
- Audible tone
- Headphones included for using the device in noisy environments
Full List of Products Included
- Testo 316-4
- Leak detector head of choice
- Carrying case
- Earphones
- Mains unit
£378.25
£453.90 inc vat
1 Option in Stock:
Available Next Working Day*
Technical Information
Specification
Testo 316-4 Tech Specs
| Operating humidity |
20 to 80 %RH
|
|---|---|
| Weight |
348 g
|
| Reaction time |
< 1 s
|
| Dimensions |
190 x 57 x 42 mm
|
| Operating temperature |
-20 to +50 °C
|
| Product colour |
Black
|
| Length of gooseneck |
370 mm
|
| Start-up time |
<50 sec (0 ... +50 °C); <50 sec (0 ... +50 °C)
|
| Detectable |
R134a; R22; R404A; H₂ and all common refrigerants such as CFC, HCFC, HFC, NH₃ (separate sensor head)
|
| Sensitivity |
3 g/a
|
| Leakage alarm |
optical and audible alarm
|
| Standards |
EN 14624:2012
|
| Alarm function |
Optical; audible
|
| Battery type |
1 battery block (6 cells NiMh)
|
| Battery life |
6 h (Continuous operation)
|
| Storage temperature |
-25 to +70 °C
|
