FLIR A50 Fixed-Mount Automation Thermal Camera with Adv. Smart Sensor

SKU
A50-SS
Rating:
0%
(0)
Reward Points
:
11000
£11,000.40 £9,167.00
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Teledyne FLIR A50 Advanced Smart Sensor Automation Thermal Camera – Choice of Lens

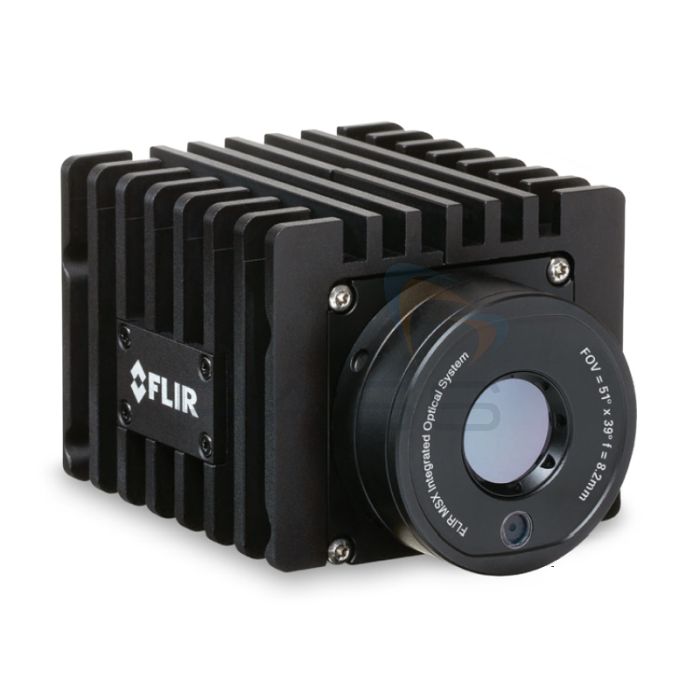

FLIR A50 Fixed-Mount Automation Thermal Camera

Suitable for condition monitoring and early fire detection, the FLIR A50 Automation Thermal Camera is an infrared-imaging automation camera with an advanced smart sensor configuration, (other configurations are available) built-in analytics, and onboard alarms. It is available with a selection of lenses as well as a range of optional extras.

Thermal Imaging

The FLIR A50 delivers detailed, low-noise thermal imaging with integrated temperature data. To this end, it offers an IR resolution of 464 x 348px and can measure temperatures between -20°C and +1000°C to an accuracy of ±2°C/2%. Advanced smart sensor configuration enables exact temperature data to be extracted from each pixel using FLIR’s Atlas SDK. Furthermore, the A50 supports MSX imaging when it is configured to include an optional built-in visual camera. This feature overlays digital details onto thermal images, improving scene sharpness. Please contact our Sales Team for further details.

Advanced Smart Sensor Configuration

FLIR A50 Smart Sensor

FLIR’s advanced smart sensor configuration is perfect for those who require built-in analytics. Cameras with this configuration allow you to transfer complete, actional results to your own system. The advanced smart sensor configuration supports the following functions and features:

  • Built-in spot analytics function
  • Built-in area analytics function
  • Built-in alarms
  • Isotherms
  • Iso-coverage
  • Digital I/O
  • Power over Ethernet (PoE)
  • Modbus TCP
  • Built-in web interface
  • Motorised focus
  • Built-in fault diagnostics
  • REST-API
  • MQTT
  • Modbus TCP Master
  • Pan and tilt support
  • Built-in line analytics function
  • Built-in polygon analytics function
  • Multi-image streaming
  • Compressed 16-bit image streaming
  • External black body correction
  • Optional IP66- or IP67-rated design
  • Optional visual camera with MSX
  • Optional Wi-Fi

Easy Integration

Designed for simple integration into video management systems, the FLIR A50 includes thermal sensors that communicate with standard industrial protocols. It easily integrates into HMI and SCADA systems and supports simple configuration via a standard web browser. In addition to this, SNMP trap and advanced firewall protection mean multiple network devices can work together securely. It also supports optional ONVIF S which enables simultaneous VMS video and alarm integration. Please contact our Sales Team for more details.

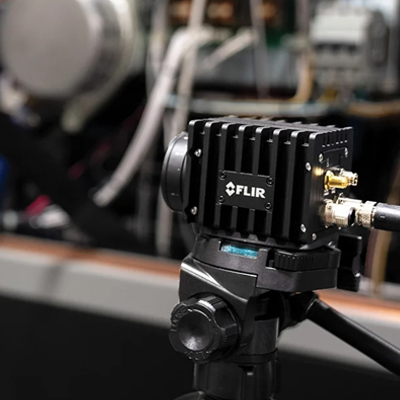

Rugged, Compact, & Easy to Install

This lightweight, durable (IP66), compact camera is compatible with an array of mounting options and includes heavy-duty M8/12 connectors and therefore can be easily installed in various demanding settings.

The FLIR A50 Automation Thermal Camera is a compact, configurable temperature-measuring thermal camera perfect for protecting assets, improving safety, maximising uptime, and minimising maintenance costs.

Videos

Introducing FLIR A50 and A70 Fixed-Mount Thermal Cameras

Key Features

  • Thermal imaging automation camera with an advanced smart sensor configuration
  • Built-in analytics
  • Onboard alarms
  • Available with a selection of lenses and optional extras
  • Suitable for condition monitoring
  • Suitable for early fire detection
  • Delivers detailed, low-noise thermal imaging with integrated temperature data
  • IR resolution: 464 x 348px
  • Total temperature range: -20°C to +1000°C
  • Approximate accuracy: ±2°C/2%
  • Extract temperature data using FLIR’s Atlas SDK
  • Supports optional MSX imaging
  • Optional built-in visual camera
  • Thermal sensors communicate with standard industrial protocols
  • Simply integrates into video management systems
  • Easily integrates into HMI and SCADA systems
  • Supports simple configuration via a standard web browser
  • SNMP trap
  • Advanced firewall protection
  • Optional ONVIF S compatibility
  • Lightweight
  • Durable (IP66)
  • Compatible with an array of mounting options
  • Heavy-duty M8/12 connectors
  • A compact, configurable temperature-measuring thermal camera
  • Protect assets
  • Improve safety
  • Maximise uptime
  • Minimise maintenance costs

What’s Included?

  • FLIR A50 Thermal Camera with Adv. Smart Sensor Configuration
  • Your Choice of Lens

FLIR A50 Automation Thermal Camera Technical Specifications

Digital I/O connector type M12 12-pin A-coded, Male (shared with external power)
Digital Inputs 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
  • As a function of alarm, output to external device
  • Fault (NC)
Digital Outputs 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding Video stream: H.264, MPEG4, or MJPEG
Radiometric stream: Compressed JPEG-LS, FLIR radiometric
Ethernet Interface Wired, Wi-Fi (optional)
WiFi Optional feature purchased separately. RP-SMA, female connector
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
f-number 1.4
Image Frequency 30 Hz
Thermal Sensitivity/NETD <35 mK
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Alarm Functions 10 Spotmeters 10 Boxes and Mask polygons (total number) 3 Deltas (difference any value/reference/external lock) 2 Isotherm (above/below/interval) 2 Iso-coverage 1 Reference temperature 2 Lines 1 Polyline
Alarm Output Digital out E-mail (SMTP) (push) EtherNet/IP (pull) File transfer (FTP) (push) Modbus TCP Client (push) Modbus TCP Server (pull) MQTT (push) ONVIF events (push) Query over RESTful API (pull) Store image or video
Communication & Data Storage
Digital I/O connector type M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage 500 VRMS
Digital input purpose NUC, NUC disable, alarm
Digital Inputs 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose
  • As a function of alarm, output to external device
  • Fault (NC)
Digital Outputs 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding Video stream: H.264, MPEG4, or MJPEG
Radiometric stream: Compressed JPEG-LS, FLIR radiometric
Ethernet For control, result, image, and power
Ethernet Communication TCP/IP socket-based FLIR proprietary
Ethernet Connector Type M12 8-pin X-coded, female; RP-SMA, female
Ethernet Interface Wired, Wi-Fi (optional)
Ethernet Power Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols
  • EtherNet/IP
  • IEEE 1588
  • Modbus TCP
  • MQTT
  • SNMP
  • TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard IEEE 802.3
Ethernet Type 1000 Mbps
Image Storage NA
Multicast Yes
RS-232 M8 A-coded, male connector
WiFi Optional feature purchased separately. RP-SMA, female connector
Imaging & Optical
Contrast Enhancement FSX® / Histogram equalization (IR only)
Detector Pitch 17 µm
Field of view (FOV) Lens dependent
f-number 1.4
Focal Length 4.1 mm (0.16 in)
Focal Plane Array (FPA) Uncooled microbolometer
Focus Fixed, adjustable with included tool
Image Frequency 30 Hz
IR Resolution 464 × 348
Minimum Focus Distance 0.1 m (0.33 ft)
MSX Yes, included in visual camera option
Overlay Without
Radiometric IR video streaming RTSP protocol
Readout No measurements readouts, only streamed video
Spectral Range 7.5–14 µm
Streaming Resolution RTSP Video stream 0: 640 × 480 pixels RTSP Video stream 1: 1280 × 960 pixels Radiometric stream: 464 × 348 pixels
Thermal Sensitivity/NETD <35 mK
Video Streaming RTSP protocol
Visible Camera Optional accessory
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Alarm Functions 10 Spotmeters 10 Boxes and Mask polygons (total number) 3 Deltas (difference any value/reference/external lock) 2 Isotherm (above/below/interval) 2 Iso-coverage 1 Reference temperature 2 Lines 1 Polyline
Alarm Output Digital out E-mail (SMTP) (push) EtherNet/IP (pull) File transfer (FTP) (push) Modbus TCP Client (push) Modbus TCP Server (pull) MQTT (push) ONVIF events (push) Query over RESTful API (pull) Store image or video
Atmospheric transmission correction Based on inputs of distance, atmospheric temperature, and relative humidity
Automatic hot & cold detection Max./min. temperature value and position shown within Box
Measurement Corrections Global object parameters; local parameters per analyze function; external Black-body correction
Measurement Presets Yes
Measurement Tools 10 spotmeters, 10 boxes and mask polygons (total number), 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline
Object Temperature Range –20 to 175°C (–4 to 347°F) 175 to 1000°C (347 to 1832°F)
General
Base Mounting 4 x M2.5 direct into camera or 4x 10-32 UNF onto bottom cooling plate
Housing material Aluminium
Size (L x W x H) 107 × 67 × 57 mm (4.21 × 2.64 × 2.24 in)
Weight 519g (1.14lb) without bottom cooling plate
Environmental & Certifications
Corrosion
  • ISO 12944 C4 G or H
  • EN60068-2-11
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Encapsulation IEC 60529 and IP66
Humidity (Operating and Storage) IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles EN60068-2-38
Operating Temperature Range –20 to 50°C (–4 to 122°F) Bottom cooling plate is needed in temperatures above 40°C (104°F). Maximum internal temperature sensor: 70°C (158°F)
Radio Spectrum
  • FCC 47 CFR Part 15 Class C (2.4 GHz band US)
  • FCC 47 CFR Part 15 Class E (5 GHz band US)
  • RSS-247 (2.4 GHz and 5 GHz band Canada)
  • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU)
  • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Shock IEC 60068-2-27, 25 g
Tripod Mounting 4 x M2.5 direct into camera or 4x 10-32 UNF onto bottom cooling plate
Vibration
  • IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal
  • IEC 61373 Cat 1 (Railway)
Power
External Power Operation 24/48 V DC 8 W max
External Voltage Allowed range 18–56 V DC
Power Connection M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption
  • 7.5 W at 24 V DC typical
  • 7.8 W at 48 V DC typical
  • 8.1 W at 48 V PoE typical
User Interface
Web interface Yes
Teledyne FLIR A50 & A70 Advanced Smart Sensor Automation - Datasheet Datasheets FLIR A50/A70 Series User Manual Manuals & Guides Teledyne FLIR Smart Sensor Cameras - Comparison Chart Notes & Other
