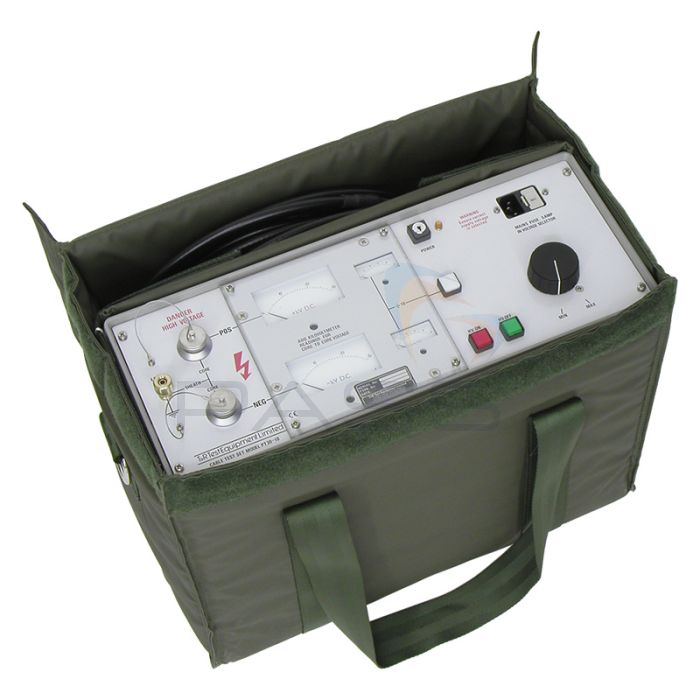

T & R PT30-10 mk3 High Voltage DC Cable Test System - 30kV

The upgraded version of T & R's PT18-10, the PT30-10 can output DC voltage of up to 30kV.

Portable and lightweight for easy transportation from test to test, this tester allows the user to check installed cables and jointing systems on high voltage installations for safety and efficiency. The voltage output of the unit is fully variable up to 30kV and the system has maximum charging capability of 10mA.

For added safety, the PT18-10 will lock out testing unless the output is set to zero. It's also key-locked, ensuring that unauthorised personnel can't use the tester at any point. Upon testing completion, the discharge circuit of the tester will discharge the cable under test when the output is switched off or breakdown occurs. If you're working with higher load capacitance, the supplied manual discharging probe can also be used for safe discharging.

T & R PT30-10 mk3 High Voltage DC Cable Test System Key Features

  • ±30kV DC output voltage
  • 10mA output capability
  • Simultaneous metering and display of voltage and current
  • Automatic earth system for dumping capacitive loads
  • HV output plug and socket system
  • Key operated supply switch prevents unauthorised use
  • Zero-volt interlock prevents operation unless output control is set to zero
  • Visual indication of test piece failure
  • Automatic mains voltage selection

What's Included?

  • T & R PT30-10 mk3 High Voltage DC Cable Test System
  • Supply Lead
  • Spare Fuse
  • Operating Manual
  • 5m HV Output Leads
  • 5m Output Earth Lead
  • DP40 Discharge Probe
  • Carrying Case w/ Space for Leads

T & R PT Series Technical Specifications

Output
Unit Type Voltage Continuous 5 Minutes
PT18-10 0 to ±18kV 5mA 10mA
PT30-10 0 to ±30kV 5mA 10mA
The above intermittent on times must be followed by an off time of 15 minutes and is based on ambient temperature of 25°C.
Metering
The positive and negative output voltages on the PT series are metered on the HV output by separate analogue instruments.
Unit Range Accuracy
PT18-10 0 to 20kV ±1.5% of full scale
PT30-10 0 to 30kV ±1.5% of full scale
The output current on both of the outputs is metered by a dual range analogue instrument. The 1mA range is selected by the 10 pushbutton adjacent to the mA meter
Unit Range Accuracy
PT18-10 10mA
1mA
±2.5% of full scale
PT30-10 10mA
1mA
