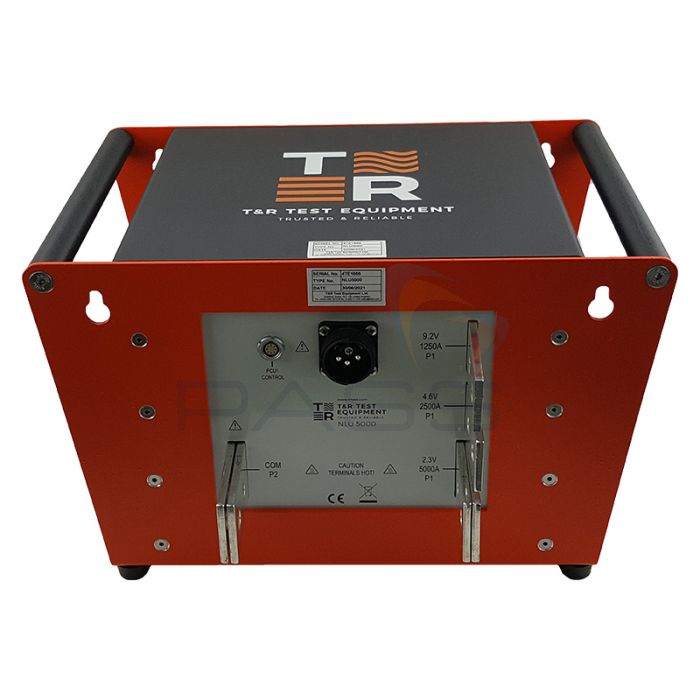

T&R NLU5000 Loading Unit - 5000A
This product is an optional loading unit for use with the T & R PCU1-SP current injector. It can output current of up to 5000A.
Rated to 11.5kVA, the unit includes three output taps and gives the user full control over output.
Alternative versions of this product with range of up to 200A or 2000A are also available.
T & R NLU Loading Units Technical Specifications
| Supply Requirements | |||||
|---|---|---|---|---|---|
| Loading Unit | Open Circuit Voltage | Load Current | Max Time For Load Current | Supply Current | |
| NLU5000 | 2.3V | 3000A | 5 minutes | 30A | |
| 5000A | 40 seconds | 50A | |||
| 4.6V | 1500A | 5 minutes | 30A | ||
| 2500A | 40 seconds | 50A | |||
| 9.2V | 750A | 5 minutes | 30A | ||
| 1250A | 50 seconds | 50A | |||
| NLU2000 | 3.5V | 1200A | 5 minutes | 18A | |
| 2000A | 40 seconds | 30A | |||
| 6.9V | 600A | 5 minutes | 18A | ||
| 1000A | 40 seconds | 30A | |||
| 13.8V | 300A | 5 minutes | 18A | ||
| 500A | 40 seconds | 30A | |||
| NLU200 | 60V | 80A | 5 minutes | 21A | |
| 200A | 40 seconds | 50A | |||
| 120V | 40A | 5 minutes | 21A | ||
| 100A | 40 seconds | 50A | |||
| Loading Unit Outputs | |||||
| Loading Unit | Open Circuit Voltage | Continous Current | Intermittent Current | ||
| 5 Min On/15 Min Off | 1 Min On/15 Min Off | 40s On/15 Min Off | |||
| NLU5000 | 2.3V | 1500A | 3000A | 4500A | 5000A |
| 4.6V | 750A | 1500A | 2250A | 2500A | |
| 9.2V | 375A | 750A | 1125A | 1250A | |
| NLU2000 | 3.5V | 600A | 1200A | 1800A | 2000A |
| 6.9V | 300A | 600A | 900A | 1000A | |
| 13.8V | 150A | 300A | 450A | 500A | |
| NLU200 | 60V | 40A | 80A | 160A | 200A |
| 120V | 20A | 40A | 80A | 100A | |
