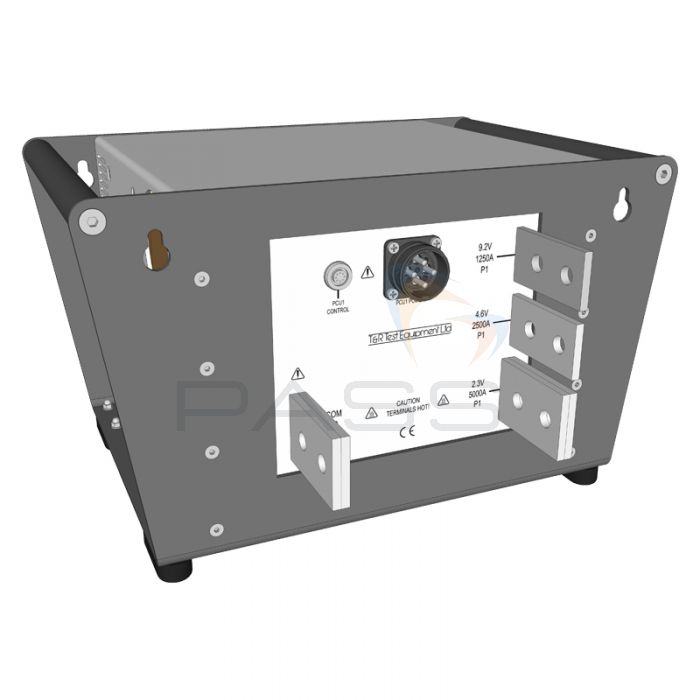

T&R NLU2000 Loading Unit - 2000A
- Range up to 2000A
- Three output taps
- Configurable
SKU
TR207
MPN
207
This product is an optional loading system for use with the T & R PCU1-SP current injector.
The unit can deliver maximum output current to 2000A and has three output taps for a wide range of load impedances. The unit is fully configurable.
The NLU2000 loading unit is rated at 11.5kVA with digital metering and memory facility to hold the current reading.
Alternative versions of this product are available with range to 200A or 5000A.
Technical Information
Specification
T & R NLU Loading Units Technical Specifications
| Supply Requirements | |||||
|---|---|---|---|---|---|
| Loading Unit | Open Circuit Voltage | Load Current | Max Time For Load Current | Supply Current | |
| NLU5000 | 2.3V | 3000A | 5 minutes | 30A | |
| 5000A | 40 seconds | 50A | |||
| 4.6V | 1500A | 5 minutes | 30A | ||
| 2500A | 40 seconds | 50A | |||
| 9.2V | 750A | 5 minutes | 30A | ||
| 1250A | 50 seconds | 50A | |||
| NLU2000 | 3.5V | 1200A | 5 minutes | 18A | |
| 2000A | 40 seconds | 30A | |||
| 6.9V | 600A | 5 minutes | 18A | ||
| 1000A | 40 seconds | 30A | |||
| 13.8V | 300A | 5 minutes | 18A | ||
| 500A | 40 seconds | 30A | |||
| NLU200 | 60V | 80A | 5 minutes | 21A | |
| 200A | 40 seconds | 50A | |||
| 120V | 40A | 5 minutes | 21A | ||
| 100A | 40 seconds | 50A | |||
| Loading Unit Outputs | |||||
| Loading Unit | Open Circuit Voltage | Continous Current | Intermittent Current | ||
| 5 Min On/15 Min Off | 1 Min On/15 Min Off | 40s On/15 Min Off | |||
| NLU5000 | 2.3V | 1500A | 3000A | 4500A | 5000A |
| 4.6V | 750A | 1500A | 2250A | 2500A | |
| 9.2V | 375A | 750A | 1125A | 1250A | |
| NLU2000 | 3.5V | 600A | 1200A | 1800A | 2000A |
| 6.9V | 300A | 600A | 900A | 1000A | |
| 13.8V | 150A | 300A | 450A | 500A | |
| NLU200 | 60V | 40A | 80A | 160A | 200A |
| 120V | 20A | 40A | 80A | 100A | |
Additional Information
SKU
TR207
Manufacturer Part Code
207
Model Ref
NLU2000
T&R NLU2000 Loading Unit - 2000A
£6,572.00
£7,886.40 inc vat
£6,572.00
£7,886.40 inc vat
