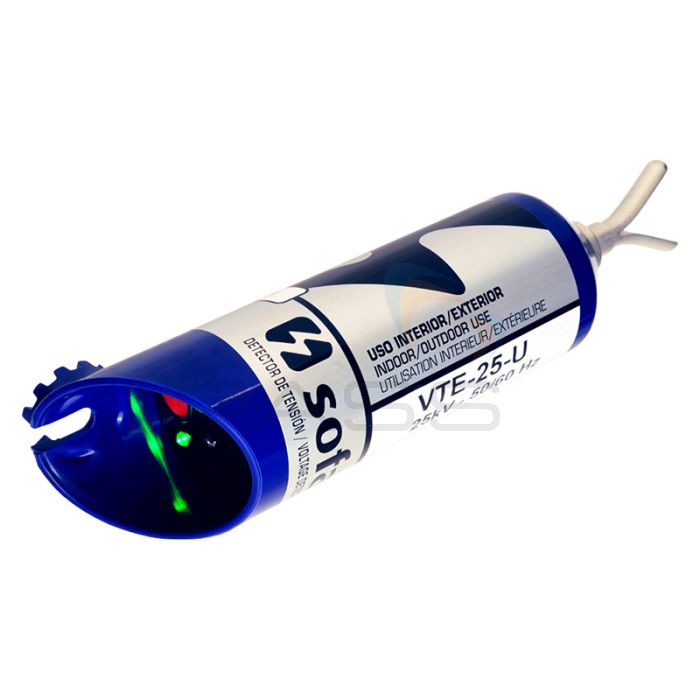

Sofamel VTE-25-U AC Voltage Detector

The Sofamel VTE-25-U is an electronic voltage detector with a microcontroller and direct contact detection. The technology guarantees a perfect and safe indication even in conflicting electric field environments. Indoor and outdoor use using an insulating pole suitable for the voltage range of the detector. Coupling to the pole using a universal head.

Key Features

• Voltage presence is indicated by a high luminosity red LED and a high acoustic pressure buzzer.
• Voltage absence is indicated by a high luminosity green LED.
• Low battery is indicated by an orange LED.
• Self-checking system for its complete circuit by pressing the test button.
• Stops working when low battery.
• Rated voltage: 25 kV AC
• Frequency: 50 / 60 Hz
• Work temperature range: from -25°C to +55°C.
• Climate category N
• Humidity from 20% to 96%
• Self-ignition when voltage presence.
• Auto turn-off into sleep mode after two minutes of voltage absence. In this mode, consumption is less than 1μA.
• Power supply: 9V alkaline battery, type 6LR61 (included).
• Detector class L, detector without contact electrode extension.
• Indicators group 3, detector with alert state and indicator of “Voltage presence”.
• Indoor and outdoor use by appropriate insulating poles to the detector voltage range. Connection to the pole by Universal head.
• Manufactured according to IEC 61243:2003+A1:2009 and
• UNE-EN 61243-1:2006+A1:2011 standards (except voltage range).
• Supplied with carrying bag for pole and metallic box to store and transport the voltage detector.
