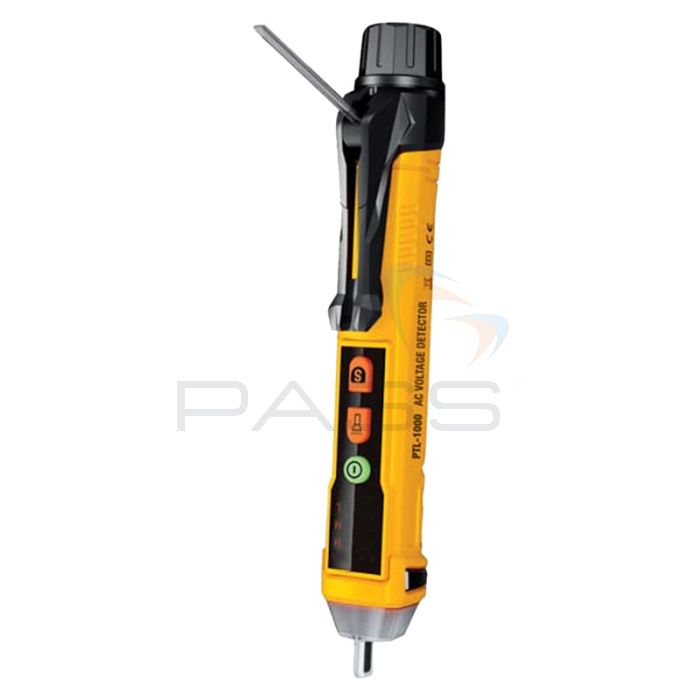

Sofamel PTL-1000 Non-Contact Voltage Tester - Optical & Acoustic

The Sofamel PTL-1000 has an adjustable voltage detection range and automatically distinguishes neutral and phase wires. It is easy to handle and a distinct alarm sounds with different coloured LEDs to indicate high, medium, and low voltage intensity.

The voltage detector is equipped with a folding screwdriver and can be stored and transported in the provided nylon case. According to standards EN 61010-1, IEC 62321, and EN 61326-1.

Key Features

• Alarm mode: Acoustic and light
• Measuring range: 12 VCA - 1000 VCA / 48 VCA - 1000 VCA
• Power supply: 2 x 1.5 V AAA batteries
• Frequency: 50 Hz / 60 Hz
• Overload category: CAT III 1000 V / CAT IV 600 V
• Operating temperature 0~50℃
• Storage temperature -20~60℃
• Altitude and humidity <2000m, < 85%
• Certificates: CE, RoHS
• Torch: White light LED lamp
• Automatic shutdown
• Low battery indication
• Neutral/phase cable evaluation
• Colour: Yellow
• Double sensitivity adjustment
• NCV intensity: Low, medium and high
• Distinguishes neutral wire and live wire (phase) automatically
• Equipped with a folding screwdriver
• Mini and compact, pen type, easy to carry
• Dimensions: 156 x 20 x 20 mm
• Easy battery replacement
• Weight: 45 g
