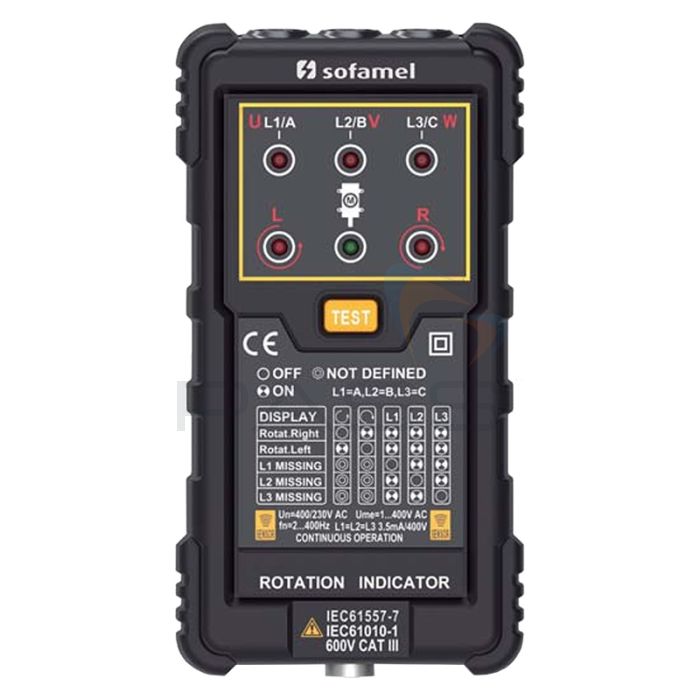

Sofamel IPR-400 Phase/Rotation Indicator

The Sofamel IPR-400 checks the direction of the rotating magnetic field in the three-phase system, the phase rotation, and the direction of motor rotation. The direction of motor rotation (direction of rotation) is detected by placing the IRP-400 on the motor and aligning it with the drive shaft with no need to connect any probes or cables.

The instrument is lightweight, resilient, and reliable making it ideal for electrical work with three-phase motors and systems. Includes different types of probes for any possible application.

Key Features

• Operating voltage: 120 V ~ 400 VAC
• Current consumption: ≤20 mA
• Frequency range: 2 Hz ~ 400 Hz
• Non-contact rotating field indication function
• Operating temperature: 0 °C a +40 °C
• Operating altitude: 2000 m
• Category: CAT III 600 V
• Certificates: CE, RoHS
• Power supply: 3 x 1.5 V AA batteries
• Dimensions: 128 x 70 x 30 mm
• Weight: 168 g
• Supplied with a nylon case for transport and storage.
• According to standards EN61010-1, EN61010-2-032, EN61326, and IEC 62321.
