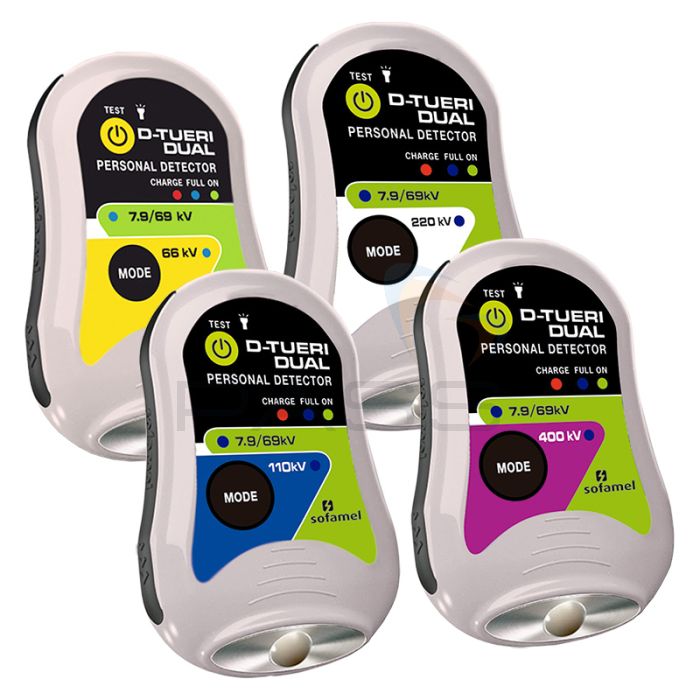

Sofamel D-Tueri Dual V2 Personal Voltage Detector

These Sofamel omnidirectional personal electric field voltage detectors are available in four modes. They provide an additional safety element for individual use indicated for power line operators who work close to live lines with the possibility of switching to a less sensitive operating mode and getting closer to the points in electrical tension.

Mode 7.9/69 kV

When the user is close to an electric field between 7.9 kV - 69 kV and exceeds a distance of approximately 2 metres for 7.9 kV and 5 meters for 69 kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

Mode 66, 110, 220, or 400kV

When the user is close to an electric field the detector sounds a signal and the alarm does not stop sounding until you move away from the dangerous zone.

• Electric field of 66 kV and exceeds a distance of approximately 1.4 meters the detector sounds a signal.
• Electric field of 110 kV and exceeds a distance of approximately 3 meters the detector sounds a signal.
• Electric field of 220 kV and exceeds a distance of approximately 4 meters the detector sounds a signal.
• Electric field of 400 kV and exceeds a distance of approximately 5 meters the detector sounds a signal.

• Use in Distribution / Transformation centers, Substations, and AC Airlines
• Utilization range:  7.9kV to 66, 110, 220, or 400kV
• Operating frequency: 50 and 60Hz
• Degree of protection: IP 65
• Luminous power:  2W
• Power supply: Li-ion battery 3.7V 1050mAh
• Can be placed both INSIDE and OUTSIDE, depending on the characteristics and requirements of the helmet
• Supplied in an insulated box that includes the detector, a nylon carrying case, a charger, and a USB cable.

What's Included?

• Detector
• Nylon carrying case
• Charger
• USB cable

Product Range

• Sofamel D-T DUAL 66kV V2 Voltage Detector D-Tueri Dual, 1.4m, 66 Kv
• Sofamel D-T DUAL 110kV V2 Voltage Detector D-Tueri Dual, 3m, 110 Kv
• Sofamel D-T DUAL 220kV V2 Voltage Detector D-Tueri Dual, 4m, 220 Kv
• Sofamel D-T DUAL 400kV V2 Voltage Detector D-Tueri Dual, 5m, 400 Kv
