Sofamel 645 VTE Voltage Detector

The Sofamel Sofamel VTE-5 models have advanced technology that guarantees a perfect and safe indication even in conflicting electric field environments. The detect the voltage by direct contact to indicate to the operator if there is an electric field and to be able to guarantee that the area is safe for work. The climate category is N and the conditions for use and storage are, from -25°C to +55°C for the temperature and, from 20% to 96% for the humidity. 5 to 36 or 66 kV options.

Key Features

• Voltage presence is indicated by high luminosity red LED and high acoustic pressure buzzer.
• Rated voltage: from 5 to 36 or 66 kV
• Frequency: 50 / 60 Hz
• Supplied with a metallic box to store and transport the voltage detector
• Voltage absence is indicated by high luminosity green LED.
• Low battery is indicated by an orange LED.
• Self-checking system for its complete circuit by pressing the test button.
• Stops working when low battery.
• Work temperature range: from -25°C to +55°C.
• Self-ignition when voltage presence.
• Auto turn-off into sleep mode after two minutes of voltage absence. In this mode, consumption is less than 1μA.
• Power supply: 9V alkaline battery, type 6LR61 (included).
• Indoor and outdoor use by appropriate insulating pole to the detector voltage
• Connection to the pole by Universal head.
• Detector class L, detector without contact electrode extension.
• Indicators group 3, detector with alert state and indicator of “Voltage presence”.
• Manufactured according to IEC 61243:2003+A1:2009 and
• UNE-EN 61243-1:2006+A1:2011 standards (except voltage range).

Product Range

• Sofamel VTE-5/36-U Medium Voltage Detector, 5 to 36 kV

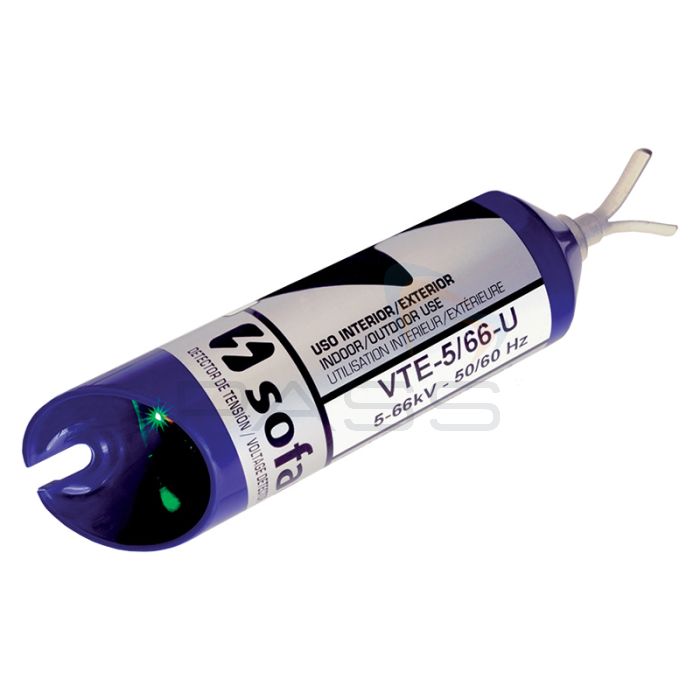

• Sofamel VTE-5/66-U Medium Voltage Detector, 5 to 66 kV
