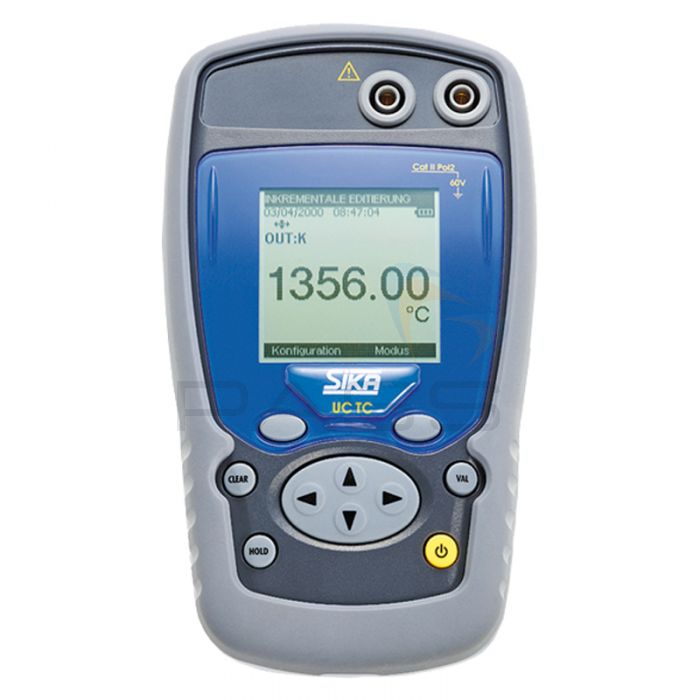

Sika UC TC Pocket Thermocouple Calibrator

The Sika UC TC is designed for testing thermocouples for correct opration and is ideal for use in calibration and maintenance.

Pocket-sized for easy transportation, the UC TC can be used either in the lab, or out on site. It performs voltage and temperature measuring, includes an emission function and includes linear step and ramp functions, 10 point flexible high-speed call values and editable measurement units.

The UC TC is a datalogging calibrator - it can store up to 10000 values in its memory. It can also connect to a PC via USB connection for control/programming and to download information (requires software, sold separately).

Sika UC TC Pocket Thermocouple Calibrator Key Features

• Measure and source thermocouples
• Compatible with type J, K, T, R, S, B, N, E, U, L and C thermocouples
• mV generator function with range of -9.5 to 80mV
• mV measurement function with range of -10 to 100mV
• ±0.02% accuracy
• Celsius/Fahrenheit temperature unit selection
• 10000 value data memory
• Value tables and graphics function
• Sensor characteristic offset programming
• Calibration data files and linearisation points (5 x 4 values)
• Measure MIN/MAX values
• Data hold function
• Averaging function

What's Included?

• Sika UC TC Pocket Thermocouple Calibrator
• User Manual
• 4 x AA Batteries (1.5V)
• Wrist Strap
• Protective Sheath
