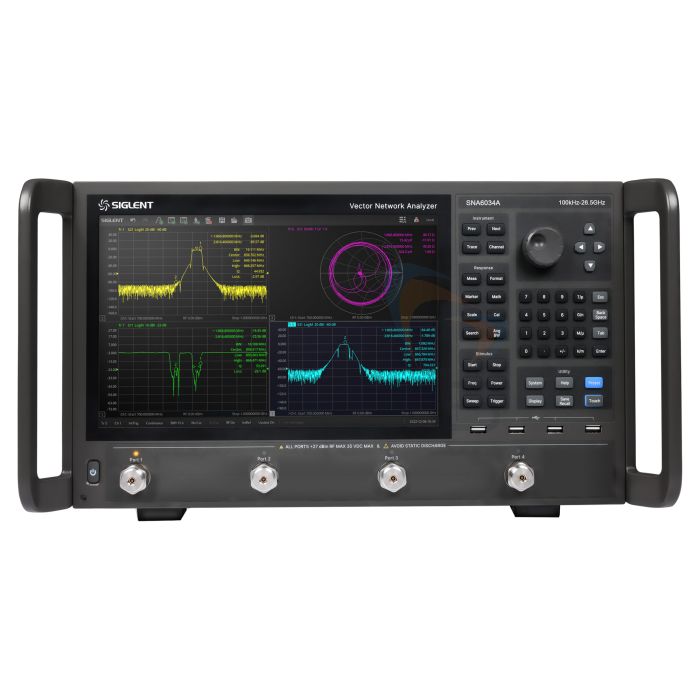

Siglent SNA6000A Vector Network Analyzer
Free Gift
- 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
- 2 or 4 ports
- Optional Front Panel Jumper Interface
- -55 dBm to +10 dBm
SKU
SNA6000A
The Siglent SNA6000A series offers eight models with bandwidths of 13.5 GHz and 26.5 GHz, available in 2-port and 4-port configurations. Each model has a standard or extended version featuring Direct Receiver Access (DRA), built on an integrated and scalable system to support future advancements.
With a dynamic range exceeding 135 dB, the SNA6000A delivers exceptional accuracy. This precision is particularly valuable in filter measurements, where it enables the evaluation of low insertion loss and high stopband attenuation. Pulsed-RF measurements permit precise analysis of short pulses, fast switching operations, and performance optimisation.
SIGLENT SNA6000A Introduction- Redefining Vector Network Analysis
Key Features
- Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
- Range of IFBW: 1 Hz to 10 MHz
- Dynamic Range: 135 dB
- Setting Range of Output Level: -55 dBm to +10 dBm
- Noise Floor: -135 dBm/Hz, 8 GHz to 20 GHz
- Standard Bias-Tee connection and pulse hardware
- 4-port models include a standard second source
- Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
- Number of Points: 2 to 100,001
- Frequency Resolution: 1 Hz
- Level Resolution: 0.05 dB
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote Control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
What's Included?
- Choice of Vector Network Analyser
- Power-cable
- USB-cable
- Wireless mouse
- Calibration certificate
- Protective cover
- Quick-start
Product Range
- Siglent SNA6022A Vector Network Analyser, 2 Ports, 13.5GHz
- Siglent SNA6024A Vector Network Analyser, 4 Ports, 13.5GHz
- Siglent SNA6032A Vector Network Analyser, 2 Ports, 26.5GHz
- Siglent SNA6034A Vector Network Analyser, 4 Ports, 26.5GHz
- Siglent SNA6122A Vector Network Analyser, 2 Ports, 13.5GHz & Front Panel Jumper Interface
- Siglent SNA6124A Vector Network Analyser, 4 Ports, 13.5GHz & Front Panel Jumper Interface
- Siglent SNA6132A Vector Network Analyser, 2 Ports, 26.5GHz & Front Panel Jumper Interface
- Siglent SNA6134A Vector Network Analyser, 4 Ports, 26.5GHz & Front Panel Jumper Interface
Offers
Free Insulated Screwdrivers
- CK Tools T4897 C.K VDE Precision Screwdriver Set - T4897, typically £27.35
Technical Information
Specification
| SNA6034A | SNA6032A | SNA6024A | SNA6022A | |
|---|---|---|---|---|
| SNA6134A | SNA6132A | SNA6124A | SNA6122A | |
| Frequency Range | 100kHz-26.5GHz | 100kHz-13.5GHz | ||
| Ports | 4 | 2 | 4 | 2 |
| Frequency Resolution | 1 Hz | |||
| Level Resolution | 0.05 dB | |||
| Range of IFBW | 1 Hz~10 MHz | |||
| Number of Points | 2 to 100,001 | |||
| Setting Range of Output Level | -55 dBm ~ +10 dBm | |||
| Dynamic Range | 135 dB | |||
| Types of Calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration | |||
| Types of Measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, Material Measurement | |||
| Bias-Tees | Support | |||
| Interface | LAN, USB Device, USB Host(USB-GPIB) | |||
| Remote Control | SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer | |||
| Display | 12.1-inch touch screen | |||
| Video Output | HDMI/DVI-D/DP | |||
| Operating Environment | ||||
| Temperature | 0 to 40 ℃ | |||
| Humidity | Type tested at 20 to 80%, wet bulb temperature < 29 °C (non-condensing) |
|||
| Altitude | 0 to 3000 m | |||
| Non-Operating Storage Environment | ||||
| Temperature | -20 ℃ to 60 ℃ | |||
| Humidity | Type tested at 20 to 90%, wet bulb temperature < 40 °C (non-condensing) |
|||
| Altitude | 0 to 15000 m | |||
| Size | WxHxD=426x251x494.5 mm | |||
| Weight | 4-port or SNA6034A/SNA6134A: 19 kg | |||
| EMC | ||||
| Conducted disturbance: CISPR 11/EN 55011 | CLASS A group 1, 150 kHz - 30 MHz | |||
| Radiated disturbance: CISPR 11/EN 55011 | CLASS A group 1, 30 MHz -1 GHz | |||
| Electrostatic discharge(ESD): IEC61000-4-2/EN61000-4-2 | 4.0 kV (contact), 8.0 kV (air) | |||
| Radio-frequency electromagnetic field Immunity: IEC 61000-4-3/EN 61000-4-3 | 10 V/m (80 MHz to 1 GHz) 3 V/m (1.4 GHz to 2 GHz) 1 V/m (2.0 GHz to 2.7 GHz) |
|||
| Electrical fast transients (EFT): IEC 61000-4-4/EN 61000-4-4 | 2 kV (AC power ports) | |||
| Surges: IEC 61000-4-5/EN 61000-4-5 | 1 kV (Line to line) 2 kV (Line to ground) |
|||
| Radio-Frequency Continuous Conducted Immunity: IEC 61000-4-6/EN 61000-4-6 | 3 V, 0.15-80 MHz | |||
| Voltage Dips and Interruptions: IEC 61000-4-11/EN 61000-4-11 | Voltage dips 0% UT during 1 cycle 40% UT during 10/12 cycles 70% UT during 25/30 cycles Voltage interruptions: 0% UT during 250 cycles |
|||
| Safety | UL 61010-1:2012/R: 2018-11; CAN/CSA-C22.2 No. 61010-1:2012/A1:2018-11. UL 61010-2-030:2018; CAN/CSA-C22.2 No. 61010-2-030:2018. |
|||
