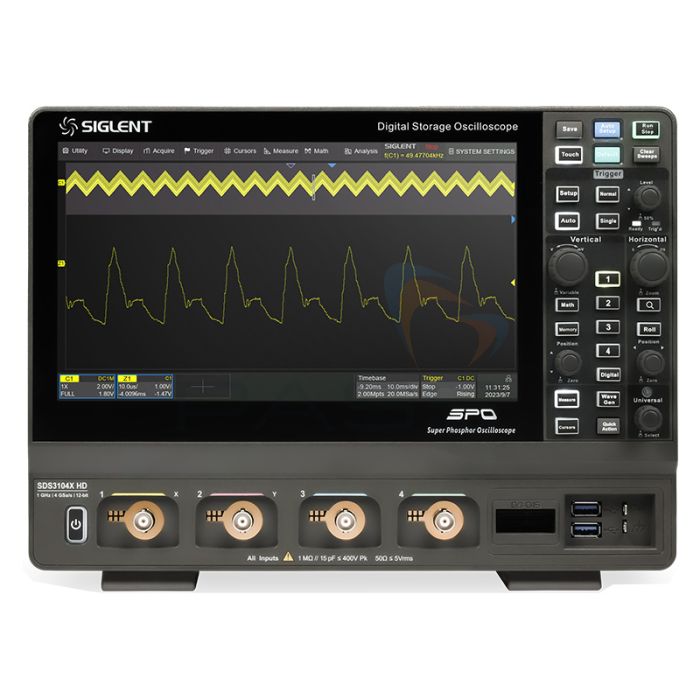

Siglent SDS3000X HD Series High Definition Oscilloscope - 350/500MHz/1GHz, 4 Channels

The SIGLENT SDS3000X HD series Digital Storage Oscilloscopes have 12-bit ADCs with a sample rate of up to 4GSa/s, a maximum record length of 400 Mpts/ch, and display up to 4 analog channels + 16 digital channels for high-performance mixed-signal analysis. The oscilloscopes are available in bandwidths of 1 GHz, 500 MHz, and 350 MHz.

The large 10.1' display capacitive touch screen supports multi-touch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.

The SDS3000X HD series employs Siglent's SPO technology with a maximum waveform capture rate of up to 200,000 wfm/ s, a 256-level intensity grading display function plus a colour temperature display mode. Includes an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering.

Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analyzed.

Key Features

• 350 MHz, 500 MHz, 1GHz models
• 12-bit high resolution
• Sampling rate up to 4 GSa/s
• Memory depth up to 400 Mpts
• Waveform capture rate up to 890,000 wfm/s (Sequence mode)
• Noise floor as low as 125 μVrms at 1 GHz full bandwidth
• 4 analog channels, up to 1 GHz bandwidth with up to 4GSa/s sample rate
• 12-bit ADC
• Low background noise: 125 μVrms @ 1 GHz bandwidth
• SPO technology
  • Waveform capture rates up to 200,000 wfm/s in Normal mode and 890,000 wfm/s in Sequence mode
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 400 Mpts/ch record length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder supports protocols I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester and ARINC429
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters support statistics with histogram, track, trend, Gating measurements, and measurements on Math, History, and Memory traces
• 4 Math traces (4 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, and Power Analysis
• High-Speed hardware-based Average, ERES; High-Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels (optional)
• External 50 MHz waveform generator (optional)
• Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
• Interfaces include: 2x USB 3.0 Host, 1x USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN ((VXI-11/Telnet/Socket/LXI)), External Trigger In, Aux Out (Pass/Fail, Trigger Out)
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
