Seaward Primetest 250+ PAT Tester - Pro Bundle + Software
This kit is identical to Seaward's PrimeTest 250+ Pro Bundle, but also comes with a copy of Seaward PATGuard Elite 3 Software (1 Year License).
If you're a professional PAT tester regularly testing appliances, you can't go wrong with this pack. It includes everything you need to test, a printer for easy label creation, a checkbox to verify accuracy and even a large size carrying bag.

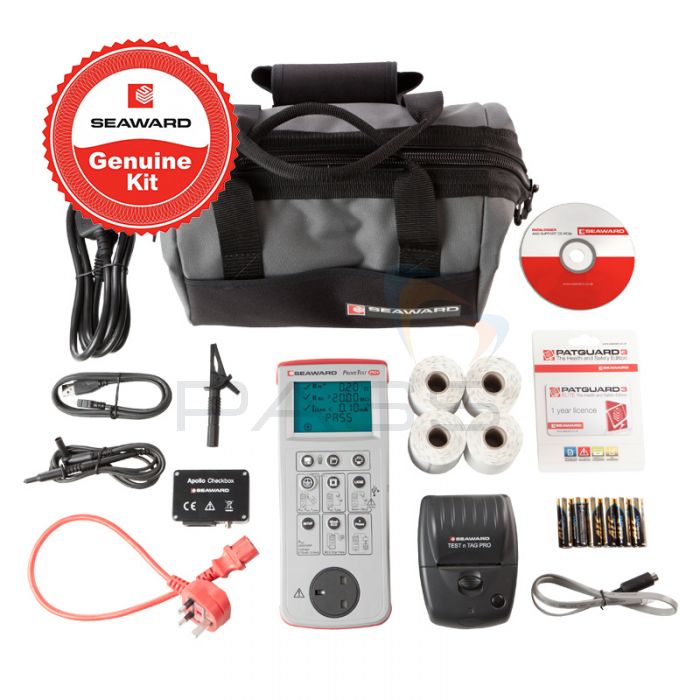

What's Included?
- Seaward PrimeTest 250+ PAT Tester
- Datalogger Software (Trial Version)
- 0.5m Extension Adapter
- Earth Lead with Probe and Clip
- Mains Lead
- 6 x AA Batteries
- USB Download Lead
- Carrying Case
- Operating Instructions
The Pro bundle also comes with:
- Test n Tag Pro Printer (Serial Model)
- 4 x Test n Tag Printer Label Rolls (52mm x 25mm)
- PrimeTest Checkbox
- PATBag Carrying Case
- Cloverleaf Adaptor
- Online PAT Training Course
- Guide to PAT Testing
- 1 Year License for Seaward PATGuard Elite 3 Software
About the Seaward PrimeTest 250+ PAT Tester
Seaward's easiest-to-use, downloadable tester with internal memory for storing your testing results.
Handheld, portable and designed to make PAT testing as simple as possible, the Seaward PrimeTest 250+ performs all tests required by the IET Code of Practice, instantly prints out labels with the included printer and - at the touch of a button - can transfer stored testing to PC via USB connection.
Seaward PrimeTest 250+ (plus)
As standard, records stored on the PT250+ are transferred in CSV format, allowing them to be opened with Excel or a similar program. Alternatively, you can also use the included PATGuard Elite 3 software to create professional reports and certificates based on your data.
Key Features
- Downloadable PAT tester with internal 999 appliance record memory
- Extremely easy to use - quick access buttons for easy test activation
- Plug and print - simply insert Seaward's printer (sold separately) for quick label printing
- Date stamped results for full traceability
- Single key save and downloading
- Stores results in CSV format - ports directly into programs similar to Excel or Seaward's PATGuard software
- Low current earth continuity test to ensure accurate measurements
- Insulation resistance test at 250 and 500V
- IEC lead testing
- Protective conductor current test
- 3 phase leakage current test (requires adapter)
- Alternative leakage current test
- RCD test at 30mA and 150mA
- Power socket test
About Seaward's PATGuard Elite 3 Software
With PATGuard 3 you can take full control over every aspect of your PAT testing.
The software is suitable for use with both manual and downloadable PAT testers and can be used for a wide variety of tasks, including tagging photos to sites, locations and asset IDs, performing electrical risk assessments and generating professional reports
An introduction to the benefits of PATGuard 3 PAT software
Please note that PATGuard 3 elite is a subscription-based software package and will require renewal upon expiry.
Free Complete Guide to EET (PAT) Testing
- PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £24.99
Seaward PrimeTest 250+ Technical Specifications
| Earth Continuity | |
| Output Current |
200mA minimum into 2Ω |
| Test Voltage (o/c) | 9V DC nominal |
| Test Duration (Class I Test) | 2s nominal |
| Display Range | 0.01Ω to 19.99Ω |
| Pass Value (Class I Test) | 0.2Ω |
| Insulation Resistance | |
| Test Voltage | 250/500V DC @1mA nominal, <2mA (s/c) |
| Test Duration (Class I or II) | 2s |
| Display Range | 0.01MΩ to 19.99MΩ |
| Pass Value | Class I: 1.0MΩ Class II: 2.0MΩ |
| Equivalent Leakage | |
| Test Voltage | 40V Nominal AC 50Hz Open Circuit |
| Test Duration | 2s |
| Display Range | 0.1mA to 19.99mA |
| Pass Value | 0.75mA/3.5mA (user selectable with 0.75mA as default)/0.25mA CL II |
| IEC Lead Test | |
| Test Voltage | 5V DC Nominal |
| Test Duration | Time for Test (2s max) |
| Test | Live/Neutral Checks for o/c, s/c and crossed |
| Protective Conductor Current | |
| Test Voltage | Supply voltage, max current 13A |
| Test Duration | 120s Maximum |
| Display Range | 0.15mA to 9.99mA |
| Pass Value | 0.75mA/3.5mA (user selectable with 0.75mA as default) |
| Touch Current | |
| Test Voltage | Supply voltage, max current 13A |
| Test Duration | 120s maximum |
| Display Range | 0.10mA to 3.50mA |
| Pass Value | 0.25mA |
| 3 Phase Differential Leakage Current *Requires 3 phase adaptor accessory |
|
| Test Voltage | 3 phase supply voltage |
| Test Duration | Continuous measurements |
| Display Range | 0.10mA to 9.99mA |
| Pass Value | 0.75mA/3.5mA (user selectable with 0.75mA as default) |
| RCD Trip Time | |
| Test Voltage | Mains supply voltage |
| Test Current | 30mA/150mA rms sinusoidal |
| Test Current Phase | 0/180° auto switched on alternate tests |
| Measuring Range | 0ms to 500ms |
| Pass Value | 200ms |
| Power Socket Check | |
| Input Voltage Range | 225-254V AC max current 13A UK |
| Indicates configuration of voltage potential: | Line to earth, line to neutral, neutral to earth |
| General | |
| Memory Size | 999 Test Records |
| Power Source | 6 x AA Batteries |
Reviews
Additional Information
| SKU | 403A955-KIT |
|---|---|
| Manufacturer Part Code | 403A955-KIT |
| Model Ref | PT250+ PRO S/W KIT |
