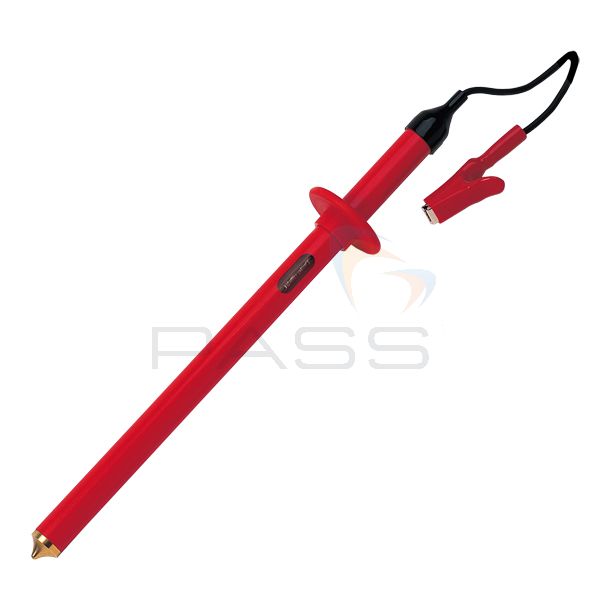

Seaward KD1E/22 Neon HV Potential Indicator (3-22KV)

Duplicate neon indicators within shock resistant sleeves
Permanently connected earth cable
Hand guards on all elements.

SKU

SEAHV9

MPN

113A912

View All High Voltage Indicators & Detectors

Description Technical Info Reviews Accessories

Part of Seaward's KD1E range of neon HV potential indicators, this version of the device can be used to make connections (via a domed contact electrode) to systems up to 22kV. This makes this product ideal for use in confirming the presence of voltage on earthed neutral electrical circuits.

This device uses encapsulated resistor chains and is made from high grade PVC tubing for extreme durability. It also conforms to all creepage/safety standards and is suitable for use as both an AC and DC voltage indicator.

Also includes as part of the KD1E/22 are duplicate neon indicators protected by shock-resistant sleeves, a permanently connected earth cable and a hand guard for protection of the user.

Seaward KD1E/22 Neon HV Potential Indicator Key Features

Duplicate neon indicators
Suitable for use on HV systems to 22kV
Permanently connected earth cable
Hand guards
Direct access to vertical or horizontal metal clad switch gear
UK Electricity Council Approval list G9

£775.00

£930.00 inc vat

Free Delivery*

Only 1 in Stock: Available Next Working Day*

775 Reward Points 60 Days Return

Technical Information

Specification

Seaward KD1E Comparison Chart

The Seaward KD1E is available in several different variations. Use this handy comparison chart to pick exactly which one you need for your application.

Indicator Type	KD1E	KD1E/19	KD1E/19S	KD1E/22	KD1E/33	KD1E/15D	KD1E/33D
Maximum System Voltage	11kV	19kV	19kV	22kV	33kV	15kV	33kV
Maximum Voltage to Earth	6.6kV	11kV	11kV	12.5kV	19kV	8.6kV	19kV
Threshold Voltage	300V	300V	300V	300V	300V
Measuring Range						0.00kV - 8.6kV	0.00kV - 19.9kV
Resolution						10V	100V
Sensitivity	AC/DC	AC/DC	AC Only	AC/DC	AC/DC	AC/DC	AC/DC
Circuit Current	2.3mA nominal	0.7mA nominal	0.9mA nominal	3.5mA nominal	1.1mA nominal	0.5mA nominal	1.1mA nominal
(IEC 61234-2)	@6.6kV	@11kV	@11kV	@12.5kV	@19kV	@8.6kV	@19kV
Dielectric Leakage Current	7μA nominal	11μA nominal	12μA nominal	12μA nominal	17μA nominal	9μA nominal	17μA nominal
(IEC 61243-2)	@13.8kV	@ 22.8kV	@ 22.8kV	@ 26.4kV	@ 40kV	@ 18V	@ 140kV
Length (mm)	330	330	330	665	670	600	600
Diameter (mm)	25	25	25	25	25	25	25
Handle Length (mm)	105	105	105	90	250	235	235
Hand Guard Height (mm)	23.5	23.5	23.5	23.5	23.5	23.5	23.5
Contact Electrode Type)	Domed	Flat	Flat	Domed	Domed	Domed	Domed
