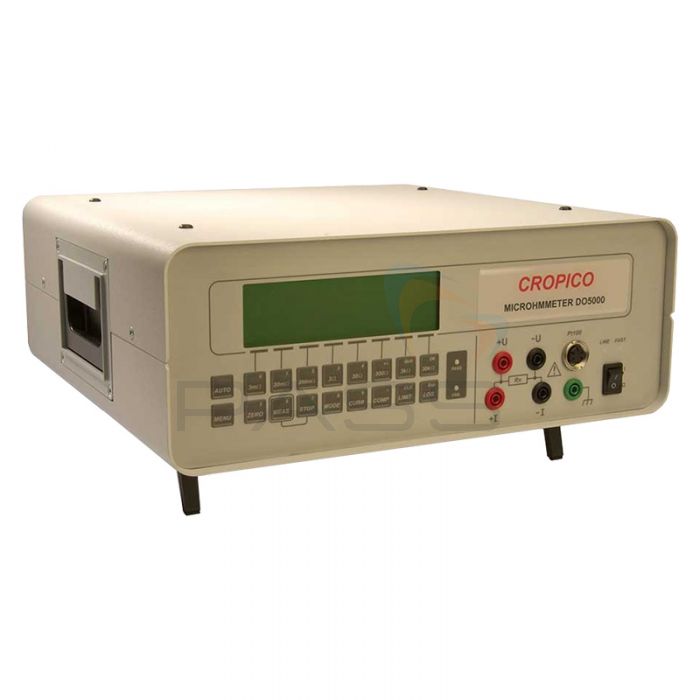

Seaward Cropico DO5000 Mains-Powered Digital Low Resistance Ohmmeter

Ideal for production and laboratory environments, the Seaward Cropico DO5000 is a mains-powered solution for measuring low resistance levels with a high degree of accuracy.

With measurement range from 3mΩ to 30kΩ and 100 nano-ohm resolution, the DO5000 is suitable for use in a wide variety of applications. The test current used is variable from 10μA up to 10A, with the ability to program the current from 10 to 100% in 1% steps. To ensure accurate results, the DO5000 uses true 4 terminal measurements, filtering out lead resistance errors.

This low resistance ohmmeter is perfectly suited for use in laboratory sample testing, for use as part of a production line's testing and - with the use of IEE-48 or PLC interface - can be remotely controlled and directly integrated into an automated testing system.

The Seaward Cropico DO5000 includes built-in datalogging capabilities, allowing up to 4000 date and time stamped readings to be stored directly in the ohmmeter's internal memory. You can also perform statistical analysis of these values, allowing you to determine MIN/MAX/Average values as well as peak-to-peak and standard deviation.

Users should be aware that this unit can be powered by mains connection only. The upgraded version of this unit, the DO5001, has the ability to be powered via mains or batteries.

Seaward Cropico DO5000 Mains-Powered Digital Low Resistance Ohmmeter Key Features

• High accuracy digital micro ohmmeter suitable for use in a wide variety of applications ranging from production lines to laboratories
• Reliable accurate results - test lead resistance errors are filtered out thanks to true 4 terminal measurements
• Wide measurement range from 3mΩ to 30kΩ
• Excellent resolution as low as 100μΩ
• True zero capabilities
• Digital calibration
• Autimatic temperature compensation with programmable coefficients
• Open circuit lead warning
• Variable current range from 10μA to 10A
• Programmable current - 1% steps from 10 to 100%
• Highly accurate measurements within 0.03%
• Fast measurement capability - up to 50 measurements per second in fast measurement mode
• Programmable high and low limits with red/green lamps on front panel
• Open circuit voltage limit mode - 20mV/50mV maximum
• Measuring current selection with auto average
• Datalogging capabilities - store up to 4000 time and date stamped records in internal memory
• Perform statistical analysis on stored records - includes MAX/MIN, average, peak-to-peak and standard deviation
• Cable length calculations
• RS-232 interface

What's Included?

Please note that the leads required for measurements are NOT supplied with the DO5000 as standard. See the optional accessories section for a range of compatible leads and test fixtures.

• Seaward Cropico DO5000 Low Resistance Ohmmeter
• Mains Cord
• Operating Manual
• Calibration Certificate
• LS05-P Lead Sets Certificate

Optional Accessories

Need any of the items listed below? Please contact our sales department quoting the part number for price and availability.

Seaward Cropico's Full DO5000 Series Comparison

The DO5000 series consists of three models. The DO5000 is the standard, mains-powered model; the DO5001 is identical to the DO5000 with mains/battery power and the DO5002 has lower current capabilities.

This table outlines the full difference between each model in the series:
