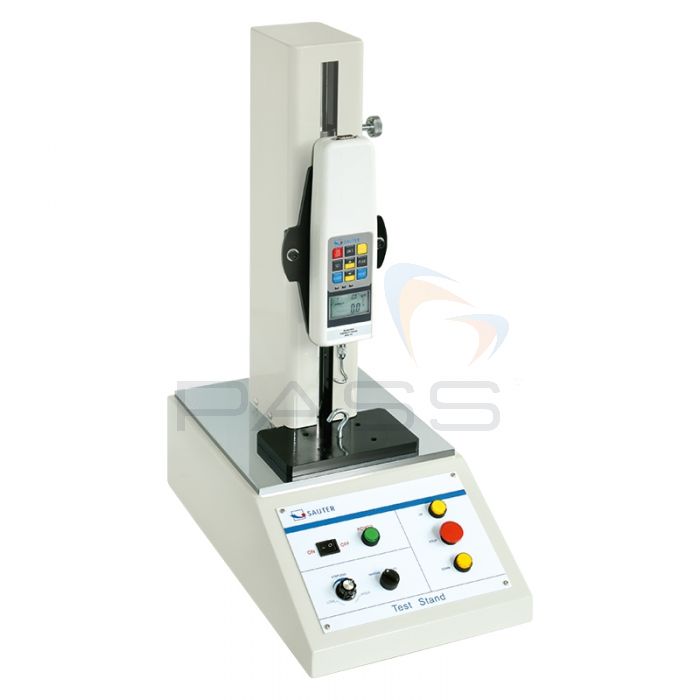

Sauter TVO 500N300 Premium Laboratory Motorised Test Stand

SKU

TVO 500N300

Rating:

(0)

Call For Pricing

This is a bulky item and requires a shipping quote

or Call 01642 931 329 to discuss product options

Sauter TVO 500N300 Premium Laboratory Test Stand

Description

The Sauter TVO 500N300 Premium Laboratory Motorised Test Stand includes an electronic motor. It can be used with force gauges featuring ranges up to 500N in order to conduct compression and tension tests.

It is possible to program the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand to include upper and lower endpoints; each endpoint can be programmed individually. This test stand also includes manual and automatic operation modes allowing the user to tailor the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand to his/her preferences and/or requirements.

With regards to its practicality, the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand features a robust, table-top design for durability and ease-of-operation. Further to this, the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand has been optimised to facilitate easy access to the off switch thereby improving its safety.

The Sauter TVO 500N300 Premium Laboratory Motorised Test Stand is an adaptable, practical and easy-to-use test stand with an electronic motor.

Sauter TVO 500N300 Premium Laboratory Motorised Test Stand Key Features

A motorised test stand with an electronic motor
Use with force gauges featuring ranges up to 500N
Conduct compression and tension tests
Individually programmable upper and lower endpoints
Manual operation mode
Automatic operation mode
Robust, table-top design
Easy access to the off switch
An adaptable, practical and easy-to-use test stand

What’s Included?

Sauter TVO 500N300 Premium Laboratory Motorised Test Stand

Accessories

There are a number of accessories available for the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand. For further information, or to add an item listed below to an order, please contact our sales team PRIOR to purchase.

Product Code	Product Name
LB-X	Sauter LB Digital Sliding Calliper Length/ Distance Meters - Choice of Models
LB-A02	Mounting of the LB Length/ Distance Meter onto the Sauter TVO 500N300 Premium Laboratory Motorised Test Stand (MUST BE ORDERED AT THE TIME OF PURCHASE)
AFH FAST	Sauter Force-time Data Transfer Software
AFH FD	Sauter Force-displacement Data Transfer Software
FH-S	Sauter FH Universal Digital Force Gauge - Internal Measuring Cell - Choice of Models with Ranges up to 500N

Tech Specs

Sauter TVO 500N300 Premium Laboratory Motorised Test Stand Technical Specifications

Construction
Casing material	Metal lacquered
Dimensions (W×D×H)	236 mm x 428 mm x 570 mm
Direction of measurement	vertical
Maximum generated force	500 N
Maximum travelling distance	30 cm
Operation speed	17,964 m/s
Operation speed	0,015 m/min
Overall dimensions mounted (W×D×H)	570 mm x 428 mm x 236 mm
Speed accuracy (of [Max])	2 %
Power Supply
Input voltage	230 V AC 50 Hz
Mains adapter/adapter included	EURO
Functions
Electrical limit switches	yes
Repeat function	yes
Environmental Conditions
Maximum operating temperature	40 °C
Minimum ambient temperature	10 °C
