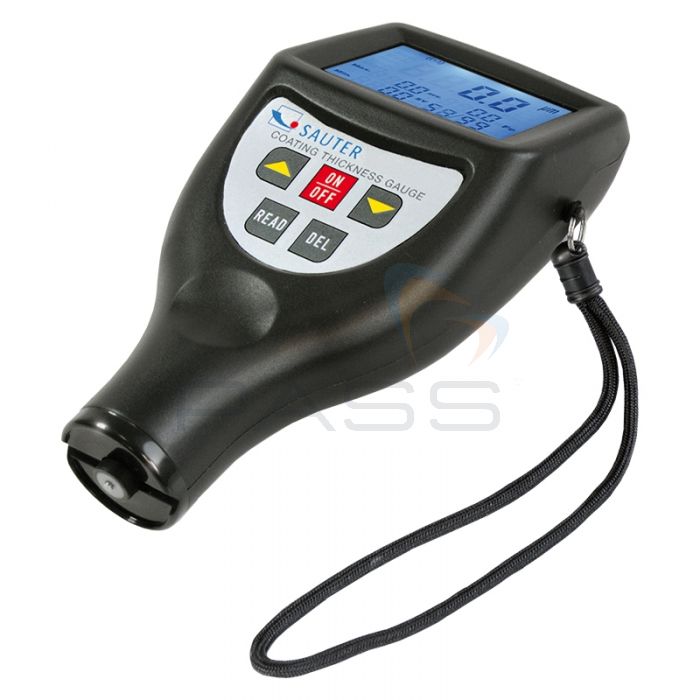

Sauter TF 1250.01FN Digital Coating Thickness Gauge

SKU
TF 1250-0.1FN
Rating:
0%
(0)
Reward Points
:
462
£555.36 £462.80
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Sauter TF 1250.01FN Digital Coating Thickness Gauge

The Sauter TF 1250.01FN Digital Coating Thickness Gauge is designed for measuring the thickness of coatings on metals. This combination instrument is equipped with two modes that facilitate the measurement of different material combinations:

  • F mode: measure the thickness of non-magnetic coatings on magnetic metals
  • N mode: measure the thickness of insulating coatings on non-magnetic metals

This instrument is a dual scale instrument with maximum measurement ranges of 100µm and 1250µm. Readings can also be displayed in mil.

In addition to viewing the measurement result via the backlit, LCD display, the user may also view the maximum value, the minimum value and the average value; thereby providing the user with all the necessary information simultaneously. Data can be saved to the Sauter TF 1250.01FN Digital Coating Thickness Gauge’s internal memory; it has the capacity to store up to ninety-nine values.

Further to this, it is possible to export data using the supplied RS-232 data interface. The Sauter TF 1250.01FN Digital Coating Thickness Gauge is also supplied with a robust carrying case, ensuring that it can be safely transported between rugged worksites, as well as a base plate and calibration foils. These accessories can be used to maintain the Sauter TF 1250.01FN Digital Coating Thickness Gauge’s accuracy.

The accuracy of the Sauter TF 1250.01FN Digital Coating Thickness Gauge can be improved to approximately 1% of the measured value using the Focus function. This function allows the user to adjust the gauge precisely on the locally measured range by a two-point calibration.

In addition to the Focus function, the Sauter TF 1250.01FN Digital Coating Thickness Gauge also includes a Zeroing function and a Scan function. The latter feature can be used to perform continuous measuring or single point measuring, allowing the user to tailor the gauge to his/her application.

The Sauter TF 1250.01FN Digital Coating Thickness Gauge is versatile, adaptable and easy-to-use. It is ideal for measuring the thickness of paint and lacquer coatings.

Sauter TF 1250.01FN Digital Coating Thickness Gauge Key Features

  • Designed for measuring the thickness of coatings on metals
  • Equipped with two modes facilitating the measurement of different material combinations
  • F mode: measure the thickness of non-magnetic coatings on magnetic metals
  • N mode: measure the thickness of insulating coatings on non-magnetic metals
  • Dual scale
  • Maximum measurement ranges of 100µm and 1250µm
  • Readings can be displayed in µm or mil
  • Backlit, LCD display
  • Statistics display: view the measured result, maximum value, minimum value and the average value
  • Internal memory with the capacity to store up to ninety-nine readings
  • Supplied with an RS-232 data interface
  • Supplied with a robust carrying case
  • Supplied with a base plate and calibration foils
  • Focus function: improve accuracy to 1% of the measured range by adjusting the gauge on a locally measured range by a two-point calibration
  • Zeroing function
  • Scan function: perform continuous measuring or single-point measuring
  • Versatile, adaptable and easy-to-use
  • Ideal for measuring the thickness of paint and lacquer coatings

What’s Included?

  • Sauter TF 1250.01FN Digital Coating Thickness Gauge
  • Base Plate and Calibration Foils
  • RS-232 Data Interface
  • Robust Carrying Case
  • 2x 1.5V AAA Batteries

Accessories

There are a number of accessories available for the Sauter TF 1250.01FN Digital Coating Thickness Gauge, such as Kern factory calibrations. For further information, or to add an item listed below to an order, please contact our sales team PRIOR to purchase.

Product Code Product Name
961-112 Kern Factory Calibration Certificate
ATC-01 Sauter Data Transfer Software
ATB-US07 Sauter Calibration Foils

Sauter TF 1250.01FN Digital Coating Thickness Gauge Technical Specifications

Construction
Casing material Plastic
Dimensions (W×D×H) 35 mm x 65 mm x 126 mm
Overall dimensions mounted (W×D×H) 126 mm x 65 mm x 35 mm
Service
Factory calibration certificate 961-112
Display
Display digit height 10 mm
Power Supply
Operating time 50 h
Functions
Statistical function yes
Measuring System
Measuring range [Max] 100 µm x 1250 µm
Minimal base thickness 300 µm
Precision (of [Max]) 3 %
Precision (Offset-Accur) 1 %
Readability [d] 0 mm x 0,001 mm
Smallest sample surface, convex (radius) 1,500 mm
Smallest sample surface,concave (radius) 2,500 cm
Weighing units µm inch (mil)
Environmental Conditions
Maximum operating temperature 50 °C
Minimum ambient temperature 0 °C

Reviews

Additional Information
SKU TF 1250-0.1FN
Manufacturer Part Code TF 1250-0.1FN
Country of Origin China
