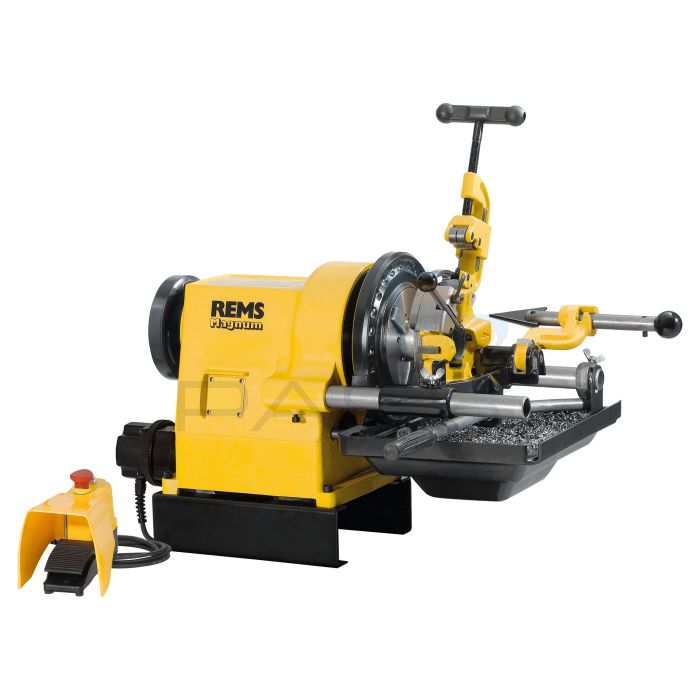

REMS Magnum 2000 L-T Threading Machine

The REMS Magnum 2000 L-T handles threading, cutting, deburring, and roll grooving and operates on a 230 V or 110 V universal motor. It has a power rating of 1700 W and a spindle speed of 53 rpm. It can tolerate pipe threads from ⅛" to 2" (16 - 63 mm) and bolt threads from ¼" to 2" (8 - 60 mm).

A foot switch provides full-body-weight operation and emergency-stop functionality. The universal automatic die head simplifies threading with easy thread-size adjustments and lock-in die positioning. Additional features include a self-centring pipe cutter and an inner pipe deburring equipped with adjustable positioning.

Key Features

• Universal motor: 240 V or 110 V
• Power: 1700 W
• Frequency: 50 - 60 Hz
• Spindle speed: 53 rpm
• Weight: 62 kg
• Pipe thread capacity: ⅛ - 2" (16 - 63 mm)
• Bolt thread capacity: ¼ - 2" (8 - 60 mm)
• Pipe grooving range: DN 25 - 300 (1 - 12")
• Quick-action hammer chuck with self-tightening
• Operator-friendly safety foot switch with emergency stop
• Universal automatic die head with lock-in positioning
• High-quality REMS dies made from special-grade steel
• Pipe cutter with ergonomic handle
• Inner pipe deburrer with adjustable positioning

What's Included?

• Thread cutting machine
• Tool set (¹/16) ⅛ - 2"
• REMS dies R ½ - ¾" and R 1 - 2"
• Oil tray
• Chip tray
• Operating instructions

Product Range

• REMS 340226R110G Magnum 2000 L-T Threading Machine (Universal Motor, 110v)
• REMS 340226R220G Magnum 2000 L-T Threading Machine (Universal Motor, 240v)
