REMS CamSys2 Electronic Camera Inspection System

The REMS CamSys 2 mobile camera inspection systems perform damage analysis of pipes, drains, chimneys, and other cavities. They capture high-quality images and videos with voice recording, storing them on an SD card. Their self-levelling camera and built-in transmitter assist in locating camera heads and operate on battery or mains power.

The lightweight controller unit has a 7-inch TFT-LCD display, glare protection, ergonomic grips, and easy one-hand operation, offering 2x zoom and 4x picture rotation. The SD card slot allows real-time image and video capture with date, time, insertion depth storage, and USB and video output options for quick data transfers.

The REMS CamSys 2 utilises a high-resolution colour camera with adjustable LED lighting and a CMOS sensor, providing bright, detailed images even in low light. Different camera cable sets, such as the S-Color, S-Color S, and S-Color S-N, support pipe diameters from 50 mm to 150 mm, ensuring flexibility and easy manoeuvrability. Four models are available.

Key Features

• Mobile, lightweight design
• Self-leveling camera
• Transmitter for locating camera heads
• Electronic metering
• SD card documentation with voice recording
• Battery and mains operation
• 7” TFT-LCD color display
• High-resolution colour camera with adjustable LEDs
• Multiple camera cable sets for varying diameters
• Waterproof camera head
• USB and video output connections

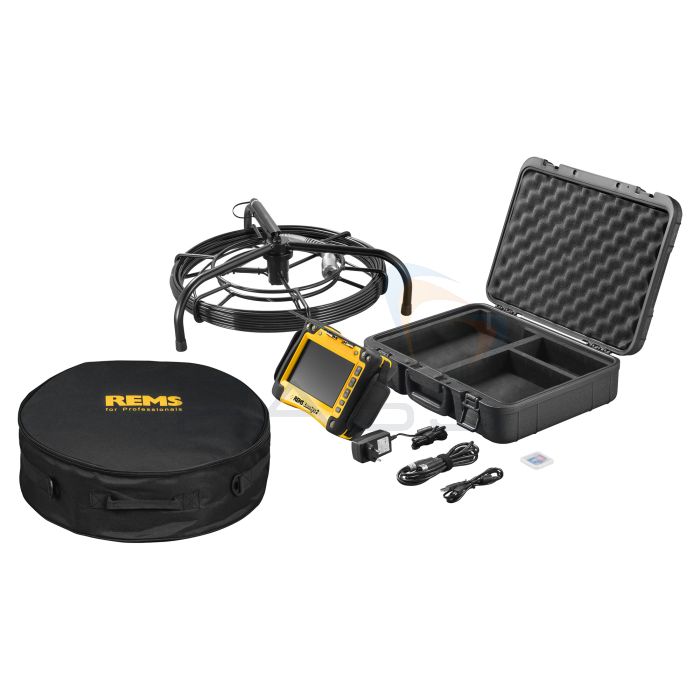

What's Included?

• Controller unit
• Connecting cable
• Power supply unit/charger
• SD card 4 GB, USB cable
• Case
• Cable reel
• Operating instructions
• REMS CamSys Set S-Color 10 K
  • Camera cable set with camera head Ø 25 mm with 10 m push cable
• REMS CamSys Set S-Color 20 H
  • Hasp
  • Camera cable set with camera head Ø 25 mm with 20 m push cable
• REMS CamSys Set S-Color S 30 H
  • Hasp
  • Camera cable set with camera head Ø 25 mm with transmitter and 30 m push cable
• REMS CamSys Set S-Color S-N 30 H
  • Hasp
  • Camera cable set with camera head Ø 33 mm with transmitter and 30 m push cable

Product Range

• REMS 175301R220G CamSys2 Electronic Camera Inspection System - Set S-Colour 10 K, 10m cable
• REMS 175302R220G CamSys2 Electronic Camera Inspection System - Set S-Colour 20 H, 20m cable
• REMS 175303R220G CamSys2 Electronic Camera Inspection System - Set S-Colour S 30 H, 30m Cable, Ø 25mm
• REMS 175304R220G CamSys2 Electronic Camera Inspection System - Set S-Colour S-N 30 H, 30m Cable, Ø 33mm
