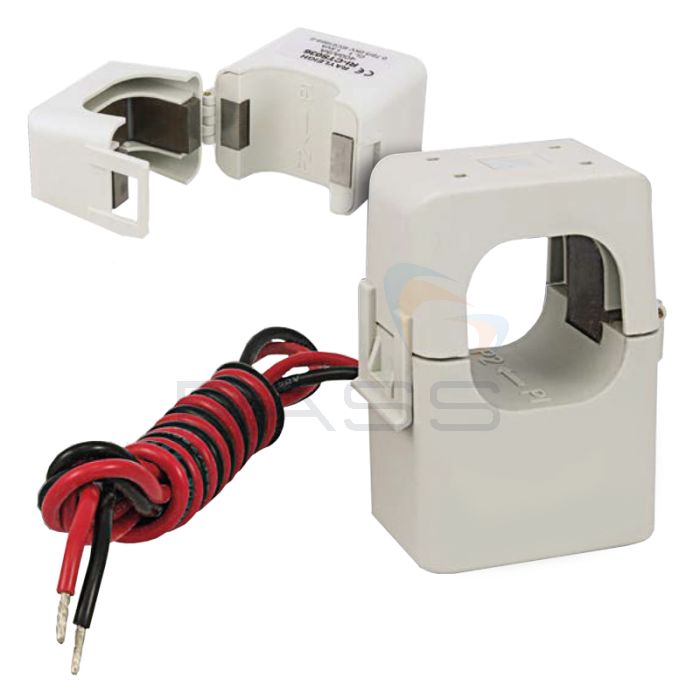

RDL-400SCT-1MC Compact Split Core Current Transformers (Set of 3), 1m, 400A
The RDL 400SCT-1MC belongs to the RI-CTS036 Series, which is part of a comprehensive family of split-core single-phase moulded case current transformers manufactured by Rayleigh Instruments.
The RDL 400SCT-1MC features a primary current input range of 400A and monitors current flow in commercial, industrial, or utility applications. It can connect to standard metering or relay products that require a 5A or 1A output.
One of the key advantages of the RDL 400SCT-1MC is its ease of installation. It can integrate into existing plants without removing busbars or cable lugs. Additionally, the transformer case includes clear markings to indicate the correct direction of primary current flow, minimizing the risk of installation errors.
Key Features
- 400A Primary current
- 5A or 1A Secondary output
- 57.5mm width
- 36mm cable aperture
- Integral 1-metre cable
- Snap together housing
- Compact design
- Indication of primary current flow (arrow on case body)
| Rated Standard | |
|---|---|
| Rated Primary Current (Ipr) | 400A |
| Frequency Range (fR) | 47…63Hz |
| Rated Continuous over Current (Icth) | 1.2 x rated current |
| Rated Short Time Thermal Current (Ith) | ≤60 x Ipr |
| Rated Dynamic Current (Idyn) | 2.5Ith |
| Instrument security factor (FS) | ≤5 |
| Rated Secondary Output | 5A or 1A |
| Accuracy Class | Class 1 to IEC/EN61869-2 |
| Insulation | |
| Insulation Type | Dry transformer, air insulation |
| Highest Voltage (Um) | 0.72kV r.m.s. |
| Rated Insulation Level | 3kV r.m.s. 50Hz/1 min |
| Environmental Conditions | |
| Reference Temperature | 23°C ±1°C |
| Nominal Temperature Range | -5°C…40°C |
| Limit Temperature Range for Storage | -40°C…85°C |
| Relative Humidty | ≤85% non condensing |
| Altitude | ≤1000 metres |
| Housing | |
| Housing Material | Fire resistant UL94-V0 |
| Protection Degree (IEC/EN60529) | IP40 housing, Terminals IP20 |
| Mounting | Snap together housing |
| Weight | ≥450g |
| Connections | |
| Primary Winding | Passing cable |
| Secondary Winding | Integral 1-metre cable |
| Secondary Connections | Red - S1 (K) / Black - S2 (L) |
Reviews
Additional Information
| SKU | RDL-400SCT-1MC |
|---|---|
| Manufacturer Part Code | RDL-400SCT-1MC |
