RDL 400/5A Split Core Current Transformer (50x80mm Aperture) – Set of 3

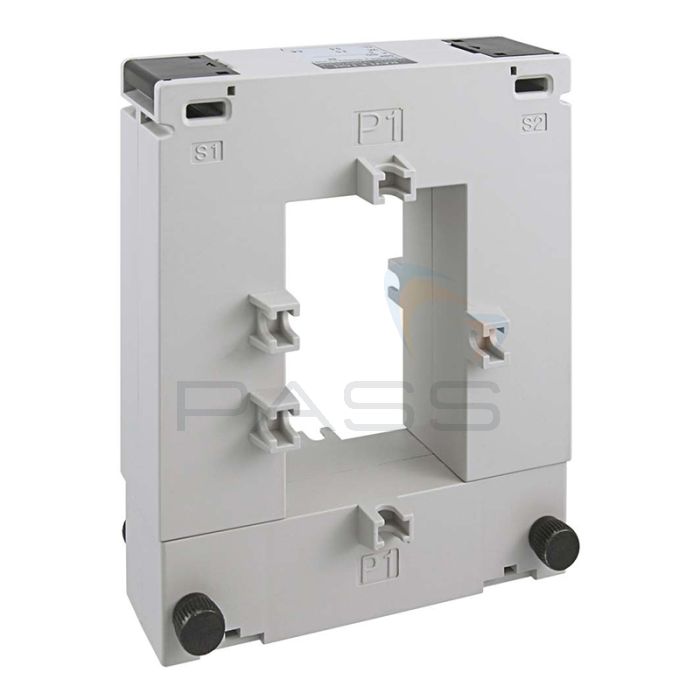

RDL 400/5A Split Core Current Transformer
This set of three split-core single-phase current transformers can be used to monitor the current flow in commercial, industrial, and utility plants. The RDL 400/5A Split Core Current Transformer is designed to be easily installed into existing systems without having to remove busbars or cable lugs. Furthermore, to minimise installation errors, it features clear markings on a moulded case that indicate the correct direction of the current flow. The RDL 400/5A Split Core Current Transformer can be connected to any standard metering or relay instrument requiring a 5A output. It has a primary current input range of 400A and features a 50x80mm aperture.
Key Features
- Three split-core single-phase current transformers
- Monitor current flow in commercial, industrial, and utility plants
- Easy to install into existing systems
- Clear markings indicate the correct direction of the current flow
- Moulded case
- Width: 115mm
- 50x80mm aperture
- Connect to any standard metering or relay instrument requiring a 5A output
- Primary current input range: 400A
What’s Included?
- 3x RDL 400/5A Split Core Current Transformer (50x80mm Aperture)
RDL 400/5A Split Core Current Transformer (50x80mm Aperture) Technical Specifications
| Rated Standard | |
| Rated Primary Current (Ipr) | 400A |
| Frequency Range (fR) | 47…63Hz |
| Rated continuous over current (Icth) | 1.2 x rated current |
| Rated short time thermal current (Ith) | ≤60 x Ipr |
| Rated dynamic current (Idyn) | 2.5Ith |
| Instrument security factor (FS) | ≤5 |
| Rated Secondary output | 5A |
| Accuracy class | Class 1 to IEC/EN61869-2 |
| Insulation | |
| Insulation type | Dry transformer, air insulation |
| Highest voltage (Um) | 0.72kV r.m.s. |
| Rated insulation level | 3kV r.m.s. 50Hz/1 min |
| Environmental Conditions | |
| Reference temperature | 23°C ±1°C |
| Nominal temperature range | –10°C…50°C |
| Limit temperature range for storage | –40°C…85°C |
| Relative humidity | ≤85% non condensing |
| Altitude | ≤1000 meters |
| Housing | |
| Housing material | Fire resistant UL94-V0 |
| Protection degree (IEC/EN60529) | IP40 housing, Terminals IP20 |
| Mounting | Thumb Screw closure, foot mounting |
| Weight | ≥900g |
| Connections | |
| Primary winding | Passing cable |
| Secondary Connections | M4 Screws |
