    RDL 400/5A Split Core Current Transformer (20x30mm Aperture) – Set of 3

    SKU
    RDL-400SCT23
    Rating:
    0%
    (0)
    Reward Points
    :
    110
    £132.00 £110.00
    2 in Stock
    Advice & Support Call 01642 931329 or contact us
    Price Match We won't be beaten, let us know
    RDL 400/5A Split Core Current Transformer

    RDL 400/5A Split Core Current Transformer

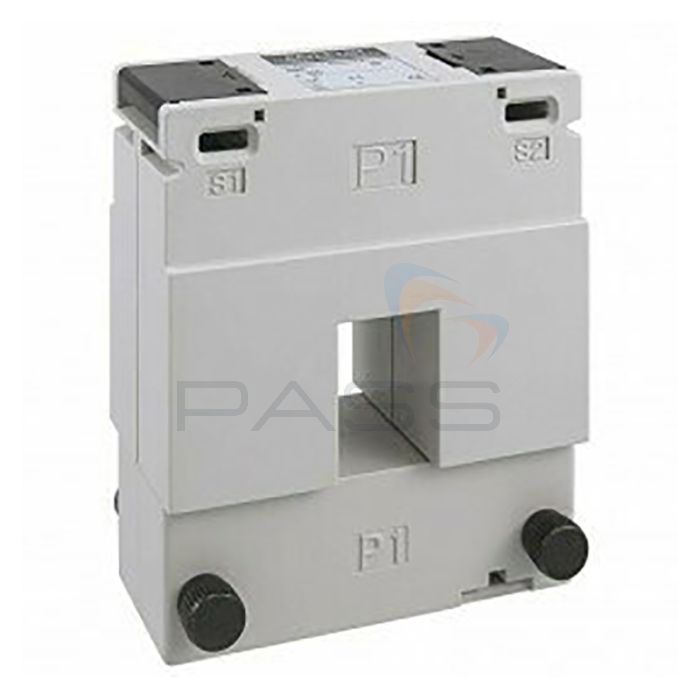

    This set of three RDL 400/5A Split Core Current Transformers is suitable for measuring current flow in commercial, industrial, and utility systems. RDL's split-core single-phase current transformers connect to any standard metering or relay instrument requiring a 5A output and support a primary current input of 400A. Housed in a moulded case, the RDL 400/5A Split Core Current Transformer is 89mm wide and has an aperture of 20x30mm. It is designed to ensure easy installation into existing plants where the removal of busbars or cable lugs would be impractical. To aid with this and minimise installation errors, it features clear markings to indicate the direction of the primary current flow.

    Key Features

    • Spilt-core single-phase current transformer
    • Measure current flow in commercial, industrial, and utility systems
    • Connect to any standard metering or relay instrument requiring a 5A output
    • 400A primary current input
    • Moulded case
    • Width: 89mm
    • Aperture: 20x30mm
    • Easy installation into existing plants
    • Clear markings indicate the primary current flow

    What’s Included?

    • 3x RDL 400/5A Split Core Current Transformer (20x30mm Aperture)

    RDL 400/5A Split Core Current Transformer (20x30mm Aperture) Technical Specifications

    Rated Standard
    Rated Primary Current (Ipr) 400A
    Frequency Range (fR) 47…63Hz
    Rated continuous over current (Icth) 1.2 x rated current
    Rated short time thermal current (Ith ≤60 x Ipr
    Rated dynamic current (Idyn) 2.5Ith
    Instrument security factor (FS) ≤5
    Rated Secondary output 5A
    Accuracy class Class 1 to IEC/EN61869-2
    Insulation
    Insulation type Dry transformer, air insulation
    Highest voltage (Um) 0.72kV r.m.s.
    Rated insulation level 3kV r.m.s. 50Hz/1 min
    Environmental Conditions
    Reference temperature 23°C ±1°C
    Nominal temperature range –10°C…50°C
    Limit temperature range for storage –40°C…85°C
    Relative humidity ≤85% non condensing
    Altitude ≤1000 meters
    Housing
    Housing material Fire resistant UL94-V0
    Protection degree (IEC/EN60529) IP40 housing, Terminals IP20
    Mounting Thumb Screw closure, foot mounting
    Weight ≥750g
    Connections
    Primary winding Passing cable
    Secondary Connections M4 Screws
    RDL 400 5A Split Core Current Transformer (20x30mm Aperture) - Datasheet Datasheets
