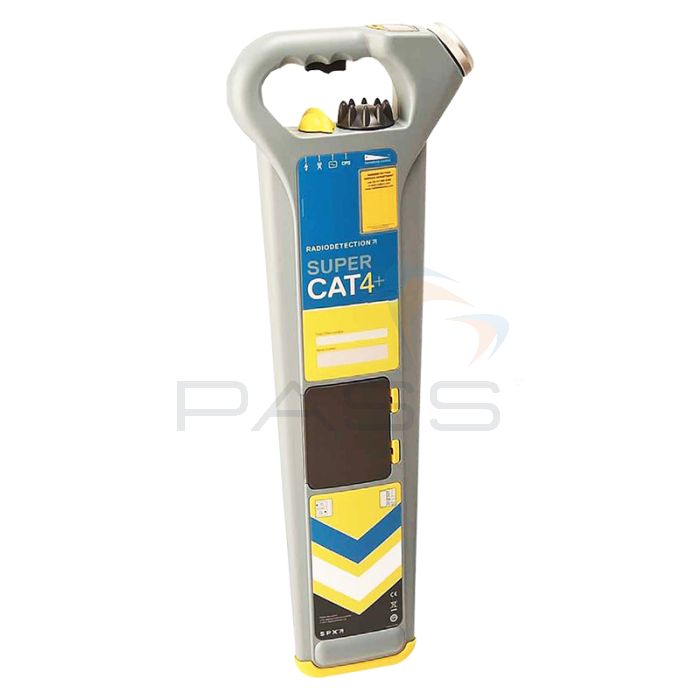

Radiodetection Super C.A.T4+ CPS Locator (Imperial or Metric) - Choice of Kit
- Dynamic Overload Protection
- Dig more safely with StrikeAlert
- Available in metric or imperial
SKU
10/SUPERCAT4+CPS50
The Radiodetection's SuperCAT4+ CPS models are optimised to detect CPS signals to allow the tracing of protected pipelines without disconnecting rectifiers. Optimised for metal pipes including those that use rectified currents as part of their Cathodic Protection System. The CPS signal can be located and traced without the need to apply an additional transmitter signal to the pipeline.
SuperCAT4+ can be used to locate a comprehensive set of active frequencies to support the detection and tracing of different cable types in varied environmental conditions.
The audio signals emitted by the SuperCAT4+ are derived from the signals detected. Radio, Power, and Active signals can be easily distinguished from each other, and background noise helps identification of target utilities, and aids the differentiation of closely co-located utilities.
High levels of electrical interference, as found around substations and near high-voltage transmission cables can overload sensitive electronics. Dynamic Overload Protection filters this interference out, enabling SuperCAT4+ to continue locating where other units struggle.
Key Features
- Safety Built-In
- Dig more safely with StrikeAlert
- Real Sound
- TRUDEPTH
- Dynamic Overload Protection
Product Range
- RD 10/SUPERCAT4+CPS50-I SuperC.A.T4+ CPS Locator - Imperial 50Hz
- RD 10/SUPERCAT4+CPS50-M SuperC.A.T4+ CPS Locator - Metric 50Hz
Safety Built-In
All SuperCAT4+ models come with a range of features designed to aid safe working practices.
Dig more safely with StrikeAlert™
StrikeAlert warns the user of the possible presence of shallow cables and utility lines in both Power and Active Line modes.
Although work practices and guidelines insist power cables are buried below a certain depth, a common cause of cable strikes is unexpectedly shallow cables.
Real Sound
The audio signals emitted by the SuperCAT4+ are derived from the signals detected. Radio, Power, and Active signals can be easily distinguished from each other, and background noise helps identification of target utilities, and aids the differentiation of closely co-located utilities.
Dynamic Overload Protection
High levels of electrical interference, as found around substations and near high-voltage transmission cables can overload sensitive electronics. Dynamic Overload Protection filters this interference out, enabling SuperCAT4+ to continue locating where other units struggle.
TRUDEPTH™
Indicates depth when the locator is oriented correctly above the target cable, pipe, or sonde for the most accurate reading.
Technical Information
Specification
| SuperCAT4+ | ||||
|---|---|---|---|---|
| StrikeAlert | ✔ | |||
| Depth readout* | ✔ | |||
| Dynamic Overload Protection | ✔ | |||
| Passive Modes | ||||
| CPS Locate | ✔ | |||
| Radio Mode | ✔ | |||
| Power Mode 50Hz/60Hz** | ✔ | |||
| Active Locating Using: | T1-512 T1-640 |
|||
| Direct Connection | ||||
| 512/640Hz** | ✔ | |||
| 8kHz | ✔ | |||
| 33kHz | ✔ | |||
| Induction | ||||
| 8kHz | ✔ | |||
| 33kHz | ✔ | |||
- * Choose between M (Metric) or I (Imperial) locator models
- ** Power frequency and corresponding active low frequency set by the model, (50Hz - 640Hz and 60Hz - 512Hz)
