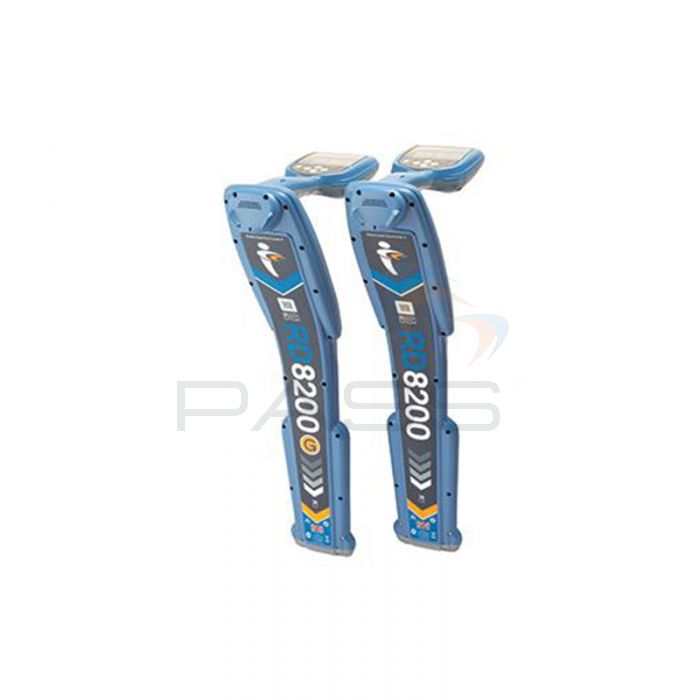

Radiodetection RD8200G Cable & Pipe Locator w/ Usage Logging & GPS - Choice of Battery, Charger & Bag Kits

Prevent damage and improve operational efficiency using Radiodetection’s most advanced and capable precision cable detector, the Radiodetection RD8200G Cable & Pipe Locator. This model differs from its sister product, the Radiodetection RD8200 Cable & Pipe Locator, in that it includes GPS and usage logging capabilities. There are eight versions of the Radiodetection RD8200G Cable & Pipe Locator; these differ in regard to their supplied accessories. Please see the table below for further details.

The Radiodetection RD8200G Cable & Pipe Locator is a rugged, lightweight, and ergonomic cable detector that has been optimised to improve safety, ease of use, accuracy, and reliability.

Industrial Grade Display

Transflective low power LCD technology uses ambient light to improve screen readability and extend the RD8200G Locator’s battery life.

TruDepth Readout

When the Radiodetection RD8200G Cable & Pipe Locator is correctly orientated above the target, it will display an accurate and up-to-the-moment depth measurement.

Swing Warning System

A built-in gyroscope alerts you when there is excessive swing allowing you to keep the Radiodetection RD8200G Cable & Pipe Locator perpendicular to the ground for the most accurate measurement/tracking.

Audio & Vibration Alerts

To ensure the Radiodetection RD8200G Cable & Pipe Locator is suitable for use in noisy environments, it features high-performance audio and vibration alerts. When alerts are triggered, the Radiodetection RD8200G Cable & Pipe Locator’s handle will vibrate ensuring that you don’t miss anything. The waterproof speaker, which faces the user, issues audible alerts at five selectable power output audio levels.

Selt-Test

To improve testing integrity and safety, the Self-Test function verifies that the Radiodetection RD8200G Cable & Pipe Locator’s circuitry, display, and power functions are working correctly.

Current Direction

Use CD signals issued from a Tx-10 Transmitter (sold separately) to identify your target amongst several parallel utilities. CD arrows are displayed on the Radiodetection RD8200G Cable & Pipe Locator, allowing you to confirm that you are tracing the correct line.

Power Filters

The Radiodetection RD8200G Cable & Pipe Locator is ideal for when you are tracing individual power lines through dense networks in areas where transmitters cannot be connected. Its power filters use the harmonic properties of power signals to determine whether they come from one source or several.

Dynamic Overload Protection

To enable use in electrically noisy environments, such as near substations and overhead power lines, the Radiodetection RD8200G Cable & Pipe Locator’s Dynamic Overload Protection technology automatically filters out interference.

Custom Frequencies

The Radiodetection RD8200G Cable & Pipe Locator can be matched to specific telecom networks as up to five additional frequencies can be programmed to the detector, allowing you to pair it with the signals found on your target network.

GPS Positioning

Automatic logging of all locate parameters means the Radiodetection RD8200G Cable & Pipe Locator provides a comprehensive overview of field operations. This data can be exported in KML and Google Maps file formats and can be used as evidence of when and where work was completed. GPS information can also be used by supervisors and health and safety personnel to understand usage patterns and ensure compliance with best practices.

RD Map™+

Using the RD MAP+ function with OPTIONAL GNSS allows you to create detailed maps of buried utilities in real time (requires data connectivity and Google Maps).

Dual Bluetooth Connectivity

A dual Bluetooth system that combines long-range iLOC functionality and low power connectivity ensures the Radiodetection RD8200G Cable & Pipe Locator can be connected to cloud-based data solutions.

The Radiodetection RD8200G Cable & Pipe Locator with GPS & Usage Logging is a comprehensive, easy-to-use, reliable, and accurate cable detector suitable for complex applications such as tracing power lines in congested underground infrastructure.

Radiodetection RD8200G Cable & Pipe Locator Key Features

• Radiodetection’s most advanced and capable precision cable locator with GPS and usage logging
• Prevent damage
• Improve operational efficiency
• Detect and trace buried utility cables and pipes
• Eight versions available that vary in regard to their supplied accessories
• Rugged, lightweight, and ergonomic
• Features and functions improve reliability, precision, ease-of-use, and safety
• Industrial grade display
• TruDepth Readout
• Swing Warning System
• Audio and vibration alerts
• Self-Test function
• Current direction for identifying your target amongst several parallel utilities
• Dynamic overload protection
• Custom frequencies for matching the RD8200G Locator to specific telecom networks
• GPS positioning
• RD Map+ for creating detailed maps of buried utilities (requires data connectivity, Google Maps, and OPTIONAL GNSS)
• Dual Bluetooth Connectivity
• A versatile, precise, and reliable utility cable locator suitable for complex applications

What’s Included?

• Radiodetection RD8200G Cable & Pipe Locator & Your Choice of Accessories
