As compact as classic daytime binoculars, Merger LRF XQ35 is ideal for stalking. Being the lightest in the product line, Merger LRF XQ35 is convenient for searching and pursuing animals. Balanced weight distribution ensures comfortable observation without fatigue during long-duration observation.
The Pulsar PU-77483 has the classic shape of daytime binoculars. Compact design ensures a perfect and comfortable grip while retaining appealing aesthetics and ergonomics. Six functional buttons are placed in convenient spots to grant quick access to the most often-used features.
The Merger LRF XQ35 is equipped with the highly sensitive < 25 mK NETD European-made Lynred sensor which qualitatively captures a useful signal under difficult observation conditions when thermal contrast is low. The smallest temperature differences will be visible during the rain, fog, and high atmospheric humidity at the observation site.
Observation in the dark requires being covert so that hunted animals are not alerted by your presence. Going to stand-by using the Display Off feature is a usual way to prevent backlight from the eyepieces. To simplify this task Merger LRF has a built-in proximity sensor. It acts as a display switch for preventing backlight exposure in the dark. When the unit is taken away from the eyes, the proximity sensor switches both displays off and when the unit is brought closer both displays are switched on offering excellent image quality.

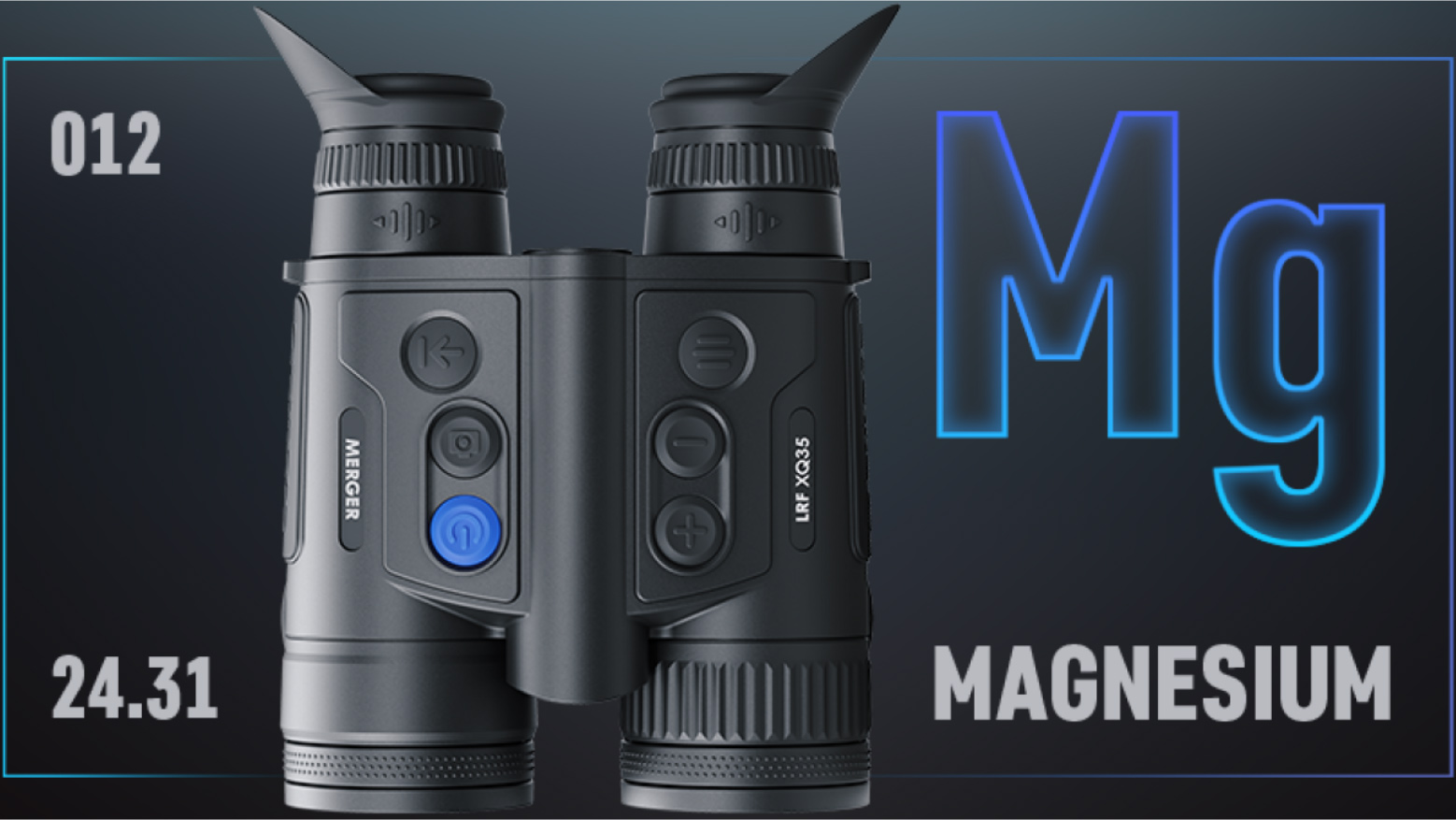

Merger LRF is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat, or cold. At the same time, a metal housing effectively removes the heat from electronics and increases the consistency of the device's operation during long-term observation.
Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meter for quick and error-free assessment of the situation.
The Merger LRF is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees up to 11 hours of battery life. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
Merger LRF XQ35 | ||
---|---|---|
Main | Sensor | 384x288 pix. @ 17 µm (NETD <25 mK) |
Objective Lens | F35 / 1.0 | |
Magnification, x | 3 - 12 (x4 zoom) | |
Field of View (HxV), Degrees / m@100m | 10.7x8 / 18.7x14 | |
Detection Range, m | 1350 | |
Sensor | Type | uncooled |
Resolution, Pixels | 384x288 | |
Pixel Pitch, µm | 17 | |
NETD, mK | <25 | |
Frame Rate, Hz | 50 | |
Optics | Objective Lens | F35 / 1.0 |
Magnification, x | 3 - 12 | |
Field of View (HxV), Degrees / m@100m | 10.7x8 / 18.7x14 | |
Interpupillary Distance Adjustment, mm | 62 - 74 | |
Eye Relief, mm | 15 | |
Display | Type | AMOLED HD |
Resolution, Pixels | 1024x768 | |
Range Performance | Detection Range, m | 1350 |
Laser Rangefinder | Safety Class for Laser Equipment according to IEC 60825-1:2014 | 1 |
Wavelength, nm | 905 | |
Max. Measuring Range, m | 1000 | |
Measurement Accuracy, m | ± 1 | |
Video Recorder | Video / Photo Resolution, Pixel | 1024x768 |
Video / Photo Format | .mp4 / .jpg | |
Built-in Memory, GB | 16 | |
Wi-Fi | Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) | |
Frequency, GHz | 2.4 / 5 | |
Environmental Characteristics | Degree of protection, IP code (IEC60529) | IPX7 (waterproof) |
Operating temperature range, °С | -25 +50 | |
Connections and Compatibilities | Mount, Type | 1/4" socket |
Supported Application | Stream Vision 2 | |
Power Supply | Output Voltage, V | 3.7 |
Battery Type | Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal) |
|
Capacity, mAh | 3200 (external) + 4000 (internal) | |
Operating Time on Battery Pack (at t=22°C), h * | 11 | |
External Power Supply, V | 5V, 9V (USB Type-C Power Delivery) | |
Size | Body Material | Magnesium alloy |
Dimensions, mm | 181x133x68 |
