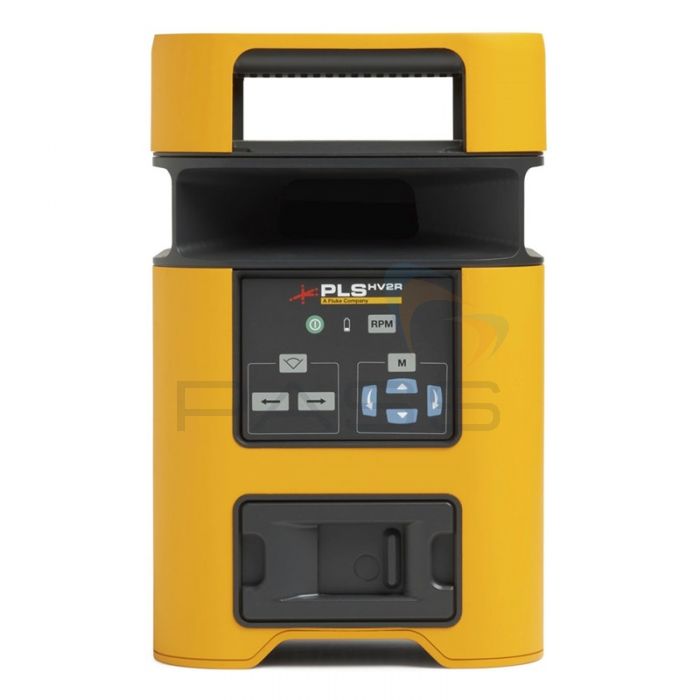

PLS HV2R Manual Rotary Laser Red Beam

All Fluke Products
    • Horizontal and vertical laser plane
    • IP67 dustproof and water resistant
    • Self-leveling
    SKU
    PLS HV2R
    MPN
    5022501

    Read More

    View All Distance Meters & Laser Levels

    There are 3 options of the PLS HV2R Horizontal Rotary Laser available, please select from the dropdown:

    • PLS HV2R Z - Manual Slope Red Rotary Laser Bare Tool
    • PLS HV2R SYS - Manual Slope Red Rotary Laser System
    • PLS HV2R KIT -  Manual Slope Red Rotary Laser Kit

    The PLS HV2R Manual Rotary Laser (made by Fluke) is a self-levelling laser system that produces both horizontal and vertical laser planes with an accuracy of ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) and a slope range of ± 5-degrees for increased precision.

    The professional grade laser can be used for many applications including setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation and can be used by general contractors, electricians, plumbers, and landscapers with ease.

    With a battery life of up to 60 hours, the rotary laser will perform all day onsite, and with the robust durable design, which has been drop tested up to 1m and with an IP rating of 67, making it dustproof and water immersible up to 1m, the PLS HV2R delivers the accuracy, ruggedness, and dependability you would expect from a fluke company.

    Applications

    • Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
    • Short-Range Levelling for Decks, Patios & Swimming Pools
    • Installation/Levelling Interior Walls
    • Installation/Levelling Ceiling Grids
    • Plumb Reference
    • Short-Run Vertical Alignment

    Key Features

    • Range from 100 up to 1,000 feet with the XLD laser detector
    • Bright class 2 red laser
    • Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    • Self-levelling within ±5 degrees
    • Horizontal and vertical laser plane
    • Manual slope range: ±5 degrees
    • Scanning Modes
    • Can be used with RC2 remote control – sold separately
    • Professional-grade - ideal for use by general contractors
    • Drop-resistant up to 1m
    • IP67 dustproof and water resistant up to 1m for up to 30 minutes
    • Battery life up to 60 hours and can use NiMH rechargeable batteries
    • 3-year warranty

     What’s Included?

    PLS HV2R Z

    • PLS HV2R rotary laser
    • BP10 Alkaline battery tray

    PLS HV2R Laser System includes everything above plus:

    • RBP10 NiMH rechargeable battery tray
    • BC20 Universal charging cord
    • RC2 Remote control
    • XLD Rotary laser detector with clamp
    • WCB10 Rotary wall and ceiling mount
    • RRT4 Red reflective target

    PLS HV2R Laser Kit includes everything above plus:

    • TPOD500 Elevator tripod
    • GR16 Grade rod
    £739.90
    £887.88 inc vat
    Free Delivery*
    Important Notice
    This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
    739 Reward Points 60 Days Return

    Ask An Expert
    Price Match
    Technical Information
    Specification

    PLS HV2R Rotary Laser Specification

    Laser Class II red
    Laser axis Horizontal and Vertical
    Accuracy ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    Auto-leveling range ± 5-degrees
    Manual slope range ± 5-degrees
    Working range Without XLD laser detector ≤ 30 m (100 ft)
    Working range With XLD laser detector ≤ 300 m (1000 ft)
    Weight 3 kg (6.6 lb)
    Drop test 1 m
    IP rating IP67
    Operating temperature -20 °C to 50 °C (-4 °F to 122 °F)
    Battery 4 x D Alkaline or NiMH rechargeable
    Battery life > 60 hours
    Document Downloads
    PLS H2 - Datasheet Datasheet
    Additional Information
    SKU
    PLS HV2R
    Manufacturer Part Code
    5022501
