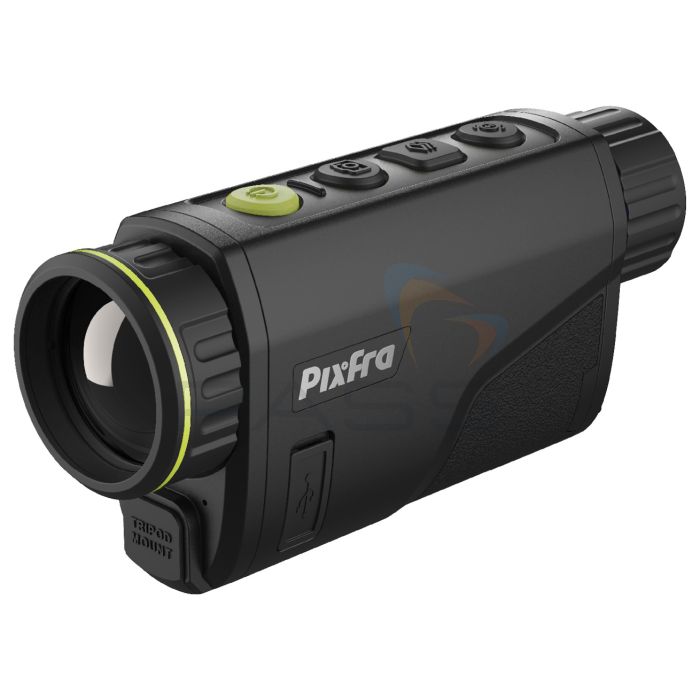

Pixfra Arc A4XX Thermal Imaging Monocular (50Hz), 384x288px
- Left and right-hand design
- F1.0 - 19mm, 25mm, and 35mm lenses
- 384x288 resolution
SKU
PIX-PFI-A4XX
These Pixfra Arc monoculars have a 12μm thermal detector with a 384x288 resolution, paired with F1.0 lenses of varying focal lengths (19mm for A419, 25mm for A425, and 35mm for A435). This results in powerful detection ranges of 1000m, 1300m, and 1800m, respectively.
They are lightweight and have a magnesium alloy body, a comfortable button layout and body shape, a full-colour 1440x1080 OLED display, and around seven hours of battery life. The monoculars operate in -30°C to +50°C temperatures and have an IP67 waterproof rating.
The Arc series also supports simultaneous streaming to up to four smart devices via the Pixfra Outdoor App, with a connection range of up to 20 metres.
Key Features
- Vanadium oxide uncooled focal plane detector
- Rugged Mg housing
- FHD OLED display
- Replaceable 18650 battery
- High optical magnification
- Left and right-hand user-friendly design
- Built-in EMMC (32 GB)
- Lightweight and portable
- IP67 rated
- F1.0 - 19mm, 25mm, and 35mm lenses
- 384x288 resolution
What's Included?
- Choice of monocular
- Type-C Cable
- Camera Pouch
- Lanyard
- Wristband
- Quick Start Guide
- Legal and Regulatory Information
- Pixfra Warranty Card
Product Range
- Pixfra Arc A419 Thermal Imaging Monocular, 19mm
- Pixfra Arc A425 Thermal Imaging Monocular, 25mm
- Pixfra Arc A435 Thermal Imaging Monocular, 35mm
Technical Information
Specification
| A419 | A425 | A435 | |
|---|---|---|---|
| Thermal Sensor | 384x288, 12μm, <30mK NETD | ||
| Detector Type | Vanadium oxide uncooled focal plane detector | ||
| Spectral Range | 8μm~14μm | ||
| Frame Rate | 50 Hz | ||
| Objective Lens | 19mm f1.0 | 25mm f1.0 | 35mm f1.0 |
| Field of View | H: 14.4°; V: 10.8° | H: 10.9°; V: 8.2° | H: 7.8°; V: 5.9° |
| Detection Range | 1000m | 1300m | 1800m |
| Magnification | 2.1x | 2.76x | 1.68x |
| Colour Palettes | 6 (white hot/black hot /iron red/ alarm/amber/emerald) | ||
| Close Focus Distance | 2m | ||
| Digital Zoom | 1x, 2x, 4x, 8x | ||
| Display Screen Dimensions | 0.41 inch, OLED | ||
| Screen Resolution | 1440 x 1080 | ||
| Diopter | -4D ~ +5D | ||
| Eye Relief | 15mm | ||
| Uniformity Correction | Auto; Manual | ||
| Storage | Built-in EMMC (32 GB) | ||
| Audio Recording | Yes | ||
| Hot Spot Trace | Yes | ||
| Wi-Fi | Yes | ||
| Power Supply | 5 V Type-C | ||
| Battery Type | 1 rechargeable Lithium battery | ||
| Battery Capacity | 3,200 mAh | ||
| Battery Operating Life | Up to 7.5h | ||
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) | ||
| Storage Temperature | -30 °C to +70 °C (-22 °F to +158 °F) | ||
| Protection | IP67 | ||
| Product Dimensions | 148.5 mm x 42.3 mm x 74.3 mm (5.85″ x 1.67″ x 2.93″) (L x W x H) | 151.8 mm x 42.3 mm x 74.3 mm (5.98″ x 1.67″ x 2.93″) (L x W x H) | |
| Net Weight | ≤330 g (0.73 lb)(battery excluded) | ≤340 g (0.75 lb)(battery excluded) | |
Document Downloads
Pixfra Arc A419 Thermal Imaging Monocular Datasheet
Pixfra Arc A425 Thermal Imaging Monocular Datasheet
Pixfra Arc A435 Thermal Imaging Monocular Datasheet
Pixfra Arc Thermal Imaging Monocular - Quick Start Guide
Pixfra Arc Thermal Imaging Monocular - User Manual
Pixfra Arc Thermal Imaging Monocular Brochure
