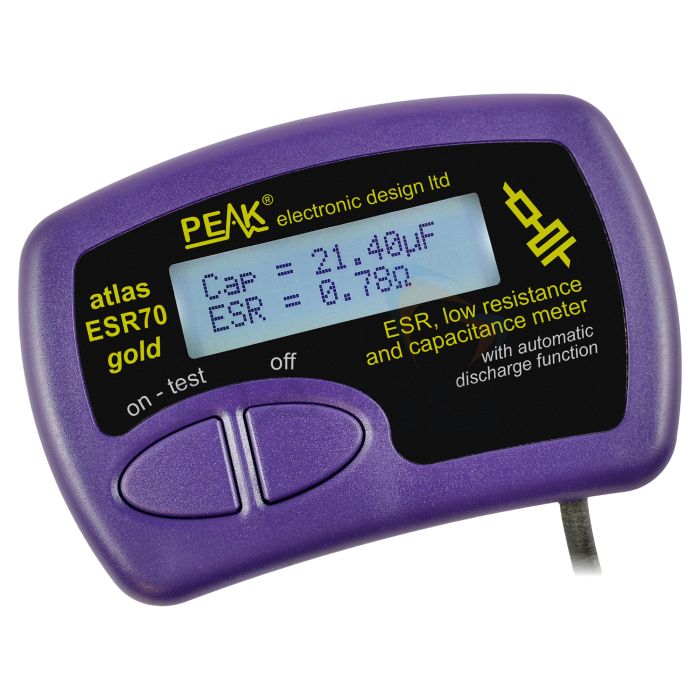

Peak Electronics Atlas ESR70 Gold Capacitor Analyser

All Peak Electronics Products
  • Detailed analysis of capacitors
  • Portable, palm-sized design
  • Measures ESR values
SKU
ESR70
MPN
ESR70

Read More

View All Component Analysers

Suitable for use with any capacitor type from 0.3μF to 90,000μF, including motor capacitors, smoothing capacitors, electrolytics, polypropylene, and any other dielectric capacitor type, this unique instrument identifies components and gives the user detailed information about the capacitors' status.

The Peak Atlas ESR Gold is an enhanced version of the previous Peak Atlas ESR Plus. It provides instant measurement of a capacitor's ESR and its capacitance value. Using the supplied gold-plated probes (removable), the Peak Atlas ESR Gold can measure ESR down to a resolution of 0.01Ω, up to 40Ω. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2mm compatible probes to be fitted. Audible alerts are produced for various ESR levels, allowing you to perform many tests in succession without having to look at the display.

To use, connect the supplied test leads directly to the component in any configuration. The ESR70 will then automatically identify the type of capacitor connected (and is suitable even for in-circuit capacitors), measure the equivalent series resistance (ESR) and give detailed information on capacitor status.

Peak Electronics Atlas ESR70 Gold Capacitor Analyser Key Features

  • Measures capacitance and ESR
  • Suitable for use with any capacitor type between 0.3μF to 90,000μF
  • Automatically starts analysis when the ESR70 is connected
  • New enhanced dynamic range of 0 to 40Ω
  • Audible alerts with different tones for various ESR levels
  • ESR resolution down to 0.01Ω
  • Capable of in-circuit measurements
  • Polarity free - make a connection any way round
  • Great for low DC resistance checking
  • Supplied complete with 2mm male test leads and 2mm compatible gold-plated crocs
  • Test leads are ultra-durable and 45cm (18") long with 2mm plugs
  • Enhanced software compensation of cable resistance
  • Comes with a comprehensive user guide
  • Triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements
  • 10x faster capacitance measurement for large capacitors
  • Improved LCD with better backlight

What's Included?

  • ESR70 - Equivalent Series Resistance Meter
  • Extra-long and extra-flexible test cables (450mm of silicone-covered cable)
  • 2mm plugs and sockets with removable gold-plated crocodile clips
  • Comprehensive illustrated user guide
  • AAA Alkaline cell
£72.00
£86.40 inc vat
5 in Stock: Available Next Working Day*
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
72 Reward Points 60 Days Return

Ask An Expert
Price Match
Technical Information
Specification
Parameter  Minimum  Typical  Maximum   Notes
Peak Test Current into S/C    ±20mA  ±22mA
Peak Test Voltage, Full Scale ESR   ±40mV ±44mV
Peak Test Voltage across O/C   ±2.5V ±3.0V
Capacitance Measurement Range 0.3μF   90,000μF
Capacitance Accuracy ±4%±0.2μF
ESR Measurement Range   40Ω  2
ESR Resolution for ESR<2Ω  0.01Ω   0.02Ω
ESR Resolution ESR>2Ω  0.1Ω   0.2Ω
ESR Accuracy for ESR<2Ω  ±2%±0.02Ω
ESR Accuracy for ESR >2Ω   ±2%±0.2Ω
Abuse Voltage (for C<10μF)      ±275V  3
Abuse Voltage (for C>10μF)      ±50V 3
Auto-Discharge Voltage Limit       ±50V
Battery Type  MN21/GP23A 12V Alkaline
Battery Voltage Range  8.5V 12V
 Battery Voltage Warning Threshold     8.5V
Inactivity Power-Down Period  30 seconds
Dimensions (excl. Test Leads)  103 x 70 x 20mm
Operating Temperature Range 15°C   35°C

1. Subject to acceptable LCD visibility.
2. Subject to revision.
3. Maximum abuse voltage is the limit of protection electronics.
Probes, leads and unit are not certified for high voltage use.
