Opticon OPN-2006 Bluetooth Barcode Scanner (Seaward Apollo)
This barcode scanner is ideal for use with Seaward's Apollo 400, Apollo 500 and Apollo 600 PAT testers.
Designed for high performance scanning, the Opticon OPN-2006 scanner is Bluetooth-enabled for wireless data transfer, powered by rechargeable batteries with low power consumption, lightweight and is fully user-programmable.
In PAT testing applications, the OPN-2006 can be used to easily scan barcode labels to transfer data across to the tester as needed. It's also fully suitable for use in other applications such as sales and services, retail point-of-sale (POS), inventory management, asset tracking, visitor registration and inventory.

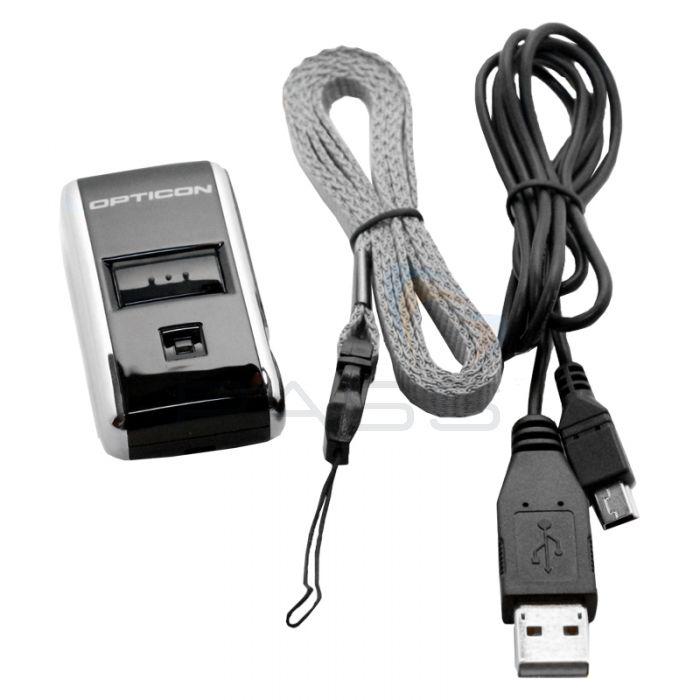

The scanner is supplied as standard with a USB cable and neck strap.
Opticon OPN-2006 Barcode Scanner Key Features
- Bluetooth 3.0 wireless communication
- Ideal for use with Seaward Apollo series PAT testers
- Real-time scanning and transmission to Android, Apple, Blackberry, Windows mobile and more
- Small sized and lightweight
- Rechargeable battery with low power consumption
Opticon OPN-2006 Technical Specifications
| Operation | |
|---|---|
| CPU | 23 bit |
| Operating System | Proprietary |
| Software | 4 applications available (also programmable C-language. Free software development kit with free RX compiler) |
| RTC | Supports year, month, day, hour, minute, second (leap year supported) |
| Memory | |
| Flashrom | 512kB |
| RAM | 96kB |
| External Flashrom | 1MB |
| Operating Indicators/Keys | |
| Visual | Multi-colour LED (red/green/orange/blue) |
| Non-Visual | Buzzer |
| Entry Options (Operating Keys) | 2 keys total, 1 function key, 1 scan key |
| Communication | |
| USB | Mini USB, Ver. 1.1, USB-VCP (USB-HID and USB-MSD on request) |
| Bluetooth | Ver 3.0, SPP, HID, 1 to 1 connection, master and slave mode, authentication and encryption |
| Power | |
| Rechargeable Battery | Lithium-ion polymer 3.7V 240mAh |
| Operating Time (Batch) | 4500 scans (1 scan/5 sec) |
| Operating Time (Batch, Idle) | 2 months |
| Operating Time (Bluetooth) | 3500 scans (1 scan/5 sec) |
| Operating Time (Bluetooth, Idle) | 27 hours |
| Data Retention Time | Indefinite |
| Charging Method | Enclosed USB cable |
| Barcode Scanner Optics | |
| Light Source | 650nm visible laser diode |
| Scan Method | Vibrating mirror |
| Scan Rate | 100 scans/sec |
| Reading Pitch Angle | -25 to 0°, 0 to +25° |
| Reading Skew Angle | -40 to 8°, +8 to 40° |
| Reading Tilt Angle | -20 to 0°, 0 to +20° |
| Curvature | R>15mm (EAN8), R>20mm (EAN13) |
| MIN PCS Value | 0.45 |
| Depth of Field | At PCS 0.9 UPC 70-550mm/ 2.76 to 21.65 inches (1.0mm/39mil) 50 to 380mm / 1.97 to 14.96 inches (0.5mm/20mil) 50 to 230mm / 1.97 to 9.06 inches (0.25mm/10mil) 50 to 130mm / 1.97 to 5.12 inches (0.15mm/6mil) 2.36 to 4.33 inches (0.127mm/5 mil) |
| Supported Symbologies | |
| Barcode (1D) | JAN/UPC/EAN incl add on Codabar/NW-7 Code 11 Code 39 Code 93 Code 128 GS1-128 (EAN-128 GS1 DataBar (RSS) IATA Industrial 2of5 ISBN-ISMN-ISNN Matrix 2of5 MSI/Plessey-UK/Plessey S-Code Telepen Tri-Optic |
| Postal Code | Chinese post Korean postal authority code |
| 2D Code | GS1 stacked |
Reviews
Additional Information
| SKU | PASSPTA39 |
|---|---|
| Manufacturer Part Code | 13336(S) |
