Built for sophisticated, professional weighing
Application
Weighing, percent weighing, parts counting, check weighing, dynamic/animal weighing, filling, totalization, formulation, fill weight variation, differential weighing, density determination, peak hold, pipette adjustment, SQC.
Display
Full-colour VGA graphic display (diagonal 5.7”/145mm), detachable, 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data.
Operation
AC Adapter (included).
Communication
Easy access communication ports including 2 units of USB port, RS232, and an optional 4th Ethernet port, GLP/GMP data output with real-time clock, Direct Data Transfer, print to a USB drive.
Construction
Metal base, ABS top housing, stainless steel pan, anti-static glass draft shield with flip-top door, replaceable in-use cover, automatic doors on specific models.
Features
AutoCal fully-automatic internal adjustment system equipped with 2 internal adjustment weights, routine test, and minimum weight determination, fast stabilization time, four touchless sensors, built-in ionizer with automatic doors models, up to 14 operating languages, approved models available, save to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.
Explorer's weighing cells precision-machined from a solid metal block, together with AutoCal provide exceptional accuracy and durability suitable for laboratory and industrial environments.
Features such as four-level user management with password protection, and an un-editable system log plus a high level of configurability make Explorer balances well-suited for regulated applications.
A detachable terminal with a large colour touchscreen, programmable IR sensors, optional built-in Ionizer & automatic doors, and a frameless draft shield make Explorer balances easy & convenient to use.
Datasheets
Manuals & Guides

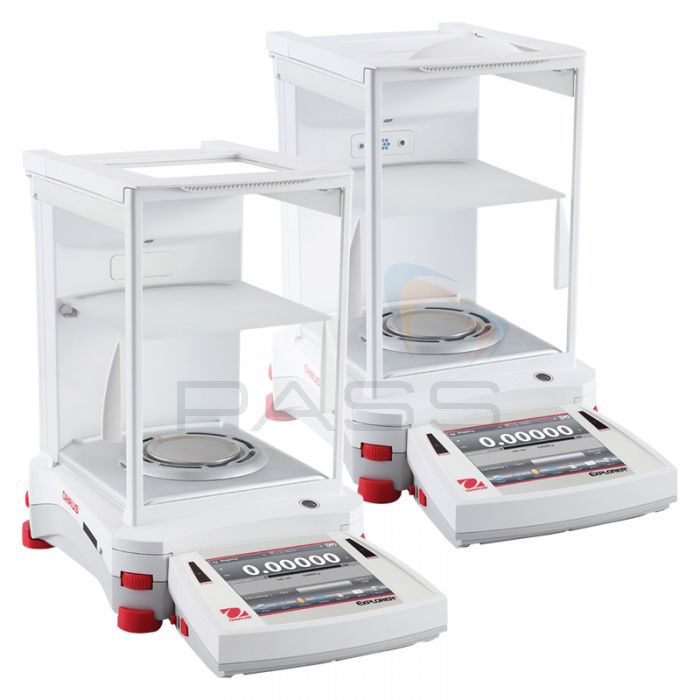

Ohaus Explorer Semi Micro Balance
Built for sophisticated, professional weighing.
SKU | Name | EC Type Approved | Auto Door | Ionizer | AutoCal™ | Capacity | Readability (d) | (e) | Platform | Cal. Weight, Class | Draftshield |
---|---|---|---|---|---|---|---|---|---|---|---|
OH-30218998 | EX125D | - | - | - | ✓ | 52g/120g | 0.01mg/ 0.1mg | - | Ø80mm | 100g, E2 | ✓ |
OH-30218999 | EX125 | - | - | - | ✓ | 120g | 0.01mg | - | Ø80mm | 100g, E2 | ✓ |
OH-30219000 | EX225D | - | - | - | ✓ | 120g/220g | 0.01mg/ 0.1mg | - | Ø80mm | 200g, E2 | ✓ |
OH-30219001 | EX225D/AD | - | ✓ | ✓ | ✓ | 120g/220g | 0.01mg/ 0.1mg | - | Ø80mm | 200g, E2 | ✓ |
OH-30219002 | EX225/AD | - | ✓ | ✓ | ✓ | 220g | 0.01mg | - | Ø80mm | 200g, E2 | ✓ |
OH-30139515 | EX125DM | ✓ | - | - | ✓ | 52g/120g | 0.01mg/ 0.1mg | 1mg | Ø80mm | 100g, E2 | ✓ |
OH-30139516 | EX125M | ✓ | - | - | ✓ | 120g | 0.01mg | 1mg | Ø80mm | 100g, E2 | ✓ |
OH-30139517 | EX225DM | ✓ | - | - | ✓ | 120g/220g | 0.01mg/ 0.1mg | 1mg | Ø80mm | 200g, E2 | ✓ |
OH-30139518 | EX225DM/AD | ✓ | ✓ | ✓ | ✓ | 120g/220g | 0.01mg/ 0.1mg | 1mg | Ø80mm | 200g, E2 | ✓ |
OH-30139519 | EX225M/AD | ✓ | ✓ | ✓ | ✓ | 220g | 0.01mg | 1mg | Ø80mm | 200g, E2 | ✓ |
Reviews
SKU | EXPLORER-SM |
---|
