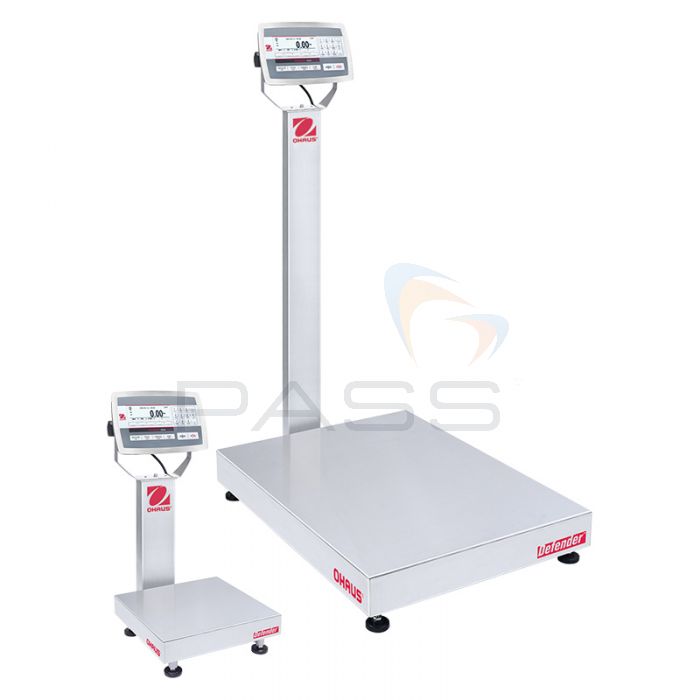

Ohaus Defender 5000 Hybrid D52 Bench Scales (3kg / 6kg - 300kg / 600kg) - Choice of Model
- Easy-to-use keypad
- Large backlit display
- Supports a 50,000-item library
- Stainless steel platform
SKU
DF5000-HY
Multifunctional Bench Scale for Standard Industrial Applications
Application
Weighing, parts counting, percent weighing, check weighing, dynamic weighing (display hold), and filling.
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels.
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory).
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock.
Construction
IP68 stainless steel indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, IP67 aluminium load cell, non-slip adjustable rubber feet.
Features
User-configurable resolution up to dual range 15,000d/3,000e, 150% overload capacity protection, check weighing symbols with the selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and Auto-print settings, auto tare.
A user-friendly model with an easy-to-use keypad, a large backlit display, and plain text on-screen prompts which guide you through the operation. Durable construction with a stainless steel platform, sand gray powder-coated steel frame & aluminum load cell. Defender meets OIML/EC type approvals.
Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Includes GMP/GLP with time/date for result traceability.
Technical Information
Specification
Ohaus Defender 5000 Hybrid Series
Multifunctional Bench Scale for Standard Industrial Applications.
| SKU | Name | EC Type Approved | Capacity | Readability (d) | Readability (e) | Platform | Column |
|---|---|---|---|---|---|---|---|
| OH-30444831 | D52XW6RQDR1-GB | - | 3kg / 6kg | 0.2g / 0.5g | - | 305mm x 305mm | 350mm |
| OH-30444832 | D52XW15RQDR1-GB | - | 6kg / 15kg | 0.5g / 1g | - | 305mm x 305mm | 350mm |
| OH-30444833 | D52XW15RQDL2-GB | - | 6kg / 15kg | 0.5g / 1g | - | 400mm x 400mm | 680mm |
| OH-30444834 | D52XW30RQDL2-GB | - | 15kg / 30kg | 1g / 2g | - | 400mm x 400mm | 680mm |
| OH-30444835 | D52XW60RQDL2-GB | - | 30kg / 60kg | 2g / 5g | - | 400mm x 400mm | 680mm |
| OH-30444836 | D52XW60RQDX2-GB | - | 30kg / 60kg | 2g / 5g | - | 500mm x 500mm | 680mm |
| OH-30444837 | D52XW150RQDX2-GB | - | 60kg / 150kg | 5g / 10g | - | 500mm x 500mm | 680mm |
| OH-30444838 | D52XW60RQDV3-GB | - | 30kg / 60kg | 2g / 5g | - | 610mm x 610mm | 980mm |
| OH-30444839 | D52XW150RQDV3-GB | - | 60kg / 150kg | 5g / 10g | - | 610mm x 610mm | 980mm |
| OH-30444840 | D52XW300RQDV3-GB | - | 150kg / 300kg | 10g / 20g | - | 610mm x 610mm | 980mm |
| OH-30444841 | D52XW150RTDV3-GB | - | 60kg / 150kg | 5g / 10g | - | 800mm x 600mm | 980mm |
| OH-30444842 | D52XW300RTDV3-GB | - | 150kg / 300kg | 10g / 20g | - | 800mm x 600mm | 980mm |
| OH-30444843 | D52XW600RTDV3-GB | - | 300kg / 600kg | 20g / 50g | - | 800mm x 600mm | 980mm |
| OH-30461579 | D52XW6RQDR1-M | ✓ | 3kg / 6kg | - | 1g / 2g | 305mm x 305mm | 350mm |
| OH-30461580 | D52XW15RQDR1-M | ✓ | 6kg / 15kg | - | 2g / 5g | 305mm x 305mm | 350mm |
| OH-30461581 | D52XW15RQDL2-M | ✓ | 6kg / 15kg | - | 2g / 5g | 400mm x 400mm | 680mm |
| OH-30461582 | D52XW30RQDL2-M | ✓ | 15kg / 30kg | - | 5g / 10g | 400mm x 400mm | 680mm |
| OH-30461583 | D52XW60RQDL2-M | ✓ | 30kg / 60kg | - | 10g / 20g | 400mm x 400mm | 680mm |
| OH-30461584 | D52XW60RQDX2-M | ✓ | 30kg / 60kg | - | 10g / 20g | 500mm x 500mm | 680mm |
| OH-30461585 | D52XW150RQDX2-M | ✓ | 60kg / 150kg | - | 20g / 50g | 500mm x 500mm | 680mm |
| OH-30461586 | D52XW60RQDV3-M | ✓ | 30kg / 60kg | - | 10g / 20g | 610mm x 610mm | 980mm |
| OH-30461587 | D52XW150RQDV3-M | ✓ | 60kg / 150kg | - | 20g / 50g | 610mm x 610mm | 980mm |
| OH-30461588 | D52XW300RQDV3-M | ✓ | 150kg / 300kg | - | 50g / 100g | 610mm x 610mm | 980mm |
| OH-30461589 | D52XW150RTDV3-M | ✓ | 60kg / 150kg | - | 20g / 50g | 800mm x 600mm | 980mm |
| OH-30461590 | D52XW300RTDV3-M | ✓ | 150kg / 300kg | - | 50g / 100g | 800mm x 600mm | 980mm |
| OH-30461591 | D52XW600RTDV3-M | ✓ | 300kg / 600kg | - | 100g / 200g | 800mm x 600mm | 980mm |
Document Downloads
Ohaus Defender 5000 Standard D52 Bench Scale Column Mount Datasheet
Ohaus Defender 5000 Standard D52 Bench Scale Front Mount Datasheet
Ohaus Defender 5000 Indicator Manual
Ohaus Defender 5000 Base Manual
